Boundary conditions¶

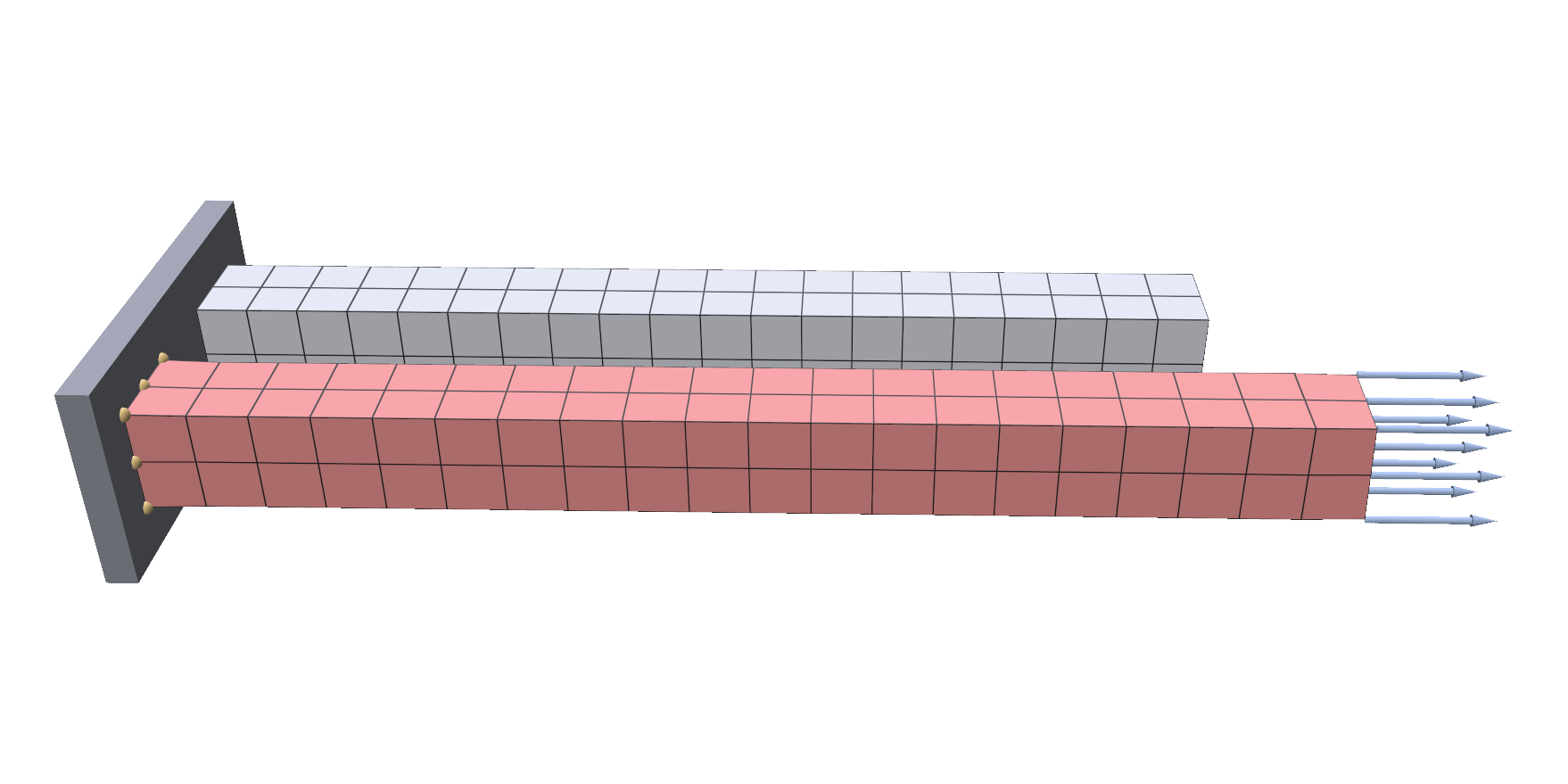

"""Surface load: a bar clamped at one end and pulled by a traction on the other.

A hex (or tet) bar is clamped on its x = 0 face and carries a traction (force
per unit area, Pa) on its x = 1 end face. The traction is a *dead load*: it
keeps its world direction and acts on the faces' rest area, like gravity acts
on the body's mass.

`attach_surface_load` puts the load on the end faces, starting at zero, and
returns a handle to it. The run ramps the load up to its full value with
`set_tractions` on that handle, stretching the bar a little further each step. Each step solves for static equilibrium (no
inertia) with gravity off, so the stretch is the load's doing alone.

Usage:
    python examples/boundary_conditions/fem_surface_load.py              # polyscope
    python examples/boundary_conditions/fem_surface_load.py --no-viewer  # print the stretch
    python examples/boundary_conditions/fem_surface_load.py --element tet
"""

from __future__ import annotations

import argparse
import sys
from pathlib import Path

import numpy as np

import trusty

sys.path.insert(0, str(Path(__file__).resolve().parent.parent))
from utils import init_polyscope  # noqa: E402

BAR_SIZE = (1.0, 0.1, 0.1)
BAR_RES = (20, 2, 2)
TRACTION_MAX = 1.0e5  # Pa in +x, the fully ramped end traction
SOLIDS = {"hex": (trusty.make_beam_hex_mesh, trusty.fem.add_hex_solid),
          "tet": (trusty.make_beam_tet_mesh, trusty.fem.add_tet_solid)}


def end_faces(world, body, x):
    """Indices of the body's surface triangles that lie on the plane at `x`."""
    tris = np.asarray(trusty.fem.read_surface_triangles(world, body))
    verts = np.asarray(trusty.fem.read_positions(world, body))
    on_plane = np.all(np.abs(verts[tris, 0] - x) < 1e-9, axis=1)
    return np.flatnonzero(on_plane).tolist()


def build_world(backend: str = "auto", element: str = "hex"):
    make_mesh, add_solid = SOLIDS[element]
    world = trusty.World(backend=backend,
                         time_stepping="static",   # solve for the equilibrium each step
                         gravity=(0.0, 0.0, 0.0))  # the load is the only force

    mesh = make_mesh(size=BAR_SIZE, res=BAR_RES)
    material = trusty.StableNeoHookean(youngs_modulus=1e6, poisson_ratio=0.3)
    body = add_solid(world, mesh, material, density=1000.0)

    trusty.fem.pin_face(world, body, axis=0, coord=0.0)  # clamp the x = 0 end

    load_faces = end_faces(world, body, x=BAR_SIZE[0])   # triangles on the x = 1 end
    load = trusty.boundary_conditions.attach_surface_load(
        world, body, load_faces, np.zeros((len(load_faces), 3)))  # Pa, one row per face
    return world, body, load, mesh


def traction_at(step: int, steps: int) -> float:
    return TRACTION_MAX * min(1.0, (step + 1) / max(1, steps))


def ramp(world, load, step: int, steps: int):
    """Set this step's traction on every loaded face, then advance."""
    n = trusty.boundary_conditions.num_loaded_faces(world, load)
    t = np.tile([traction_at(step, steps), 0.0, 0.0], (n, 1))
    trusty.boundary_conditions.set_tractions(world, load, t)
    world.step()


def _register(ps, world, body, mesh, element):
    x = np.asarray(trusty.fem.read_positions(world, body)).copy()
    cells = {"hexes": np.asarray(mesh.hexes)} if element == "hex" else \
        {"tets": np.asarray(mesh.tets)}
    ps_mesh = ps.register_volume_mesh("bar", x, **cells)
    ps_mesh.set_edge_width(1.0)
    return ps_mesh


def run_polyscope(world, body, load, mesh, element, steps):
    ps = init_polyscope(headless=False)
    ps_mesh = _register(ps, world, body, mesh, element)
    state = {"i": 0, "playing": False}   # play starts OFF

    def callback():
        import polyscope.imgui as psim
        _, state["playing"] = psim.Checkbox("play", state["playing"])
        psim.SameLine()
        if (psim.Button("step") or state["playing"]) and state["i"] < steps:
            ramp(world, load, state["i"], steps)
            state["i"] += 1
            ps_mesh.update_vertex_positions(trusty.fem.read_positions(world, body))
        t = traction_at(state["i"] - 1, steps) if state["i"] else 0.0
        psim.Text(f"step {state['i']} / {steps}   traction_x = {t:.0f} Pa")

    ps.set_user_callback(callback)
    ps.show()


def run_headless(world, body, load, mesh, steps):
    rest = np.asarray(mesh.vertices)
    for i in range(steps):
        ramp(world, load, i, steps)
        if not world.last_report().converged:
            raise SystemExit(f"step {i}: the solve did not converge")
    x = np.asarray(trusty.fem.read_positions(world, body))
    tractions = trusty.boundary_conditions.tractions(world, load)

    def mean_dx(xref):
        on = np.abs(rest[:, 0] - xref) < 1e-9
        return float((x[on, 0] - rest[on, 0]).mean())

    area = BAR_SIZE[1] * BAR_SIZE[2]
    print(f"end traction {tractions[0, 0]:.0f} Pa on {len(tractions)} faces "
          f"= {tractions[0, 0] * area:.0f} N in total")
    print(f"loaded (x = 1) end moved {mean_dx(BAR_SIZE[0]):+.4f} m")
    print(f"clamped (x = 0) end moved {mean_dx(0.0):+.4f} m")
    if mean_dx(BAR_SIZE[0]) < 1e-3 or abs(mean_dx(0.0)) > 1e-9:
        raise SystemExit("the bar did not stretch, or the clamp moved")
    print("OK: the bar stretched under the end traction; the clamp held.")


def main():
    parser = argparse.ArgumentParser(description=__doc__.split("\n")[0])
    parser.add_argument("--backend", choices=["auto", "cpu", "accelerate", "cuda"], default="auto")
    parser.add_argument("--element", choices=list(SOLIDS), default="hex")
    parser.add_argument("--steps", type=int, default=20,
                        help="load increments to reach the full traction")
    parser.add_argument("--no-viewer", action="store_true",
                        help="headless: ramp the load, then print the stretch")
    args = parser.parse_args()

    world, body, load, mesh = build_world(args.backend, args.element)
    if args.no_viewer:
        run_headless(world, body, load, mesh, args.steps)
    else:
        run_polyscope(world, body, load, mesh, args.element, args.steps)


if __name__ == "__main__":
    main()

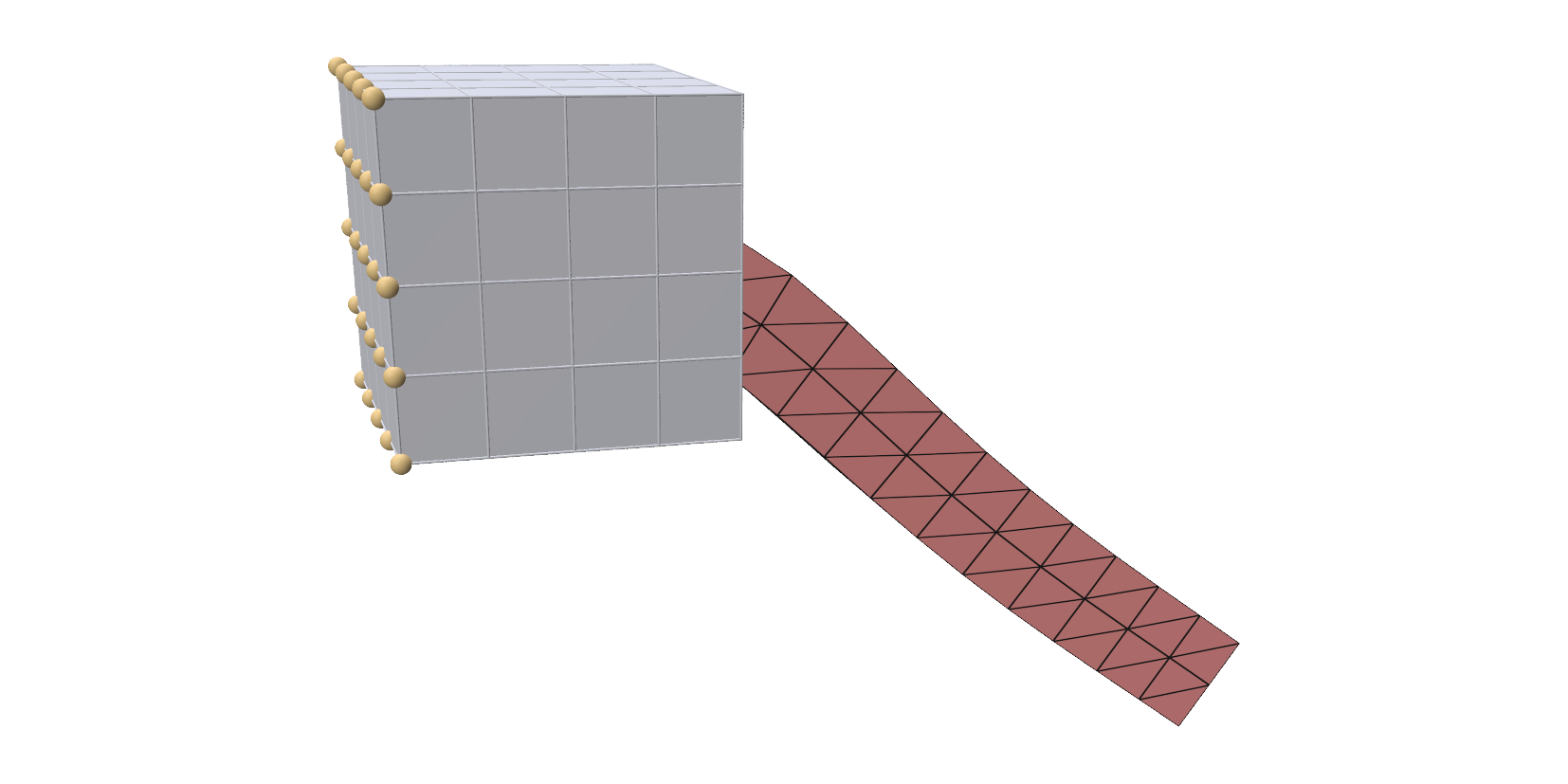

"""Soft FEM flag stitched to a clamped embedded post.

An embedded (voxelized) cube acts as a stiff post: its back face is clamped to
the world. A soft FEM beam ("flag") reaches out in +x; its root cap sits
inside the post's hex grid and is *stitched* onto it, so the root vertices
move exactly with the post, as if they were points of it. Under gravity the
flag cantilevers off the anchored post and sags.

Usage:
    python examples/boundary_conditions/fem_embedded_flag.py                # polyscope
    python examples/boundary_conditions/fem_embedded_flag.py --no-viewer    # headless
    python examples/boundary_conditions/fem_embedded_flag.py --steps 400
"""

from __future__ import annotations

import argparse
import sys
from pathlib import Path

import numpy as np

import trusty

sys.path.insert(0, str(Path(__file__).resolve().parent.parent))
from utils import init_polyscope, make_bar_trimesh  # noqa: E402

# Post: an axis-aligned cube whose cage straddles x = 0 so the flag root
# (x = 0) lands inside it.
POST_SIZE   = (0.4, 0.4, 0.4)
POST_ORIGIN = (-0.3, -0.2, -0.1)
VOXEL_SIZE  = 0.1
FLAG_SIZE   = (1.0, 0.15, 0.15)
FLAG_RES    = (12, 2, 2)


def build_world(backend: str = "auto"):
    trusty.check_capabilities("embedded")

    world    = trusty.World(backend=backend,
                            timestep=1.0 / 60.0,
                            newton=trusty.NewtonConfig(max_iters=50))
    material = trusty.StableNeoHookean(youngs_modulus=1e5, poisson_ratio=0.3)

    # -- Anchor: stiff embedded post, back (x = min) face clamped. ---------
    stiff  = trusty.StableNeoHookean(youngs_modulus=1e6, poisson_ratio=0.3)
    pV, pF = make_bar_trimesh(POST_SIZE, res=(4, 4, 4), origin=POST_ORIGIN)
    post   = trusty.embedded.add_embedded_solid(
        world, pV, pF, VOXEL_SIZE, stiff, density=1000.0)
    # Clamp the hex-grid nodes within `tol` of the post's back face: the grid
    # need not line up with the surface, so allow up to about half a hex.
    trusty.fem.pin_face(world, post, axis=0, coord=POST_ORIGIN[0], tol=0.06)

    # -- Follower: soft FEM flag reaching out in +x, root at x = 0. ----------
    tm = trusty.make_beam_tet_mesh(size=FLAG_SIZE, res=FLAG_RES)
    V  = np.asarray(tm.vertices).copy()
    # Centre the flag's y/z on the post so its root cap sits inside the cage.
    V[:, 1] += -FLAG_SIZE[1] / 2
    V[:, 2] += (POST_ORIGIN[2] + POST_SIZE[2] / 2) - FLAG_SIZE[2] / 2
    tm   = trusty.make_tet_mesh(V, np.asarray(tm.tets))
    flag = trusty.fem.add_tet_solid(world, tm, material, density=1000.0)

    # Root cap = flag vertices on the x = 0 face; bond them to the post.
    root = np.where(np.abs(V[:, 0]) < 1e-9)[0].tolist()
    trusty.boundary_conditions.stitch(world, flag, root, post)

    print(f"Embedded post + soft FEM flag, {len(root)} root verts stitched.")
    return world, post, flag


def _register_visuals(ps, world, post, flag):
    pV = trusty.embedded.read_embedded_surface(world, post)
    pF = trusty.embedded.surface_triangles(world, post)
    ps_post = ps.register_surface_mesh("embedded_post", np.asarray(pV),
                                       np.asarray(pF), color=(0.55, 0.55, 0.6))
    tm = trusty.fem.read_tet_mesh(world, flag)
    ps_flag = ps.register_volume_mesh(
        "soft_flag", np.asarray(tm.vertices).copy(), tets=np.asarray(tm.tets))
    ps_flag.set_color((0.9, 0.5, 0.2))
    ps_flag.set_edge_width(1.0)
    return ps_post, ps_flag


def _update_visuals(ps_post, ps_flag, world, post, flag):
    ps_post.update_vertex_positions(
        np.asarray(trusty.embedded.read_embedded_surface(world, post)))
    ps_flag.update_vertex_positions(
        np.asarray(trusty.fem.read_tet_mesh(world, flag).vertices))


def run_polyscope(world, post, flag, steps: int):
    ps = init_polyscope(headless=False)
    ps_post, ps_flag = _register_visuals(ps, world, post, flag)
    state = {"i": 0, "playing": False}

    def advance():
        if state["i"] < steps:
            world.step()
            state["i"] += 1
            _update_visuals(ps_post, ps_flag, world, post, flag)

    def callback():
        import polyscope.imgui as psim
        _, state["playing"] = psim.Checkbox("play", state["playing"])
        psim.SameLine()
        if psim.Button("step"):
            advance()
        elif state["playing"]:
            advance()
        psim.Text(f"step {state['i']} / {steps}")
        r = world.last_report()
        psim.Text(f"solve: iters={r.iterations} res={r.final_residual:.2e} "
                  f"{'ok' if r.converged else 'DIVERGED'}")

    ps.set_user_callback(callback)
    ps.show()


def run_headless(world, post, flag, steps: int):
    print(f"Running {steps} steps headless...")
    V0   = np.asarray(trusty.fem.read_tet_mesh(world, flag).vertices).copy()
    root = np.where(np.abs(V0[:, 0]) < 1e-9)[0]          # bonded (stitched) verts
    tip  = np.where(np.abs(V0[:, 0] - FLAG_SIZE[0]) < 1e-9)[0]
    for i in range(steps):
        world.step()
        r = world.last_report()
        if not r.converged:
            raise SystemExit(f"step {i}: solve DIVERGED (res={r.final_residual:.2e})")
        V = np.asarray(trusty.fem.read_tet_mesh(world, flag).vertices)
        if not np.isfinite(V).all():
            raise SystemExit(f"step {i}: non-finite flag vertices")
        if (i + 1) % 50 == 0:
            print(f"  step {i + 1:4d}  iters={r.iterations}  "
                  f"res={r.final_residual:.2e}")
    V1        = np.asarray(trusty.fem.read_tet_mesh(world, flag).vertices)
    root_move = np.linalg.norm(V1[root] - V0[root], axis=1).max()
    tip_sag   = (V0[tip, 2] - V1[tip, 2]).mean()
    print(f"Done. tip sagged {tip_sag:.3f} m; bonded root moved {root_move:.4f} m.")
    # The stitch must hold the root to the (stiff, pinned) post while the free
    # portion cantilevers: a free-falling flag would move root and tip alike.
    if tip_sag < 0.05:
        raise SystemExit("flag did not sag — check the setup")
    if root_move > 0.05:
        raise SystemExit("bonded root drifted — the stitch did not hold")


def main():
    p = argparse.ArgumentParser(description=__doc__.split("\n")[0])
    p.add_argument("--backend", choices=["auto", "cpu", "accelerate", "cuda"], default="auto")
    p.add_argument("--steps", type=int, default=300)
    p.add_argument("--no-viewer", action="store_true")
    args = p.parse_args()

    world, post, flag = build_world(backend=args.backend)
    if args.no_viewer:
        run_headless(world, post, flag, args.steps)
    else:
        run_polyscope(world, post, flag, args.steps)


if __name__ == "__main__":
    main()

"""Spring pins with moving targets, and a floor in the way.

A soft cantilever bar:
  - its left face is pinned at its rest position with a high stiffness, so it
    acts as a clamp;
  - its right face is pinned to targets that move up and down on a sine wave;
  - a floor below stops the bar. The targets dip below the floor, but a spring
    pin gives, so the bar rests on the floor instead of passing through it.

Usage:
    python examples/boundary_conditions/moving_pin.py              # polyscope
    python examples/boundary_conditions/moving_pin.py --no-viewer  # print the drive
"""

from __future__ import annotations

import argparse
import sys
from pathlib import Path

import numpy as np

import trusty

sys.path.insert(0, str(Path(__file__).resolve().parent.parent))
from utils import init_polyscope  # noqa: E402


BAR_SIZE = (1.0, 0.2, 0.2)
BAR_RES  = (10, 2, 2)
FLOOR_Z  = -0.2
DRIVE_AMP        = 0.27
DRIVE_PERIOD_STEPS = 60


def build_world(backend: str):
    trusty.check_capabilities("contact")

    mesh = trusty.make_beam_hex_mesh(size=BAR_SIZE, res=BAR_RES)
    material = trusty.StableNeoHookean(youngs_modulus=1e5, poisson_ratio=0.3)

    world = trusty.World(backend=backend,
                         timestep=1.0 / 60.0,
                         newton=trusty.NewtonConfig(max_iters=60))
    trusty.contact.enable(world, trusty.contact.Config(dhat=5e-3, kappa=1e4))
    body = trusty.fem.add_hex_solid(world, mesh, material, density=1000.0)

    V = np.asarray(mesh.vertices)
    left_nodes = np.where(V[:, 0] < 1e-9)[0].tolist()
    right_nodes = np.where(V[:, 0] > BAR_SIZE[0] - 1e-9)[0].tolist()
    left_targets = V[left_nodes].copy()
    right_targets_init = V[right_nodes].copy()

    trusty.boundary_conditions.pin_to_target(
        world, body, left_nodes, left_targets, stiffness=1e8)
    right_pin = trusty.boundary_conditions.pin_to_target(
        world, body, right_nodes, right_targets_init, stiffness=5e6)

    trusty.add_floor_plane(world, z=FLOOR_Z)

    return world, body, right_pin, right_nodes, right_targets_init


def prescribed_targets(step: int, right_targets_init: np.ndarray):
    phase = (2 * np.pi * step) / DRIVE_PERIOD_STEPS
    dz = DRIVE_AMP * np.sin(phase)
    targets = right_targets_init.copy()
    targets[:, 2] += dz
    return targets, dz


def drive(world, right_pin, right_targets_init, step: int):
    """Move the right face's targets for this step, then advance."""
    targets, dz = prescribed_targets(step, right_targets_init)
    trusty.boundary_conditions.set_pin_targets(world, right_pin, targets)
    world.step()
    return dz


def _register_visuals(ps, world, body):
    mesh = trusty.fem.read_mesh(world, body)
    verts = np.asarray(mesh.vertices).copy()
    hexes = np.asarray(mesh.hexes)
    ps_mesh = ps.register_volume_mesh("bar", verts, hexes=hexes)
    ps_mesh.set_edge_width(1.0)

    Lx = BAR_SIZE[0]
    floor = np.array(
        [[-0.5, -0.5, FLOOR_Z], [Lx + 0.5, -0.5, FLOOR_Z],
         [Lx + 0.5, 0.5, FLOOR_Z], [-0.5, 0.5, FLOOR_Z]])
    ps.register_surface_mesh(
        "floor", floor, np.array([[0, 1, 2], [0, 2, 3]], dtype=np.int32),
        color=(0.6, 0.6, 0.6))
    return ps_mesh


def run_polyscope(backend: str, n_steps: int):
    ps = init_polyscope(headless=False)
    world, body, right_pin, _, right_targets_init = build_world(backend)
    ps_mesh = _register_visuals(ps, world, body)

    state = {"i": 0, "playing": False}   # play starts OFF

    def callback():
        import polyscope.imgui as psim
        _, state["playing"] = psim.Checkbox("play", state["playing"])
        psim.SameLine()
        if psim.Button("step") or state["playing"]:
            if state["i"] < n_steps:
                drive(world, right_pin, right_targets_init, state["i"])
                state["i"] += 1
                ps_mesh.update_vertex_positions(
                    np.asarray(trusty.fem.read_mesh(world, body).vertices))
        psim.Text(f"step {state['i']} / {n_steps}")
        rep = world.last_report()
        psim.Text(
            f"last solve: iters={rep.iterations}  "
            f"residual={rep.final_residual:.3e}  "
            f"{'converged' if rep.converged else 'DIVERGED'}")

    ps.set_user_callback(callback)
    ps.show()


def run_headless(backend: str, n_steps: int):
    world, body, right_pin, right_nodes, right_targets_init = build_world(backend)
    print(f"{'step':>4}  {'target dz':>9}  {'face dz':>8}  {'lowest z':>8}  pin force z (N)")
    lowest = np.inf
    for i in range(n_steps):
        dz = drive(world, right_pin, right_targets_init, i)
        if not world.last_report().converged:
            raise SystemExit(f"step {i}: the solve did not converge")
        x = np.asarray(trusty.fem.read_positions(world, body))
        lowest = min(lowest, x[:, 2].min())
        if i % 10 == 0:
            face_dz = x[right_nodes, 2].mean() - right_targets_init[:, 2].mean()
            fz = trusty.boundary_conditions.pin_total_force(world, right_pin)[2]
            print(f"{i:4d}  {dz:+9.3f}  {face_dz:+8.3f}  {x[:, 2].min():+8.3f}  {fz:+.1f}")
    print(f"Lowest point reached: z = {lowest:.3f} (floor at z = {FLOOR_Z})")
    if lowest < FLOOR_Z - 1e-3:
        raise SystemExit("the bar passed through the floor")


def main():
    ap = argparse.ArgumentParser(description=__doc__.split("\n")[0])
    ap.add_argument("--backend",
                    choices=["auto", "cpu", "cuda", "accelerate"], default="auto")
    ap.add_argument("--steps", type=int, default=120)
    ap.add_argument("--no-viewer", action="store_true",
                    help="headless: print the drive and the pin force every 10 steps")
    args = ap.parse_args()

    if args.no_viewer:
        run_headless(args.backend, args.steps)
    else:
        run_polyscope(args.backend, args.steps)


if __name__ == "__main__":
    main()

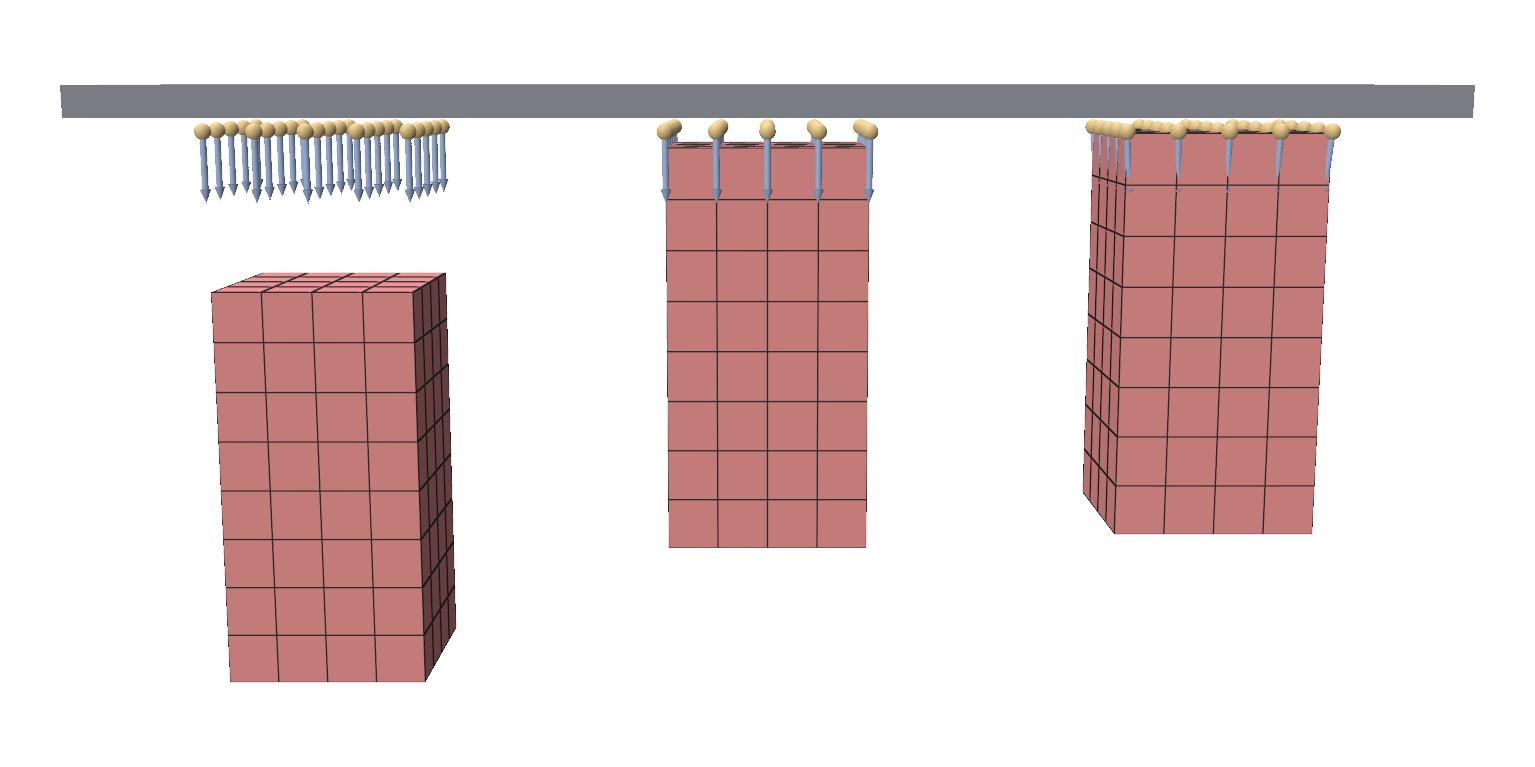

"""A block hung from a soft pin: pin stiffness and the pin's reaction force.

A 16 kg block hangs from its top face, which is held by a spring pin
(`pin_to_target`) at its rest position. A spring pin gives a little under load:
the pinned face settles below its targets by about weight / (k * V), where k is
the pin stiffness (Pa) and V the volume the pinned nodes carry. Each step
solves for the hanging equilibrium, so the example raises the stiffness with
`set_pin_stiffness` and re-solves: the gap shrinks tenfold each time, while the
pin's reaction force (`pin_total_force`) stays equal to the block's weight.

Usage:
    python examples/boundary_conditions/hanging_block.py              # live polyscope
    python examples/boundary_conditions/hanging_block.py --no-viewer  # print the table
"""

from __future__ import annotations

import argparse
import sys
from pathlib import Path

import numpy as np

import trusty

sys.path.insert(0, str(Path(__file__).resolve().parent.parent))
from utils import init_polyscope  # noqa: E402

SIZE = (0.2, 0.2, 0.4)         # m; the block hangs from its top face at z = 0.4
RES = (4, 4, 8)
DENSITY = 1000.0               # kg/m^3, so the block weighs 16 kg
STIFFNESSES = (1e6, 1e7, 1e8)  # Pa; the pin is stiffened through these


def build_world(backend: str = "auto"):
    world = trusty.World(backend=backend,
                         time_stepping="static")  # every step solves for the equilibrium

    mesh = trusty.make_beam_hex_mesh(size=SIZE, res=RES)
    material = trusty.StableNeoHookean(youngs_modulus=1e6, poisson_ratio=0.4)
    body = trusty.fem.add_hex_solid(world, mesh, material, density=DENSITY)

    rest = np.asarray(mesh.vertices)
    top = np.flatnonzero(rest[:, 2] > SIZE[2] - 1e-9)  # the top face's nodes
    pin = trusty.boundary_conditions.pin_to_target(
        world, body, top.tolist(), rest[top], stiffness=STIFFNESSES[0])
    return world, body, pin, mesh, top


def hang(world, pin, stiffness: float):
    """Set the pin's stiffness and solve for the new equilibrium."""
    trusty.boundary_conditions.set_pin_stiffness(world, pin, stiffness)
    world.step()


def measure(world, body, pin, top):
    """The pin's gap below its targets (m), and its reaction force (N)."""
    x = np.asarray(trusty.fem.read_positions(world, body))
    targets = trusty.boundary_conditions.pin_targets(world, pin)
    gap = float(np.mean(targets[:, 2] - x[top, 2]))
    forces = trusty.boundary_conditions.pin_forces(world, pin)  # one row per pinned node
    total = trusty.boundary_conditions.pin_total_force(world, pin)  # their sum (fx, fy, fz)
    return gap, forces, np.asarray(total)


def weight():
    return DENSITY * float(np.prod(SIZE)) * 9.81


def run_headless(world, body, pin, top):
    print(f"block weight: {weight():.2f} N")
    print(f"{'stiffness (Pa)':>15}  {'gap (m)':>9}  {'reaction fz (N)':>15}")
    for k in STIFFNESSES:
        hang(world, pin, k)
        if not world.last_report().converged:
            raise SystemExit(f"k={k:.0e}: the solve did not converge")
        gap, _, total = measure(world, body, pin, top)
        print(f"{k:15.0e}  {gap:9.2e}  {total[2]:15.2f}")
        if abs(-total[2] - weight()) > 1e-6 * weight():
            raise SystemExit("the reaction force does not balance the weight")
    print("OK: the reaction balances the weight; a stiffer pin sags less.")


def run_polyscope(world, body, pin, mesh, top):
    ps = init_polyscope(headless=False)
    m = ps.register_volume_mesh("block", trusty.fem.read_positions(world, body),
                                hexes=np.asarray(mesh.hexes))
    m.set_edge_width(1.0)
    ps.register_point_cloud("targets", trusty.boundary_conditions.pin_targets(world, pin),
                            radius=0.006)
    state = {"log_k": np.log10(STIFFNESSES[0])}

    def refresh():
        hang(world, pin, 10.0 ** state["log_k"])
        x = np.asarray(trusty.fem.read_positions(world, body))
        m.update_vertex_positions(x)
        _, forces, _ = measure(world, body, pin, top)
        nodes = ps.register_point_cloud("pinned nodes", x[top], radius=0.004)
        nodes.add_vector_quantity("pin force", forces, enabled=True)

    refresh()

    def callback():
        import polyscope.imgui as psim
        changed, state["log_k"] = psim.SliderFloat("log10 stiffness (Pa)", state["log_k"],
                                                   5.5, 9.0)
        if changed:
            refresh()
        gap, _, total = measure(world, body, pin, top)
        psim.Text(f"gap below targets {gap:.2e} m")
        psim.Text(f"reaction fz {total[2]:.2f} N   (weight {weight():.2f} N)")

    ps.set_user_callback(callback)
    ps.show()


def main():
    ap = argparse.ArgumentParser(description=__doc__.split("\n")[0])
    ap.add_argument("--backend", choices=["auto", "cpu", "cuda", "accelerate"], default="auto")
    ap.add_argument("--no-viewer", action="store_true",
                    help="headless: step through the stiffnesses and print the table")
    args = ap.parse_args()

    world, body, pin, mesh, top = build_world(args.backend)
    if args.no_viewer:
        run_headless(world, body, pin, top)
    else:
        run_polyscope(world, body, pin, mesh, top)


if __name__ == "__main__":
    main()

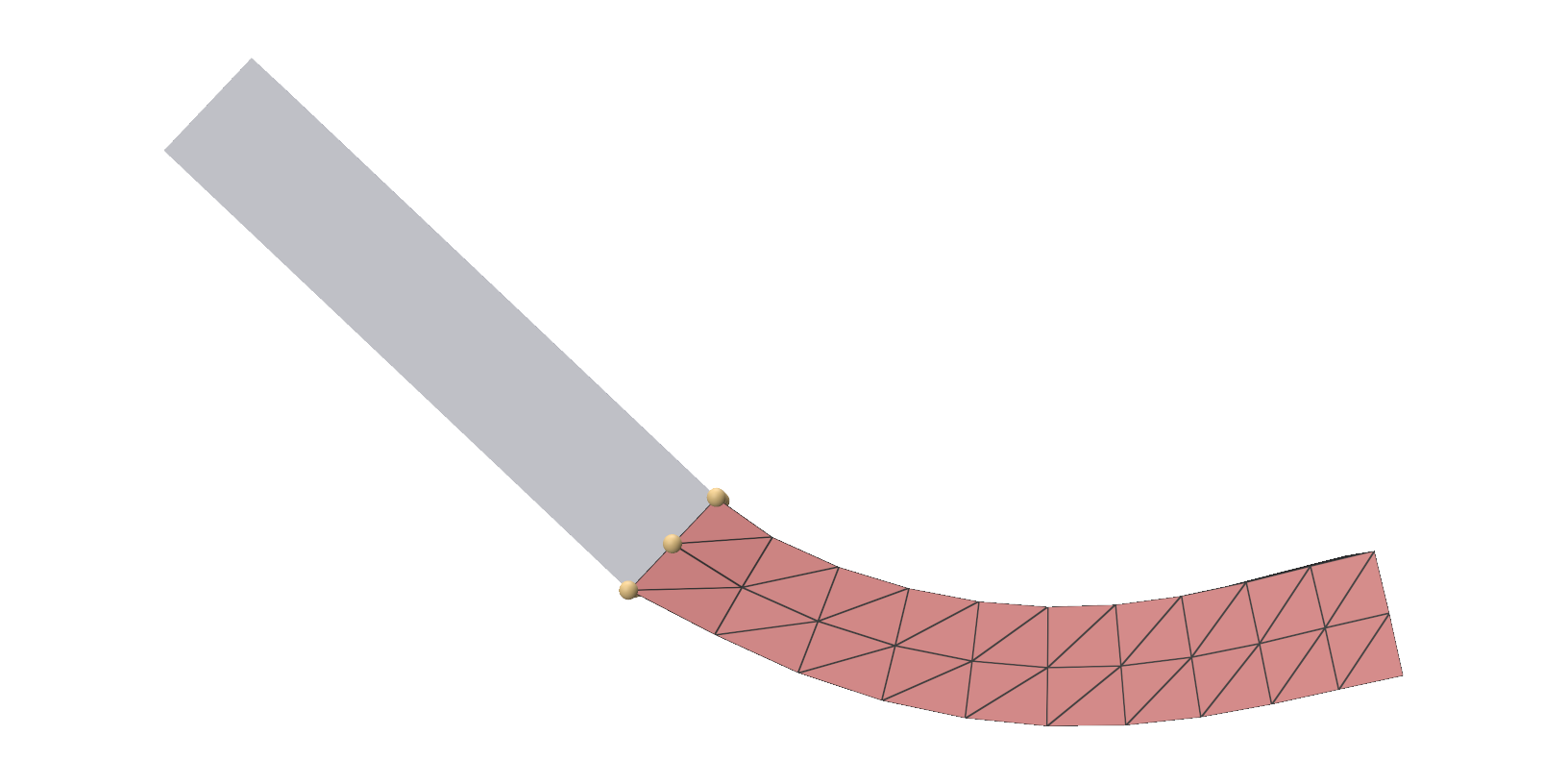

"""Soft FEM beam stitched to a swinging affine bar.

A near-rigid affine bar spans x in [0, 1] and is hinged to the world at its
left end by a grounded revolute joint. A soft FEM beam extends the arm from
x = 1 to x = 2; its root cap (the x = 1 face) is *stitched* onto the affine
bar. The stitched vertices stop being unknowns of their own: they move exactly
with the bar, as if they were points of it. Released horizontal, the bar swings
down like a pendulum and the bonded soft beam whips and sags behind it.

Usage:
    python examples/boundary_conditions/fem_affine_pendulum.py                # polyscope
    python examples/boundary_conditions/fem_affine_pendulum.py --no-viewer    # headless
    python examples/boundary_conditions/fem_affine_pendulum.py --steps 400
"""

from __future__ import annotations

import argparse
import sys
from pathlib import Path

import numpy as np

import trusty

sys.path.insert(0, str(Path(__file__).resolve().parent.parent))
from utils import init_polyscope  # noqa: E402

BAR_LEN   = 1.0     # affine bar length (x)
BAR_HALF  = 0.1     # bar half-thickness (y, z)
Z0        = 2.0     # start height so the arm can swing freely
BEAM_LEN  = 1.0     # soft FEM beam length (x), continuing past the bar tip
BEAM_RES  = (10, 2, 2)


def make_box(center, half):
    h = np.asarray(half, dtype=np.float64)
    V = np.array(
        [[-h[0], -h[1], -h[2]], [h[0], -h[1], -h[2]],
         [h[0], h[1], -h[2]],   [-h[0], h[1], -h[2]],
         [-h[0], -h[1], h[2]],  [h[0], -h[1], h[2]],
         [h[0], h[1], h[2]],    [-h[0], h[1], h[2]]],
        dtype=np.float64,
    ) + np.asarray(center, dtype=np.float64)
    F = np.array(
        [[4, 5, 6], [4, 6, 7], [0, 3, 2], [0, 2, 1],
         [1, 2, 6], [1, 6, 5], [0, 4, 7], [0, 7, 3],
         [3, 7, 6], [3, 6, 2], [0, 1, 5], [0, 5, 4]],
        dtype=np.int32,
    )
    return V, F


def build_world(backend: str = "auto"):
    trusty.check_capabilities("affine")

    world = trusty.World(backend=backend, timestep=0.01, newton=trusty.NewtonConfig(max_iters=50))

    # -- Anchor: near-rigid affine bar, hinged to the world at x = 0. -----
    bar_V, bar_F = make_box((BAR_LEN / 2, 0.0, Z0), (BAR_LEN / 2, BAR_HALF, BAR_HALF))
    bar = trusty.affine.add_affine_body(
        world, bar_V, bar_F, density=1000.0, stiffness=1e8)
    # Grounded revolute hinge along y at the left end (x = 0): the two points
    # define the hinge axis.
    trusty.affine.add_revolute_joint(
        world, bar, (0.0, -BAR_HALF, Z0), (0.0, BAR_HALF, Z0), stiffness=1e8)

    # -- Follower: soft FEM beam continuing the arm from x = 1 to x = 2. -----
    # Match the bar's 0.2 x 0.2 cross-section so the two align at the tip.
    tm   = trusty.make_beam_tet_mesh(
        size=(BEAM_LEN, 2 * BAR_HALF, 2 * BAR_HALF), res=BEAM_RES)
    V    = np.asarray(tm.vertices).copy()
    # Translate so the root face sits on the bar tip (x = 1), centred in y/z.
    V[:, 0] += BAR_LEN
    V[:, 1] += -BAR_HALF
    V[:, 2] += Z0 - BAR_HALF
    tm    = trusty.make_tet_mesh(V, np.asarray(tm.tets))
    soft  = trusty.StableNeoHookean(youngs_modulus=5e4, poisson_ratio=0.4)
    beam  = trusty.fem.add_tet_solid(world, tm, soft, density=1000.0)

    # Root cap = the beam vertices on the x = 1 face; bond them to the bar.
    root = np.where(np.abs(V[:, 0] - BAR_LEN) < 1e-9)[0].tolist()
    trusty.boundary_conditions.stitch(world, beam, root, bar)

    print(f"Affine bar + soft FEM beam, {len(root)} root verts stitched.")
    return world, bar, beam


def _register_visuals(ps, world, bar, beam):
    bar_V, bar_F = trusty.affine.surface(world, bar)
    ps_bar = ps.register_surface_mesh("affine_bar", np.asarray(bar_V),
                                      np.asarray(bar_F), color=(0.55, 0.55, 0.6))
    tm = trusty.fem.read_tet_mesh(world, beam)
    ps_beam = ps.register_volume_mesh(
        "soft_beam", np.asarray(tm.vertices).copy(), tets=np.asarray(tm.tets))
    ps_beam.set_color((0.9, 0.5, 0.2))
    ps_beam.set_edge_width(1.0)
    return ps_bar, ps_beam


def _update_visuals(ps_bar, ps_beam, world, bar, beam):
    ps_bar.update_vertex_positions(
        np.asarray(trusty.affine.surface(world, bar)[0]))
    ps_beam.update_vertex_positions(
        np.asarray(trusty.fem.read_tet_mesh(world, beam).vertices))


def run_polyscope(world, bar, beam, steps: int):
    ps = init_polyscope(headless=False)
    ps_bar, ps_beam = _register_visuals(ps, world, bar, beam)
    state = {"i": 0, "playing": False}

    def advance():
        if state["i"] < steps:
            world.step()
            state["i"] += 1
            _update_visuals(ps_bar, ps_beam, world, bar, beam)

    def callback():
        import polyscope.imgui as psim
        _, state["playing"] = psim.Checkbox("play", state["playing"])
        psim.SameLine()
        if psim.Button("step"):
            advance()
        elif state["playing"]:
            advance()
        psim.Text(f"step {state['i']} / {steps}")
        r = world.last_report()
        psim.Text(f"solve: iters={r.iterations} res={r.final_residual:.2e} "
                  f"{'ok' if r.converged else 'DIVERGED'}")

    ps.set_user_callback(callback)
    ps.show()


def _root_cap_rigidity(V, root):
    """Max relative change in the root cap's pairwise distances vs rest.

    The bonded root is the image of a near-rigid affine body, so its shape must
    be preserved; a free (unbonded) soft cap would stretch under the swing."""
    P = V[root]
    d = np.linalg.norm(P[:, None, :] - P[None, :, :], axis=-1)
    iu = np.triu_indices(len(root), k=1)
    return d[iu]


def run_headless(world, bar, beam, steps: int):
    print(f"Running {steps} steps headless...")
    V0    = np.asarray(trusty.fem.read_tet_mesh(world, beam).vertices).copy()
    root  = np.where(np.abs(V0[:, 0] - BAR_LEN) < 1e-9)[0]   # bonded verts
    rest0 = _root_cap_rigidity(V0, root)
    for i in range(steps):
        world.step()
        r = world.last_report()
        if not r.converged:
            raise SystemExit(f"step {i}: solve DIVERGED (res={r.final_residual:.2e})")
        V = np.asarray(trusty.fem.read_tet_mesh(world, beam).vertices)
        if not np.isfinite(V).all():
            raise SystemExit(f"step {i}: non-finite beam vertices")
        if (i + 1) % 50 == 0:
            print(f"  step {i + 1:4d}  iters={r.iterations}  "
                  f"res={r.final_residual:.2e}")
    V1     = np.asarray(trusty.fem.read_tet_mesh(world, beam).vertices)
    z_tip  = V1[:, 2].min()
    strain = np.abs(_root_cap_rigidity(V1, root) - rest0).max() / rest0.max()
    print(f"Done. beam tip z dropped to {z_tip:.3f} (start ~{Z0:.3f}); "
          f"bonded root cap strain {strain:.1e}.")
    if z_tip > Z0 - 0.1:
        raise SystemExit("beam did not swing/sag — check the setup")
    if strain > 0.02:
        raise SystemExit("bonded root cap deformed — the stitch did not hold")


def main():
    p = argparse.ArgumentParser(description=__doc__.split("\n")[0])
    p.add_argument("--backend", choices=["auto", "cpu", "cuda", "accelerate"], default="auto")
    p.add_argument("--steps", type=int, default=300)
    p.add_argument("--no-viewer", action="store_true")
    args = p.parse_args()

    world, bar, beam = build_world(backend=args.backend)
    if args.no_viewer:
        run_headless(world, bar, beam, args.steps)
    else:
        run_polyscope(world, bar, beam, args.steps)


if __name__ == "__main__":
    main()

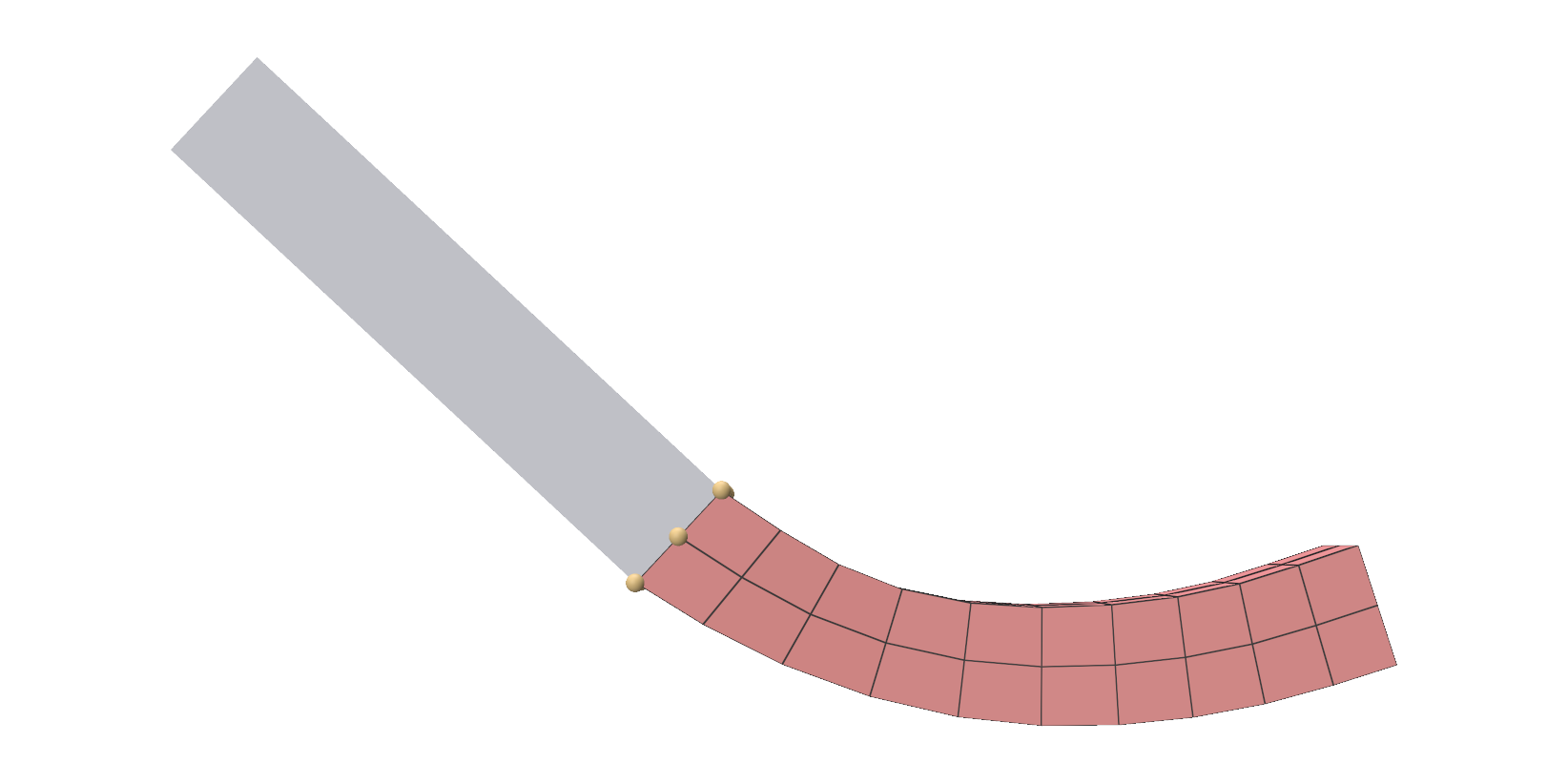

"""Soft reduced beam attached to a swinging affine bar by a spring.

The `attach` twin of fem_affine_pendulum.py. A near-rigid affine bar spans
x in [0, 1] and is hinged to the world at its left end. A soft beam continues
the arm from x = 1 to x = 2; it is a reduced (subspace) body, so instead of
being stitched it is *attached*: its root nodes are tied to the bar by stiff
springs. Released horizontal, the bar swings down and the beam whips behind it.

A spring gives a little under load. The example reports how far the attached
nodes drift from the points of the bar they are tied to; raise `--stiffness`
and the gap shrinks in proportion.

Usage:
    python examples/boundary_conditions/attach_pendulum.py                # polyscope
    python examples/boundary_conditions/attach_pendulum.py --no-viewer    # headless
    python examples/boundary_conditions/attach_pendulum.py --no-viewer --stiffness 1e4
"""

from __future__ import annotations

import argparse
import sys
import tempfile
from pathlib import Path

import numpy as np

import trusty
from trusty.subspace.precompute import build_basis, pack

sys.path.insert(0, str(Path(__file__).resolve().parent.parent))
from utils import init_polyscope, make_bar_trimesh  # noqa: E402

BAR_LEN   = 1.0     # affine bar length (x)
BAR_HALF  = 0.1     # bar half-thickness (y, z)
Z0        = 2.0     # start height so the arm can swing freely
BEAM_LEN  = 1.0     # soft beam length (x), continuing past the bar tip
BEAM_RES  = (10, 2, 2)
HANDLES   = 6       # size of the beam's reduced basis


def make_beam_basis(mesh, material):
    """A reduced basis for the beam (see the subspace examples)."""
    rest = np.asarray(mesh.vertices)
    hexes = np.asarray(mesh.hexes)
    precompute = trusty.World()
    trusty.fem.add_hex_solid(precompute, mesh, material, density=1000.0)
    basis = build_basis.build_skinning_eigenmodes(
        world=precompute, num_nodes=len(rest), rest_positions=rest,
        num_handles=HANDLES, mesh_hash=build_basis.mesh_hash_sha256(rest, hexes))
    path = Path(tempfile.mkdtemp()) / "beam.basis"
    pack.save(path, basis)
    return trusty.subspace.load(str(path))


def build_world(stiffness: float, backend: str = "cpu"):
    trusty.check_capabilities("affine", "subspace")

    world = trusty.World(backend=backend, timestep=0.01,
                         newton=trusty.NewtonConfig(max_iters=50))

    # -- Anchor: near-rigid affine bar, hinged to the world at x = 0. -----
    bar_V, bar_F = make_bar_trimesh((BAR_LEN, 2 * BAR_HALF, 2 * BAR_HALF), res=(1, 1, 1),
                                    origin=(0.0, -BAR_HALF, Z0 - BAR_HALF))
    bar = trusty.affine.add_affine_body(world, bar_V, bar_F, density=1000.0, stiffness=1e8)
    trusty.affine.add_revolute_joint(
        world, bar, (0.0, -BAR_HALF, Z0), (0.0, BAR_HALF, Z0), stiffness=1e8)

    # -- Follower: soft reduced beam continuing the arm from x = 1 to x = 2. --
    m = trusty.make_beam_hex_mesh(size=(BEAM_LEN, 2 * BAR_HALF, 2 * BAR_HALF), res=BEAM_RES)
    V = np.asarray(m.vertices) + (BAR_LEN, -BAR_HALF, Z0 - BAR_HALF)
    mesh = trusty.make_hex_mesh(np.ascontiguousarray(V), np.asarray(m.hexes))
    soft = trusty.StableNeoHookean(youngs_modulus=5e4, poisson_ratio=0.4)
    beam = trusty.subspace.add_hex_body(world, mesh, soft, density=1000.0,
                                        basis=make_beam_basis(mesh, soft))

    # Root = the first slice of beam nodes, which overlaps the bar's tip.
    root = np.flatnonzero(V[:, 0] < BAR_LEN + 1e-9)
    trusty.boundary_conditions.attach(world, beam, root.tolist(), bar, stiffness=stiffness)

    print(f"Affine bar + soft reduced beam, {len(root)} root nodes attached "
          f"(stiffness {stiffness:.0e}).")
    return world, bar, beam, mesh, root


def bond_gap(world, bar, bar_rest, beam_rest, beam, root):
    """Largest distance between an attached node and the bar point it is tied to."""
    bar_now = np.asarray(trusty.affine.surface(world, bar)[0])
    # The bar moves affinely: fit x_now = A x_rest + p to its surface vertices.
    X = np.hstack([bar_rest, np.ones((len(bar_rest), 1))])
    Ap, *_ = np.linalg.lstsq(X, bar_now, rcond=None)
    anchor = np.hstack([beam_rest[root], np.ones((len(root), 1))]) @ Ap
    x = np.asarray(trusty.subspace.deformed_positions(world, body=beam))
    return float(np.linalg.norm(x[root] - anchor, axis=1).max())


def run_polyscope(world, bar, beam, mesh, steps: int):
    ps = init_polyscope(headless=False)
    bar_V, bar_F = trusty.affine.surface(world, bar)
    ps_bar = ps.register_surface_mesh("affine_bar", np.asarray(bar_V), np.asarray(bar_F),
                                      color=(0.55, 0.55, 0.6))
    ps_beam = ps.register_volume_mesh("soft_beam", np.asarray(mesh.vertices).copy(),
                                      hexes=np.asarray(mesh.hexes))
    ps_beam.set_color((0.9, 0.5, 0.2))
    ps_beam.set_edge_width(1.0)
    state = {"i": 0, "playing": False}

    def callback():
        import polyscope.imgui as psim
        _, state["playing"] = psim.Checkbox("play", state["playing"])
        psim.SameLine()
        if (psim.Button("step") or state["playing"]) and state["i"] < steps:
            world.step()
            state["i"] += 1
            ps_bar.update_vertex_positions(np.asarray(trusty.affine.surface(world, bar)[0]))
            ps_beam.update_vertex_positions(
                np.asarray(trusty.subspace.deformed_positions(world, body=beam)))
        psim.Text(f"step {state['i']} / {steps}")
        r = world.last_report()
        psim.Text(f"solve: iters={r.iterations} res={r.final_residual:.2e} "
                  f"{'ok' if r.converged else 'DIVERGED'}")

    ps.set_user_callback(callback)
    ps.show()


def run_headless(world, bar, beam, mesh, root, steps: int):
    print(f"Running {steps} steps headless...")
    bar_rest = np.asarray(trusty.affine.surface(world, bar)[0]).copy()
    beam_rest = np.asarray(mesh.vertices)
    worst = 0.0
    for i in range(steps):
        world.step()
        r = world.last_report()
        if not r.converged:
            raise SystemExit(f"step {i}: solve DIVERGED (res={r.final_residual:.2e})")
        worst = max(worst, bond_gap(world, bar, bar_rest, beam_rest, beam, root))
        if (i + 1) % 50 == 0:
            print(f"  step {i + 1:4d}  iters={r.iterations}  res={r.final_residual:.2e}")
    x = np.asarray(trusty.subspace.deformed_positions(world, body=beam))
    print(f"Done. beam tip z dropped to {x[:, 2].min():.3f} (start ~{Z0:.3f}); "
          f"largest bond gap {worst:.1e} m.")
    if x[:, 2].min() > Z0 - 0.1:
        raise SystemExit("beam did not swing/sag -- check the setup")


def main():
    p = argparse.ArgumentParser(description=__doc__.split("\n")[0])
    # Defaults to cpu: the stitch is not yet supported on the accelerate
    # backend, so 'auto' on a Mac raises.
    p.add_argument("--backend", choices=["auto", "cpu", "accelerate"], default="cpu")
    p.add_argument("--steps", type=int, default=300)
    p.add_argument("--stiffness", type=float, default=1e6,
                   help="spring stiffness of each attached node (N/m)")
    p.add_argument("--no-viewer", action="store_true")
    args = p.parse_args()

    world, bar, beam, mesh, root = build_world(args.stiffness, backend=args.backend)
    if args.no_viewer:
        run_headless(world, bar, beam, mesh, root, args.steps)
    else:
        run_polyscope(world, bar, beam, mesh, args.steps)


if __name__ == "__main__":
    main()
