Rods¶

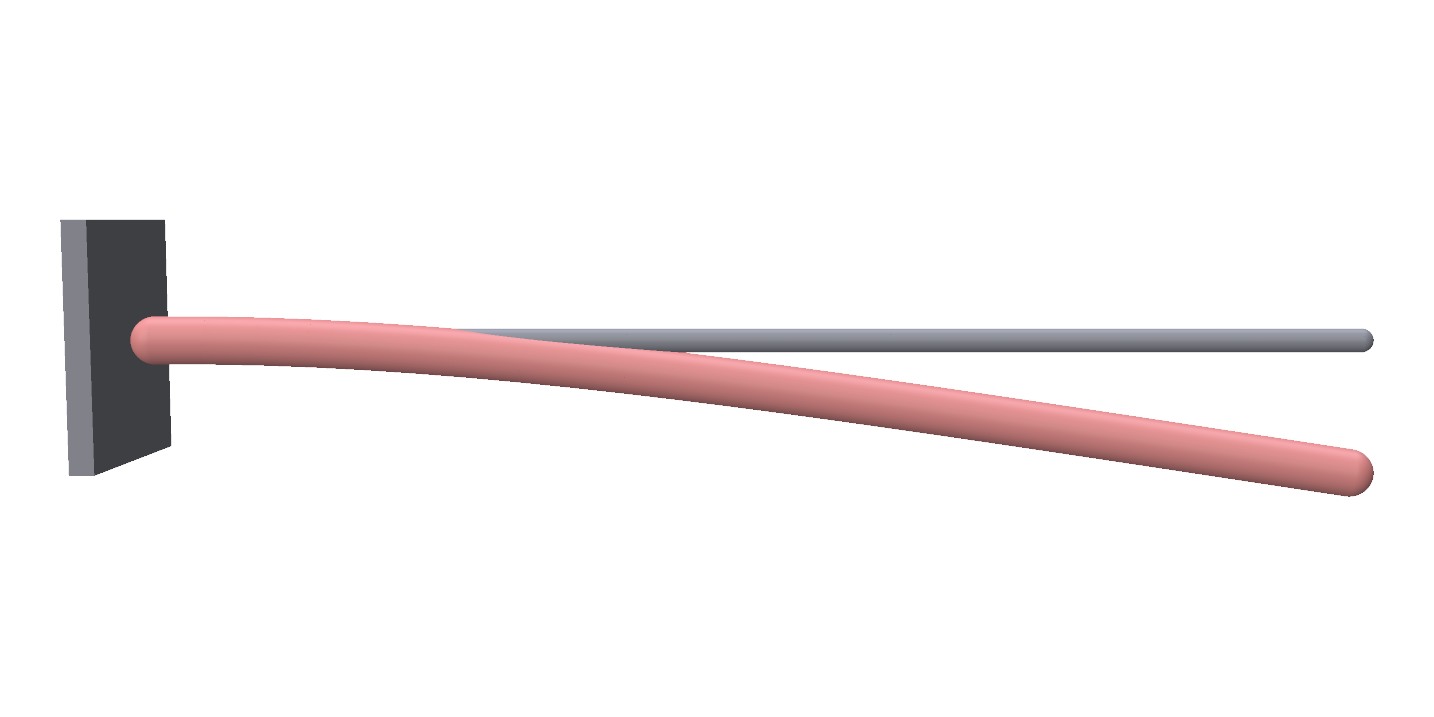

"""Rod cantilever.

A straight elastic rod, clamped at one end, droops under gravity and settles.
The headless run prints the tip sag next to the small-deflection beam formula
q L^4 / (8 E I).

Usage:
    python examples/rods/rod_cantilever.py
    python examples/rods/rod_cantilever.py --no-viewer --steps 300
"""

from __future__ import annotations

import argparse
import sys
from pathlib import Path

import numpy as np

import trusty

sys.path.insert(0, str(Path(__file__).resolve().parent.parent))
from utils import init_polyscope   # noqa: E402


N, LENGTH, RADIUS = 24, 1.0, 0.02
YOUNGS, DENSITY = 1e8, 1000.0


def build_world(backend: str = "auto"):
    trusty.check_capabilities("rods")

    world = trusty.World(backend=backend, timestep=1.0 / 60.0)

    # The rod's centerline: N points in order, here straight along x.
    X = np.zeros((N, 3))
    X[:, 0] = np.linspace(0.0, LENGTH, N)

    mat = trusty.rods.RodMaterial()
    mat.youngs_modulus = YOUNGS   # Pa
    mat.radius = RADIUS           # m
    mat.density = DENSITY         # kg/m^3

    rod = trusty.rods.add_rod(world, X, mat)
    trusty.rods.pin_vertices(world, rod, [0, 1])   # clamp the first edge

    return world, rod


def beam_theory_sag() -> float:
    """Small-deflection tip sag of a uniform cantilever under its own weight."""
    q = DENSITY * np.pi * RADIUS**2 * 9.81    # weight per length (N/m)
    EI = YOUNGS * np.pi * RADIUS**4 / 4       # bending stiffness (N m^2)
    return q * LENGTH**4 / (8 * EI)


def _rod_edges(n: int) -> np.ndarray:
    return np.array([[i, i + 1] for i in range(n - 1)], dtype=np.int64)


def _register_visuals(ps, world, rod):
    # read_positions returns the centerline, (N, 3). Draw it as a curve
    # network with the rod's own radius.
    X = trusty.rods.read_positions(world, rod)
    edges = [[i, i + 1] for i in range(len(X) - 1)]
    net = ps.register_curve_network("rod", X, np.array(edges))
    net.set_radius(RADIUS, relative=False)
    net.set_color((0.85, 0.55, 0.25))
    return net


def run_polyscope(world, rod, steps: int):
    ps  = init_polyscope(headless=False)
    net = _register_visuals(ps, world, rod)
    state = {"i": 0, "playing": False}

    def advance_one():
        if state["i"] < steps:
            world.step()
            state["i"] += 1
            net.update_node_positions(
                np.asarray(trusty.rods.read_positions(world, rod)))

    def callback():
        import polyscope.imgui as psim
        _, state["playing"] = psim.Checkbox("play", state["playing"])
        psim.SameLine()
        if psim.Button("step"):
            advance_one()
        elif state["playing"]:
            advance_one()
        psim.Text(f"step {state['i']} / {steps}")
        report = world.last_report()
        psim.Text(
            f"last solve: iters={report.iterations}  "
            f"residual={report.final_residual:.3e}  "
            f"{'converged' if report.converged else 'DIVERGED'}")

    ps.set_user_callback(callback)
    ps.show()


def run_headless(world, rod, steps: int):
    for i in range(steps):
        world.step()
        if not world.last_report().converged:
            raise SystemExit(f"step {i}: DIVERGED")
    sag = -float(np.asarray(trusty.rods.read_positions(world, rod))[-1, 2])
    print(f"tip sag after {steps} steps: {sag:.4f} m "
          f"(beam formula: {beam_theory_sag():.4f} m)")


def main():
    parser = argparse.ArgumentParser(description=__doc__.split("\n")[0])
    parser.add_argument("--backend",
                        choices=["auto", "cpu", "accelerate", "cuda"], default="auto")
    parser.add_argument("--steps", type=int, default=300)
    parser.add_argument("--no-viewer", action="store_true",
                        help="headless: print the tip sag")
    args = parser.parse_args()

    world, rod = build_world(backend=args.backend)
    if args.no_viewer:
        run_headless(world, rod, args.steps)
    else:
        run_polyscope(world, rod, args.steps)


if __name__ == "__main__":
    main()

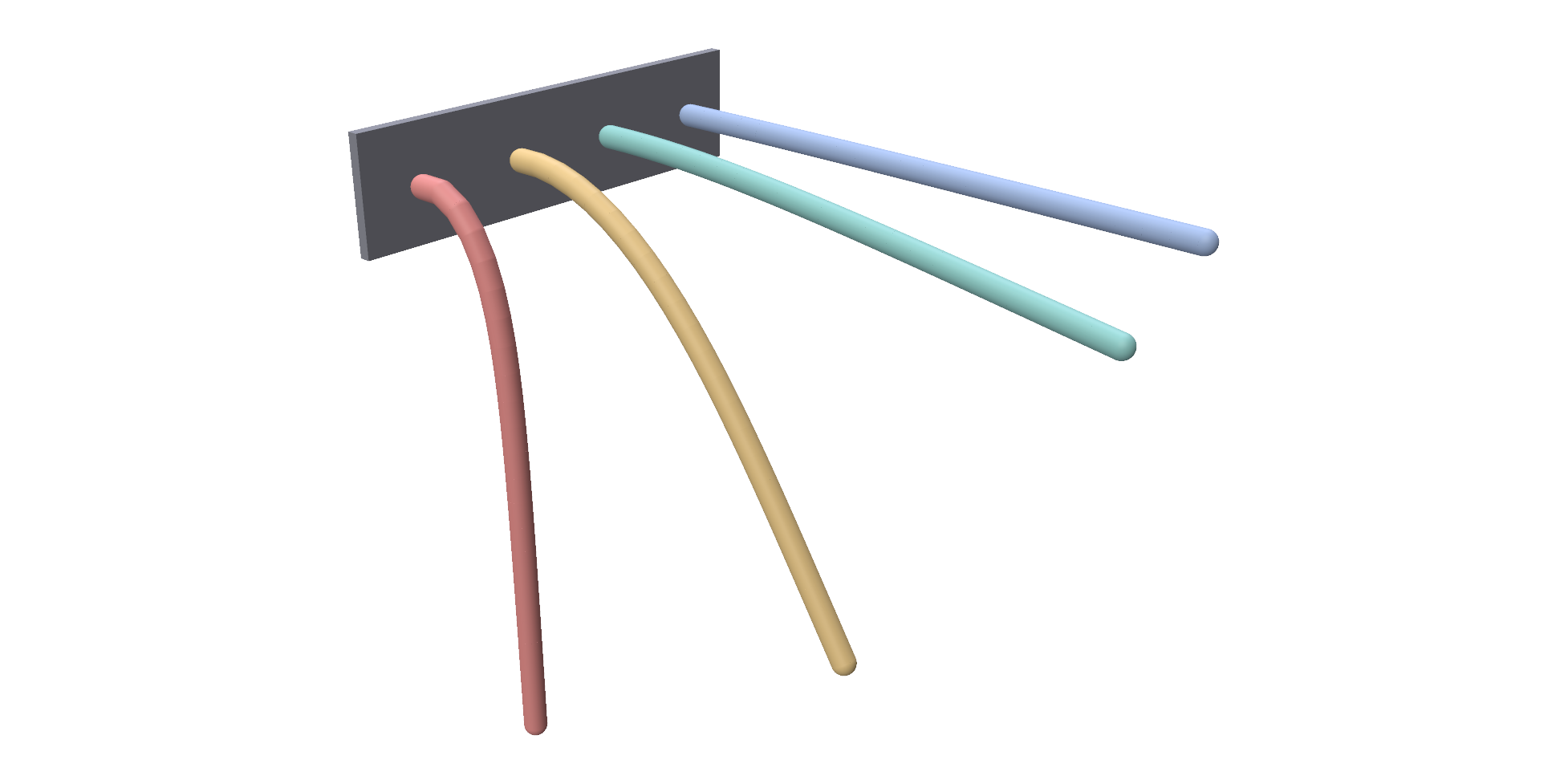

"""Four cantilever rods, one per Young's modulus, drooping to rest.

Four rods share a length, radius and density and are clamped at one end; only
the Young's modulus differs, from 1 MPa to 1 GPa. The softest hangs almost
straight down, the stiffest barely droops. A timestep of 1 s with the velocity
zeroed after every step moves each rod straight to its resting shape, so a few
steps are enough. The headless run prints each tip sag next to the
small-deflection beam formula q L^4 / (8 E I), which only holds while the sag
is small compared with the length.

Usage:
    python examples/rods/rod_stiffness.py              # live polyscope
    python examples/rods/rod_stiffness.py --no-viewer  # print the sags
"""

from __future__ import annotations

import argparse
import sys
from pathlib import Path

import numpy as np

import trusty

sys.path.insert(0, str(Path(__file__).resolve().parent.parent))
from utils import init_polyscope  # noqa: E402

N, LENGTH, RADIUS, DENSITY = 24, 1.0, 0.02, 1000.0
MODULI = (1e6, 1e7, 1e8, 1e9)   # Pa, softest first
SPACING = 0.2                   # y offset between rods (m)
COLORS = [(0.94, 0.33, 0.31), (0.98, 0.70, 0.30), (0.35, 0.75, 0.70),
          (0.45, 0.60, 0.90)]


def build_world(backend: str = "auto"):
    trusty.check_capabilities("rods")
    world = trusty.World(backend=backend,
                         timestep=1.0,                  # large steps with no carried-over
                         time_stepping="quasi_static",  # velocity: each one heads for rest
                         newton=trusty.NewtonConfig(max_iters=50))

    rods = {}
    for k, E in enumerate(MODULI):
        mat = trusty.rods.RodMaterial()
        mat.youngs_modulus = E
        mat.radius = RADIUS
        mat.density = DENSITY

        X = np.zeros((N, 3))
        X[:, 0] = np.linspace(0.0, LENGTH, N)
        X[:, 1] = SPACING * k            # side by side, in one world
        rod = trusty.rods.add_rod(world, X, mat)
        trusty.rods.pin_vertices(world, rod, [0, 1])
        rods[E] = rod
    return world, rods


def tip_sag(world, rod) -> float:
    return -float(np.asarray(trusty.rods.read_positions(world, rod))[-1, 2])


def beam_theory_sag(E: float) -> float:
    q = DENSITY * np.pi * RADIUS**2 * 9.81    # weight per length (N/m)
    return q * LENGTH**4 / (8 * E * np.pi * RADIUS**4 / 4)


def run_viewer(world, rods, steps: int):
    ps = init_polyscope(headless=False)
    nets = {}
    for k, (E, rod) in enumerate(rods.items()):
        X = np.asarray(trusty.rods.read_positions(world, rod))
        net = ps.register_curve_network(f"E = {E:.0e} Pa", X,
                                        np.array([[i, i + 1] for i in range(N - 1)]))
        net.set_radius(RADIUS, relative=False)
        net.set_color(COLORS[k])
        nets[E] = net
    state = {"i": 0, "playing": False}

    def callback():
        import polyscope.imgui as psim
        _, state["playing"] = psim.Checkbox("play", state["playing"])
        psim.SameLine()
        if (psim.Button("step") or state["playing"]) and state["i"] < steps:
            world.step()
            state["i"] += 1
            for E, rod in rods.items():
                nets[E].update_node_positions(
                    np.asarray(trusty.rods.read_positions(world, rod)))
        psim.Text(f"step {state['i']} / {steps}")
        for E, rod in rods.items():
            psim.Text(f"E = {E:.0e} Pa   sag {tip_sag(world, rod):.3f} m")

    ps.set_user_callback(callback)
    ps.show()


def main():
    ap = argparse.ArgumentParser(description=__doc__.split("\n")[0])
    ap.add_argument("--steps", type=int, default=5)
    ap.add_argument("--backend", default="auto", choices=["auto", "cpu", "accelerate"])
    ap.add_argument("--no-viewer", action="store_true",
                    help="headless: print each rod's tip sag")
    args = ap.parse_args()

    world, rods = build_world(args.backend)
    if args.no_viewer:
        for _ in range(args.steps):
            world.step()
        print(f"tip sag after {args.steps} steps (rod length {LENGTH} m)")
        for E, rod in rods.items():
            theory = beam_theory_sag(E)
            note = (f"beam formula {theory:.4f} m" if theory < 0.2 * LENGTH
                    else "too large a sag for the beam formula")
            print(f"  E = {E:.0e} Pa   {tip_sag(world, rod):.4f} m   ({note})")
        return
    run_viewer(world, rods, args.steps)


if __name__ == "__main__":
    main()

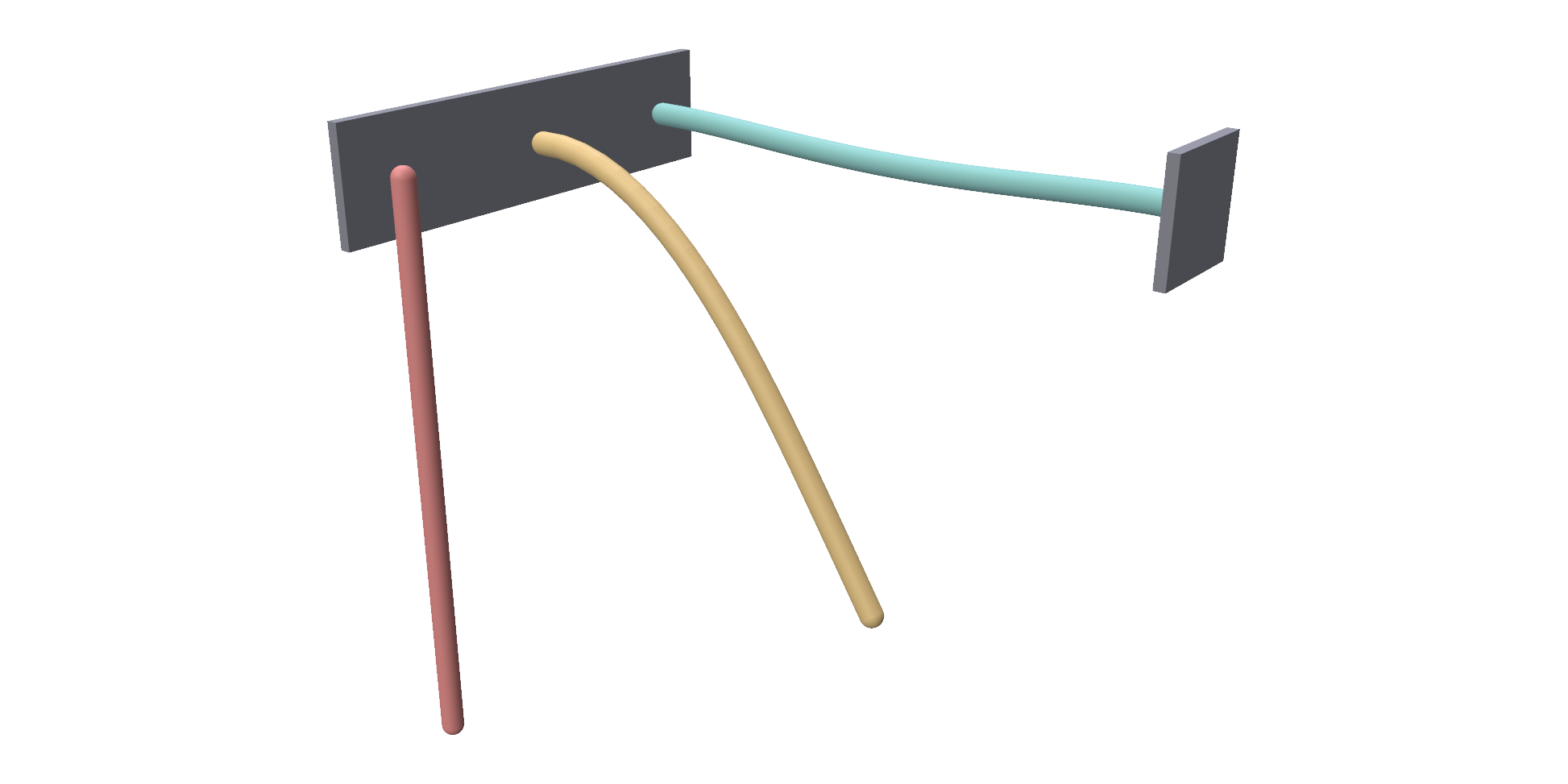

"""Three ways to hold a rod: a hinge, a clamp, and both ends clamped.

Three identical horizontal rods are held differently and left to settle under
gravity. Pinning one vertex makes a hinge: the rod swings down and hangs
straight. Pinning the first two vertices clamps the first edge, so the rod
droops like a cantilever. Clamping both ends makes a bridge that sags in the
middle; its end edges also have their twist held with `pin_twist`. A timestep
of 1 s with the velocity zeroed after every step moves each rod straight to
its resting shape.

Usage:
    python examples/rods/rod_pins.py              # live polyscope
    python examples/rods/rod_pins.py --no-viewer  # print the resting shapes
"""

from __future__ import annotations

import argparse
import sys
from pathlib import Path

import numpy as np

import trusty

sys.path.insert(0, str(Path(__file__).resolve().parent.parent))
from utils import init_polyscope  # noqa: E402

N, LENGTH, RADIUS = 24, 1.0, 0.02
SPACING = 0.3                   # y offset between rods (m)
COLORS = [(0.94, 0.33, 0.31), (0.98, 0.70, 0.30), (0.35, 0.75, 0.70)]


def add_straight_rod(world, y: float):
    mat = trusty.rods.RodMaterial()
    mat.youngs_modulus = 1e7
    mat.radius = RADIUS
    mat.density = 1000.0
    X = np.zeros((N, 3))
    X[:, 0] = np.linspace(0.0, LENGTH, N)
    X[:, 1] = y
    return trusty.rods.add_rod(world, X, mat)


def build_world(backend: str = "auto"):
    trusty.check_capabilities("rods")
    world = trusty.World(backend=backend,
                         timestep=1.0,                  # large steps with no carried-over
                         time_stepping="quasi_static",  # velocity: each one heads for rest
                         newton=trusty.NewtonConfig(max_iters=50))

    hinge = add_straight_rod(world, 0.0)
    clamp = add_straight_rod(world, SPACING)
    bridge = add_straight_rod(world, 2 * SPACING)

    # One vertex: a hinge. The rod turns freely about it.
    trusty.rods.pin_vertices(world, hinge, [0])

    # The first two vertices: a clamp. The first edge cannot move or turn.
    trusty.rods.pin_vertices(world, clamp, [0, 1])

    # Both ends clamped, with the twist of the two end edges held too.
    trusty.rods.pin_vertices(world, bridge, [0, 1, N - 2, N - 1])
    trusty.rods.pin_twist(world, bridge, [0, N - 2])

    return world, {"hinge": hinge, "clamp": clamp, "bridge": bridge}


def run_viewer(world, rods, steps: int):
    ps = init_polyscope(headless=False)
    nets = {}
    edges = np.array([[i, i + 1] for i in range(N - 1)])
    for k, (name, rod) in enumerate(rods.items()):
        net = ps.register_curve_network(
            name, np.asarray(trusty.rods.read_positions(world, rod)), edges)
        net.set_radius(RADIUS, relative=False)
        net.set_color(COLORS[k])
        nets[name] = net
    state = {"i": 0, "playing": False}

    def callback():
        import polyscope.imgui as psim
        _, state["playing"] = psim.Checkbox("play", state["playing"])
        psim.SameLine()
        if (psim.Button("step") or state["playing"]) and state["i"] < steps:
            world.step()
            state["i"] += 1
            for name, rod in rods.items():
                nets[name].update_node_positions(
                    np.asarray(trusty.rods.read_positions(world, rod)))
        psim.Text(f"step {state['i']} / {steps}")

    ps.set_user_callback(callback)
    ps.show()


def main():
    ap = argparse.ArgumentParser(description=__doc__.split("\n")[0])
    ap.add_argument("--steps", type=int, default=10)
    ap.add_argument("--backend", default="auto", choices=["auto", "cpu", "accelerate"])
    ap.add_argument("--no-viewer", action="store_true",
                    help="headless: print where each rod comes to rest")
    args = ap.parse_args()

    world, rods = build_world(args.backend)
    if args.no_viewer:
        for i in range(args.steps):
            world.step()
            if not world.last_report().converged:
                print(f"step {i}: Newton did not converge")
        print(f"after {args.steps} steps:")
        for name, rod in rods.items():
            x = np.asarray(trusty.rods.read_positions(world, rod))
            print(f"  {name:<7} lowest point z = {x[:, 2].min():+.3f} m, "
                  f"far end at x = {x[-1, 0]:.3f} m")
        return
    run_viewer(world, rods, args.steps)


if __name__ == "__main__":
    main()

"""A rod muscle flexing a two-bone arm.

An upper-arm bar is held fixed at the shoulder, and a forearm bar is hinged to
it at the elbow, starting horizontal. A Hill-type rod muscle runs from the
front of the upper arm to the top of the forearm: its end vertices are
stitched to the two bones, and its tension acts along the rod. At activation 0
the forearm droops under gravity, held up a little by the stretched muscle;
raising the activation contracts the muscle and curls the forearm up.

The velocity is zeroed after every step, so the arm moves to its resting pose
for the current activation instead of swinging about it. The headless run
settles the arm at activations 0, 0.5 and 1 in turn and prints each pose; the
viewer has an activation slider.

Usage:
    python examples/rods/muscle_arm.py                 # polyscope + slider
    python examples/rods/muscle_arm.py --no-viewer     # print the poses
"""

from __future__ import annotations

import argparse
import sys
from pathlib import Path

import numpy as np

import trusty

sys.path.insert(0, str(Path(__file__).resolve().parent.parent))
from utils import init_polyscope  # noqa: E402

SHOULDER_Z = 2.0
UPPER_LEN  = 1.0     # shoulder -> elbow (down z)
UPPER_HALF = 0.06
FORE_LEN   = 1.0     # elbow -> wrist (out +x, starts horizontal)
FORE_HALF  = 0.05
N_MUSCLE   = 5       # rod vertices along the muscle
F_MAX      = 400.0   # peak isometric muscle force (N)
ACTIVATIONS = (0.0, 0.5, 1.0)   # the headless run's poses


def make_box(center, half):
    h = np.asarray(half, dtype=np.float64)
    V = np.array(
        [[-h[0], -h[1], -h[2]], [h[0], -h[1], -h[2]],
         [h[0], h[1], -h[2]],   [-h[0], h[1], -h[2]],
         [-h[0], -h[1], h[2]],  [h[0], -h[1], h[2]],
         [h[0], h[1], h[2]],    [-h[0], h[1], h[2]]],
        dtype=np.float64,
    ) + np.asarray(center, dtype=np.float64)
    F = np.array(
        [[4, 5, 6], [4, 6, 7], [0, 3, 2], [0, 2, 1],
         [1, 2, 6], [1, 6, 5], [0, 4, 7], [0, 7, 3],
         [3, 7, 6], [3, 6, 2], [0, 1, 5], [0, 5, 4]],
        dtype=np.int32,
    )
    return V, F


def build_world(backend: str = "auto"):
    trusty.check_capabilities("rods", "affine")
    world = trusty.World(backend=backend,
                         timestep=0.1,
                         time_stepping="quasi_static",  # settle to each pose, no swinging
                         newton=trusty.NewtonConfig(max_iters=60))

    elbow = np.array([0.0, 0.0, SHOULDER_Z - UPPER_LEN])

    # Upper arm: vertical bar, shoulder (top) -> elbow, held fixed at the
    # shoulder.
    up_c = (0.0, 0.0, SHOULDER_Z - UPPER_LEN / 2)
    up_V, up_F = make_box(up_c, (UPPER_HALF, UPPER_HALF, UPPER_LEN / 2))
    upper = trusty.affine.add_affine_body(world, up_V, up_F,
                                          density=1000.0, stiffness=1e8)
    trusty.affine.add_fixed_joint(
        world, upper, (0.0, 0.0, SHOULDER_Z), (1.0, 0.0, 0.0), (0.0, 1.0, 0.0),
        stiffness=1e8)

    # Forearm: horizontal bar, elbow -> wrist in +x. Revolute-hinged to the
    # upper arm at the elbow. Starts horizontal; gravity droops it.
    fore_c = (elbow[0] + FORE_LEN / 2, 0.0, elbow[2])
    fo_V, fo_F = make_box(fore_c, (FORE_LEN / 2, FORE_HALF, FORE_HALF))
    fore = trusty.affine.add_affine_body(world, fo_V, fo_F,
                                         density=500.0, stiffness=1e8)
    trusty.affine.add_revolute_joint(
        world, fore, (elbow[0], -UPPER_HALF, elbow[2]),
        (elbow[0], UPPER_HALF, elbow[2]), upper, stiffness=1e8)

    # Muscle rod: a straight polyline from high on the front of the upper arm
    # to the top of the forearm, near the elbow.
    origin    = np.array([UPPER_HALF, 0.0, SHOULDER_Z - 0.4])
    insertion = np.array([elbow[0] + 0.3, 0.0, elbow[2] + FORE_HALF])
    X = np.linspace(origin, insertion, N_MUSCLE)
    mat = trusty.rods.RodMaterial()
    mat.youngs_modulus = 1e5
    mat.radius = 8e-3
    mat.density = 1000.0
    rod = trusty.rods.add_rod(world, X, mat)

    # Its first vertex rides on the upper arm, its last on the forearm.
    trusty.boundary_conditions.stitch(world, rod, [0], upper)
    trusty.boundary_conditions.stitch(world, rod, [N_MUSCLE - 1], fore)

    rest_len = float(np.linalg.norm(insertion - origin))
    # A Hill-type muscle along the whole rod, vertex 0 to the last.
    muscle = trusty.rods.add_rod_muscle(
        world, rod, list(range(N_MUSCLE)),
        f_max=F_MAX,              # peak isometric force (N)
        l_opt=rest_len,           # optimal fiber length (m)
        l_tendon_slack=0.1,       # tendon slack length (m)
        pennation=0.0, activation=0.0)

    return world, upper, fore, rod, muscle


def forearm_angle(world, fore) -> float:
    """Forearm angle above the horizontal at the elbow, in degrees."""
    c = np.asarray(trusty.affine.surface(world, fore)[0]).mean(axis=0)
    return float(np.degrees(np.arctan2(c[2] - (SHOULDER_Z - UPPER_LEN), c[0])))


def run_phase(world, muscle, activation: float, steps: int):
    """Hold `activation` for `steps` steps; return the muscle's length and force."""
    trusty.rods.set_muscle_activation(world, muscle, activation)  # in [0, 1]
    for i in range(steps):
        world.step()
        if not world.last_report().converged:
            raise SystemExit(f"step {i}: Newton did not converge")
    length = trusty.rods.muscle_length(world, muscle)   # path length (m)
    force = trusty.rods.muscle_force(world, muscle)     # tension (N)
    return length, force


def run_headless(world, upper, fore, rod, muscle, steps: int):
    print(f"muscle rest length {trusty.rods.muscle_length(world, muscle):.3f} m")
    angles = []
    for activation in ACTIVATIONS:
        length, force = run_phase(world, muscle, activation, steps)
        angles.append(forearm_angle(world, fore))
        print(f"activation {activation:.1f}: forearm {angles[-1]:+.1f} deg, "
              f"muscle length {length:.3f} m, force {force:.1f} N")
    if not all(a < b for a, b in zip(angles, angles[1:])):
        raise SystemExit("more activation did not curl the forearm further")


def _register(ps, world, rod, upper, fore):
    up_V, up_F = trusty.affine.surface(world, upper)
    fo_V, fo_F = trusty.affine.surface(world, fore)
    ps_up = ps.register_surface_mesh("upper_arm", np.asarray(up_V),
                                     np.asarray(up_F), color=(0.6, 0.6, 0.65))
    ps_fo = ps.register_surface_mesh("forearm", np.asarray(fo_V),
                                     np.asarray(fo_F), color=(0.6, 0.6, 0.65))
    X = np.asarray(trusty.rods.read_positions(world, rod))
    edges = np.array([[i, i + 1] for i in range(len(X) - 1)], dtype=np.int64)
    net = ps.register_curve_network("muscle", X, edges, color=(0.85, 0.2, 0.2))
    net.set_radius(0.012, relative=False)
    return ps_up, ps_fo, net


def run_polyscope(world, upper, fore, rod, muscle):
    ps = init_polyscope(headless=False)
    ps_up, ps_fo, net = _register(ps, world, rod, upper, fore)
    state = {"i": 0, "playing": True, "act": 0.0}

    def advance():
        trusty.rods.set_muscle_activation(world, muscle, state["act"])
        world.step()
        state["i"] += 1
        ps_up.update_vertex_positions(
            np.asarray(trusty.affine.surface(world, upper)[0]))
        ps_fo.update_vertex_positions(
            np.asarray(trusty.affine.surface(world, fore)[0]))
        net.update_node_positions(
            np.asarray(trusty.rods.read_positions(world, rod)))

    def callback():
        import polyscope.imgui as psim
        _, state["playing"] = psim.Checkbox("play", state["playing"])
        changed, state["act"] = psim.SliderFloat("activation", state["act"], 0.0, 1.0)
        if state["playing"] or changed:
            advance()
        psim.Text(f"step {state['i']}   forearm {forearm_angle(world, fore):+.1f} deg")
        psim.Text(f"muscle: L={trusty.rods.muscle_length(world, muscle):.3f} m  "
                  f"F={trusty.rods.muscle_force(world, muscle):.1f} N")

    ps.set_user_callback(callback)
    ps.show()


def main():
    p = argparse.ArgumentParser(description=__doc__.split("\n")[0])
    p.add_argument("--backend", choices=["auto", "cpu", "accelerate", "cuda"], default="auto")
    p.add_argument("--steps", type=int, default=80,
                   help="steps per activation in the headless run")
    p.add_argument("--no-viewer", action="store_true",
                   help="headless: print the pose at each activation")
    args = p.parse_args()

    world, upper, fore, rod, muscle = build_world(backend=args.backend)
    if args.no_viewer:
        run_headless(world, upper, fore, rod, muscle, args.steps)
    else:
        run_polyscope(world, upper, fore, rod, muscle)


if __name__ == "__main__":
    main()

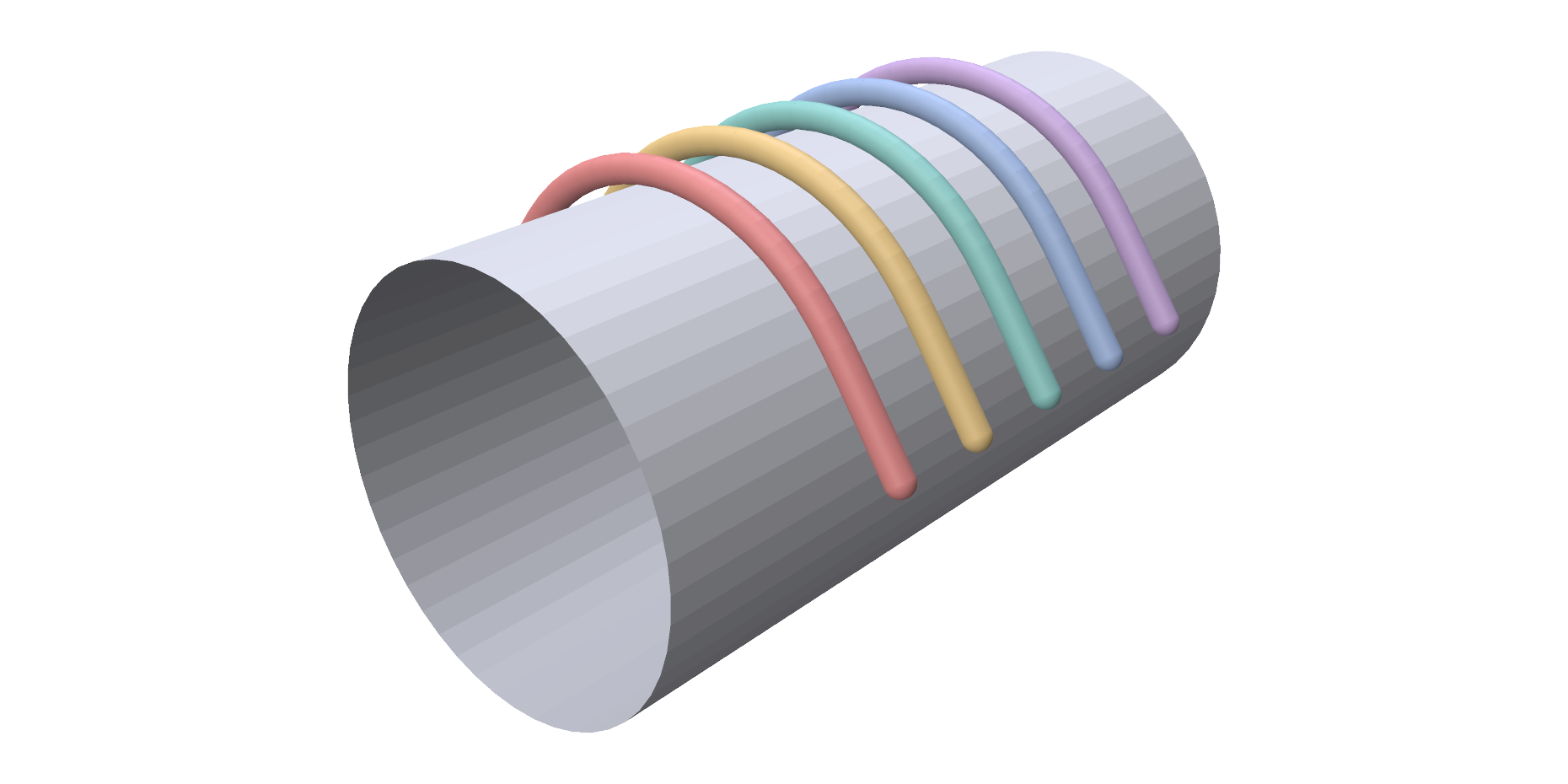

"""Rods wrapping a cylinder.

A row of parallel elastic rods drops onto a fixed cylinder, drapes over it, and
wraps down its sides. Contact treats each rod as a tube of its own radius:
rods stay one radius off the cylinder and two radii off each other. Friction
lets the rods grip and stay wrapped instead of sliding off.

`--num-rods` sets how many rods drop; the rod radius shrinks with the count so
neighbours never overlap along the cylinder. `--cylinder-radius` sizes the
cylinder: a smaller cylinder lets the fixed-length rods wrap further around it.
The headless run prints how close the rods come to the cylinder.

Usage:
    python examples/rods/rod_cylinder_wrap.py
    python examples/rods/rod_cylinder_wrap.py --num-rods 12
    python examples/rods/rod_cylinder_wrap.py --cylinder-radius 0.15
    python examples/rods/rod_cylinder_wrap.py --no-viewer --steps 240
"""

from __future__ import annotations

import argparse
import sys
from pathlib import Path

import numpy as np

import trusty

sys.path.insert(0, str(Path(__file__).resolve().parent.parent))
from utils import init_polyscope   # noqa: E402


N, LENGTH  = 30, 1.0        # rod resolution; length > cylinder diameter -> wraps
CYL_R      = 0.3           # default cylinder radius (see --cylinder-radius)
Y_SPAN     = 0.6            # rods spread over y in [-Y_SPAN/2, +Y_SPAN/2]
MAX_RADIUS = 0.02
DROP_ABOVE = 0.15          # rod centerline starts this far above the cylinder top


def make_cylinder(R: float, y0: float, y1: float, na: int, nl: int):
    """Lateral surface of a cylinder of radius R along the y-axis."""
    ys = np.linspace(y0, y1, nl + 1)
    th = 2.0 * np.pi * np.arange(na) / na
    V = np.zeros(((nl + 1) * na, 3))
    for l, y in enumerate(ys):
        V[l * na:(l + 1) * na] = np.stack(
            [R * np.cos(th), np.full(na, y), R * np.sin(th)], axis=1)
    F = []
    for l in range(nl):
        for a in range(na):
            a1 = (a + 1) % na
            v00, v01 = l * na + a, l * na + a1
            v10, v11 = (l + 1) * na + a, (l + 1) * na + a1
            F.append([v00, v10, v11])
            F.append([v00, v11, v01])
    return V, np.asarray(F, dtype=np.int32)


def rod_radius(num_rods: int) -> float:
    """Radius that keeps neighbouring rods clear: 2*radius stays below the
    y-spacing, capped at MAX_RADIUS so few-rod worlds keep the tuned size."""
    spacing = Y_SPAN / (num_rods - 1) if num_rods > 1 else Y_SPAN
    return min(MAX_RADIUS, 0.3 * spacing)


def build_world(backend: str = "auto", *, num_rods: int = 5, cyl_r: float = CYL_R):
    trusty.check_capabilities("rods", "contact")
    radius = rod_radius(num_rods)

    world = trusty.World(backend=backend, timestep=1.0 / 120.0, time_stepping="bdf2")
    trusty.contact.enable(world, trusty.contact.Config(
        dhat=min(0.01, 0.5 * radius),   # contact band scales with the rod
    ))
    mu = 0.4    # friction so the rods grip and stay wrapped: the cylinder's and each rod's
    Vc, Fc = make_cylinder(cyl_r, -0.6, 0.6, 48, 24)
    trusty.contact.add_wall(world, "cylinder", Vc, Fc, friction_mu=mu)

    mat = trusty.rods.RodMaterial()
    mat.youngs_modulus = 1e6        # floppy enough to drape around the cylinder
    mat.radius = radius             # also the rod's thickness in contact
    mat.density = 1000.0

    ids = []
    for ri in range(num_rods):
        y = -0.5 * Y_SPAN + Y_SPAN * ri / (num_rods - 1) if num_rods > 1 else 0.0
        X = np.zeros((N, 3))
        X[:, 0] = np.linspace(0.0, LENGTH, N) - LENGTH / 2
        X[:, 1] = y
        X[:, 2] = cyl_r + DROP_ABOVE
        ids.append(trusty.rods.add_rod(world, X, mat, friction_mu=mu))

    return world, ids, radius, (Vc, Fc)


def _rod_edges(n: int) -> np.ndarray:
    return np.array([[i, i + 1] for i in range(n - 1)], dtype=np.int64)


def _register_visuals(ps, world, ids, radius, cylinder):
    Vc, Fc = cylinder
    ps.register_surface_mesh("cylinder", Vc, Fc, color=(0.6, 0.6, 0.6))
    nets = []
    for k, rid in enumerate(ids):
        X   = np.asarray(trusty.rods.read_positions(world, rid))
        net = ps.register_curve_network(f"rod{k}", X, _rod_edges(len(X)),
                                        color=(0.85, 0.55, 0.25))
        net.set_radius(radius, relative=False)
        nets.append(net)
    return nets


def _update(nets, world, ids):
    for net, rid in zip(nets, ids):
        net.update_node_positions(
            np.asarray(trusty.rods.read_positions(world, rid)))


def run_polyscope(world, ids, radius, cylinder, steps: int):
    ps   = init_polyscope(headless=False)
    nets = _register_visuals(ps, world, ids, radius, cylinder)
    state = {"i": 0, "playing": False}

    def advance_one():
        if state["i"] < steps:
            world.step()
            state["i"] += 1
            _update(nets, world, ids)

    def callback():
        import polyscope.imgui as psim
        _, state["playing"] = psim.Checkbox("play", state["playing"])
        psim.SameLine()
        if psim.Button("step"):
            advance_one()
        elif state["playing"]:
            advance_one()
        psim.Text(f"step {state['i']} / {steps}")
        report = world.last_report()
        psim.Text(
            f"last solve: iters={report.iterations}  "
            f"residual={report.final_residual:.3e}  "
            f"{'converged' if report.converged else 'DIVERGED'}")

    ps.set_user_callback(callback)
    ps.show()


def run_headless(world, ids, radius, cyl_r: float, steps: int):
    for i in range(steps):
        world.step()
        if not world.last_report().converged:
            raise SystemExit(f"step {i}: Newton did not converge")
    xs = [np.asarray(trusty.rods.read_positions(world, rid)) for rid in ids]
    gap = min(np.hypot(x[:, 0], x[:, 2]).min() for x in xs) - cyl_r - radius
    low = min(x[:, 2].min() for x in xs)
    print(f"after {steps} steps: closest rod surface {gap * 1e3:.1f} mm off the "
          f"cylinder; rod ends down to z = {low:.3f} m (cylinder axis at z = 0)")


def main():
    parser = argparse.ArgumentParser(description=__doc__.split("\n")[0])
    parser.add_argument("--backend",
                        choices=["auto", "cpu", "accelerate", "cuda"], default="auto")
    parser.add_argument("--steps", type=int, default=360)
    parser.add_argument("--no-viewer", action="store_true",
                        help="headless: print how the rods came to rest")
    parser.add_argument("--num-rods", type=int, default=5)
    parser.add_argument("--cylinder-radius", type=float, default=CYL_R,
                        help="cylinder radius; smaller -> rods wrap further")
    args = parser.parse_args()

    world, ids, radius, cylinder = build_world(
        backend=args.backend, num_rods=args.num_rods, cyl_r=args.cylinder_radius)
    print(f"{args.num_rods} rods on a cylinder (R = {args.cylinder_radius}, "
          f"rod radius = {radius:.4f})")

    if args.no_viewer:
        run_headless(world, ids, radius, args.cylinder_radius, args.steps)
    else:
        run_polyscope(world, ids, radius, cylinder, args.steps)


if __name__ == "__main__":
    main()
