Embedded solids¶

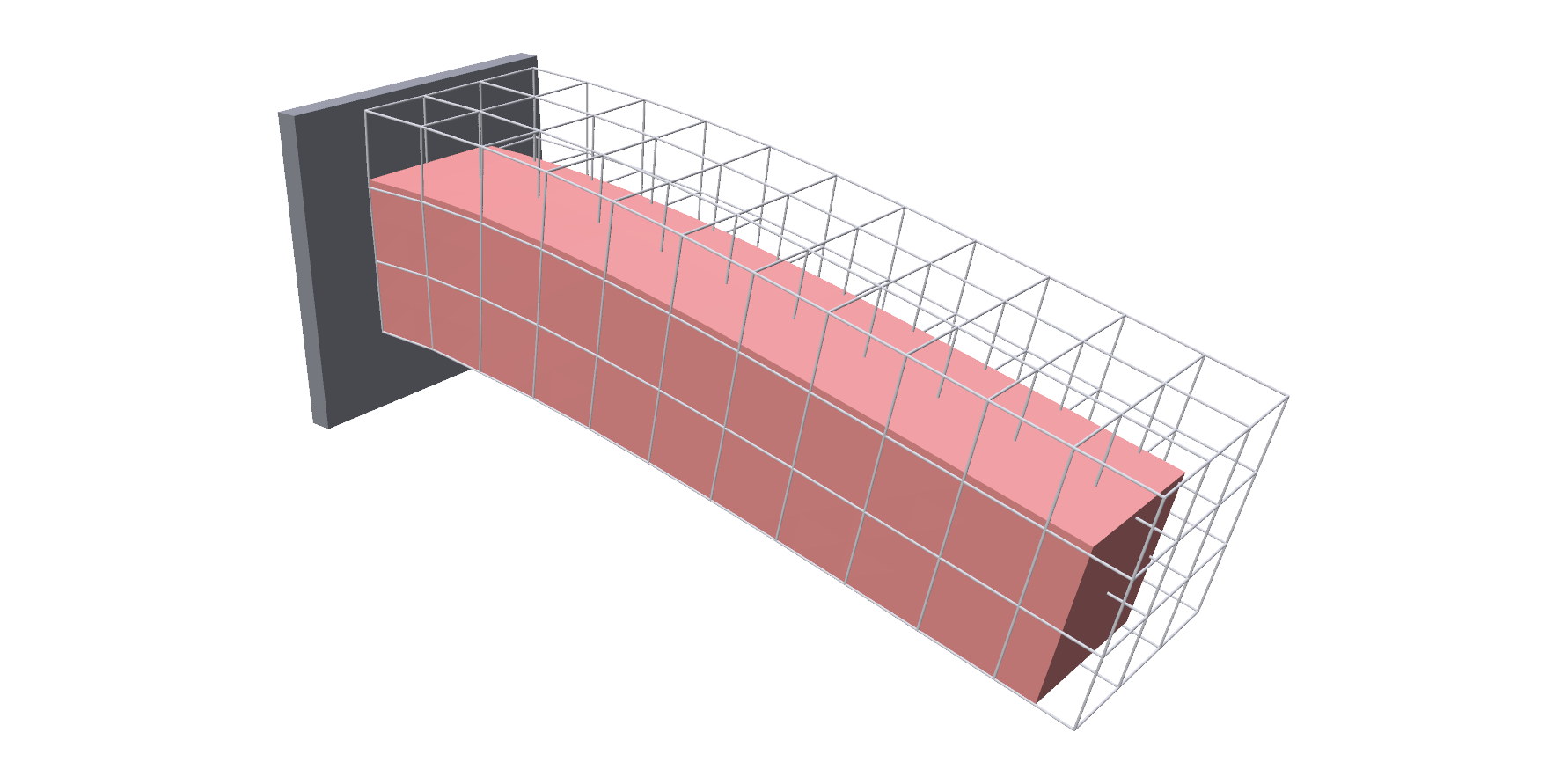

"""Voxelized cantilever sagging under gravity.

A triangle-surface mesh (either a procedurally-generated rectangular bar
or one loaded from disk via --mesh) is voxelized, one end weakly pinned
via Nitsche to the rest positions, and the free end sags under gravity.

Usage:
    python examples/embedded/embedded_cantilever.py                    # built-in bar
    python examples/embedded/embedded_cantilever.py --mesh bunny.obj   # custom mesh
    python examples/embedded/embedded_cantilever.py --no-viewer        # write PNG frames
    python examples/embedded/embedded_cantilever.py --steps 240
    python examples/embedded/embedded_cantilever.py --order q2         # quadratic (Q2) elements
"""

from __future__ import annotations

import argparse
import sys
from pathlib import Path

import numpy as np

import trusty

sys.path.insert(0, str(Path(__file__).resolve().parent.parent))
from utils import (  # noqa: E402
    init_polyscope,
    load_mesh,
    make_bar_trimesh,
    mean_edge_length,
    rescale_mesh,
)

ORDER = trusty.fem.ElementOrder
# CLI order name -> voxel-hex element order (Q1/Q2 Lagrange/Q2 serendipity).
HEX_ORDERS = {
    "linear": ORDER.Linear,
    "q2":     ORDER.Quadratic,
    "q2s":    ORDER.QuadraticSerendipity,
}


# --- Geometry: a simple axis-aligned bar, 1.0 × 0.2 × 0.2 units -----------
BAR_SIZE = (1.0, 0.2, 0.2)
BAR_FACE_RES = (16, 4, 4)   # surface triangulation resolution per dimension

# The voxelizer's hex edge length is derived from the input mesh's average
# surface-edge length multiplied by this factor.
VOXEL_FACTOR = 1.5

# Pin all triangles whose *centroid* sits in the leftmost slice of the
# mesh's x-extent (fraction of (x_max − x_min)). Centroid-based
# selection works for both axis-aligned faces (every centroid coincides
# with x_min) and organic meshes where no single triangle has all three
# vertices in a tight band.
PIN_BAND_FRAC = 5e-2


def pinned_face_indices(V: np.ndarray, F: np.ndarray) -> list[int]:
    """Triangles whose centroid sits in the first `PIN_BAND_FRAC` of the
    mesh's x-extent. Works uniformly for axis-aligned faces (every
    centroid is exactly at x_min) and organic meshes (no dependence on
    vertex-count density)."""
    x_min = float(V[:, 0].min())
    x_max = float(V[:, 0].max())
    band = PIN_BAND_FRAC * (x_max - x_min)
    centroids_x = V[F, 0].mean(axis=1)
    return np.flatnonzero(centroids_x - x_min < band).astype(int).tolist()


def build_world(
    backend: str = "auto",
    *,
    mesh_path: Path | None = None,
    voxel_factor: float = VOXEL_FACTOR,
    gamma: float = 20.0,
    youngs: float = 2e6,
    rescale_to: float | None = None,
    order=ORDER.Linear,
):
    trusty.check_capabilities("embedded")

    if mesh_path is not None:
        V, F = load_mesh(mesh_path)
        if rescale_to is not None:
            V = rescale_mesh(V, rescale_to)
        else:
            # Always translate so bbox min is at origin (gravity axis = z,
            # cantilever axis = x, pin face = -x of bbox).
            V = V - V.min(axis=0)
        bbox = V.max(axis=0) - V.min(axis=0)
        print(f"[mesh] {mesh_path.name}  verts={len(V)}  tris={len(F)}  "
              f"bbox_extent={tuple(round(x, 4) for x in bbox)}")
    else:
        V, F = make_bar_trimesh(BAR_SIZE, BAR_FACE_RES)
        bbox = V.max(axis=0) - V.min(axis=0)

    pin_faces = pinned_face_indices(V, F)
    if not pin_faces:
        raise SystemExit(
            f"No pinned faces found — mesh has no triangle centroids in "
            f"the first {PIN_BAND_FRAC:.1%} of its x-extent "
            f"[{V[:, 0].min():.4f}, {V[:, 0].max():.4f}]. "
            "Bump PIN_BAND_FRAC in the example source.")
    print(f"[pin] {len(pin_faces)} triangles pinned near x_min="
          f"{V[:, 0].min():.4f}")

    avg_edge   = mean_edge_length(V, F)
    voxel_size = voxel_factor * avg_edge
    print(f"[voxelize] mean_edge={avg_edge:.4f}  voxel_size="
          f"{voxel_size:.4f}  (factor={voxel_factor})")

    material = trusty.StableNeoHookean(youngs_modulus=youngs, poisson_ratio=0.4)
    world = trusty.World(backend=backend,
                         timestep=1.0 / 60.0,
                         newton=trusty.NewtonConfig(max_iters=60, tolerance=1e-4),
                         time_stepping="bdf2")
    # V (n, 3) and F (m, 3): the triangle surface. It is filled with hexes
    # of edge voxel_size, which carry the simulation.
    body = trusty.embedded.add_embedded_solid(
        world, V, F, voxel_size=voxel_size, material=material, density=1000.0,
        order=order)

    # Clamp the end-cap triangles to their rest positions.
    trusty.embedded.attach_weak_pin(
        world, body, pin_faces=pin_faces, initial_targets=V.copy(), gamma=gamma)

    return world, body, V, F


def _register_visuals(ps, world, body, show_hexes: bool = True):
    # The deformed input surface: one row per vertex of V, and its triangles.
    V = np.asarray(trusty.embedded.read_embedded_surface(world, body))
    F = np.asarray(trusty.embedded.surface_triangles(world, body))
    ps_mesh = ps.register_surface_mesh("bar", V, F, smooth_shade=False)
    ps_mesh.set_edge_width(1.0)
    ps_mesh.set_color((0.85, 0.55, 0.25))

    ps_hex = None
    if show_hexes:
        # The hex grid that carries the simulation, at its current positions.
        hex_mesh = trusty.fem.read_mesh(world, body)
        ps_hex = ps.register_volume_mesh(
            "voxel hexes",
            np.asarray(hex_mesh.vertices),
            hexes=np.asarray(hex_mesh.hexes))
        ps_hex.set_color((0.45, 0.6, 0.85))
        ps_hex.set_edge_width(1.0)
        ps_hex.set_transparency(0.55)
        ps_mesh.set_transparency(0.85)
    return ps_mesh, ps_hex


def _update_visuals(ps_mesh, ps_hex, world, body):
    ps_mesh.update_vertex_positions(
        np.asarray(trusty.embedded.read_embedded_surface(world, body)))
    if ps_hex is not None:
        ps_hex.update_vertex_positions(
            np.asarray(trusty.fem.read_mesh(world, body).vertices))


def run_polyscope(world, body, steps: int, show_hexes: bool = True):
    ps = init_polyscope(headless=False)
    ps_mesh, ps_hex = _register_visuals(ps, world, body, show_hexes)

    state = {"i": 0, "playing": False}

    def advance_one():
        if state["i"] < steps:
            world.step()
            state["i"] += 1
            _update_visuals(ps_mesh, ps_hex, world, body)

    def callback():
        import polyscope.imgui as psim
        _, state["playing"] = psim.Checkbox("play", state["playing"])
        psim.SameLine()
        if psim.Button("step"):
            advance_one()
        elif state["playing"]:
            advance_one()
        psim.Text(f"step {state['i']} / {steps}")
        rep = world.last_report()
        psim.Text(f"iters={rep.iterations}  res={rep.final_residual:.2e}  "
                  f"{'converged' if rep.converged else 'DIVERGED'}")

    ps.set_user_callback(callback)
    ps.show()


def run_screenshots(world, body, steps: int, out_dir: Path,
                    show_hexes: bool = True):
    """Headless: step the world, write a PNG per frame via polyscope EGL."""
    ps = init_polyscope(headless=True)
    out_dir.mkdir(parents=True, exist_ok=True)
    ps_mesh, ps_hex = _register_visuals(ps, world, body, show_hexes)

    ps.reset_camera_to_home_view()
    ps.look_at(
        camera_location=(1.8, -1.2, 0.9),
        target=(0.5, 0.1, -0.1),
    )

    def snapshot(idx: int):
        ps.screenshot(str(out_dir / f"embedded_{idx:04d}.png"), transparent_bg=False)

    snapshot(0)
    for i in range(1, steps + 1):
        world.step()
        _update_visuals(ps_mesh, ps_hex, world, body)
        snapshot(i)

    rep = world.last_report()
    print(f"Wrote {steps + 1} screenshots to {out_dir}/")
    print(f"Last solve: iters={rep.iterations}  "
          f"residual={rep.final_residual:.3e}  "
          f"{'converged' if rep.converged else 'DIVERGED'}")


def main():
    parser = argparse.ArgumentParser(description=__doc__.split("\n")[0])
    parser.add_argument("--backend",
                        choices=["auto", "cpu", "cuda", "accelerate"], default="auto")
    parser.add_argument("--order", choices=list(HEX_ORDERS), default="linear",
                        help="element order: q1 linear (default), q2 Lagrange, q2s serendipity")
    parser.add_argument("--steps", type=int, default=120)
    parser.add_argument("--no-viewer", action="store_true")
    parser.add_argument("--mesh", type=Path, default=None,
                        help="Load this triangle mesh instead of the "
                             "built-in bar. Any format trimesh reads "
                             "(.obj, .ply, .stl, .glb, …).")
    parser.add_argument("--voxel-factor", type=float, default=VOXEL_FACTOR,
                        help=f"Hex edge length as a multiple of the mesh's "
                             f"mean surface-edge length (default "
                             f"{VOXEL_FACTOR}).")
    parser.add_argument("--gamma", type=float, default=20.0,
                        help="Nitsche dimensionless stabilization "
                             "parameter.")
    parser.add_argument("--youngs", type=float, default=2e6,
                        help="Young's modulus (Pa) for StableNeoHookean.")
    parser.add_argument("--rescale-to", type=float, default=None,
                        help="Rescale the loaded mesh so its longest axis "
                             "spans this many world units. Ignored when "
                             "using the built-in bar.")
    parser.add_argument("--out", type=Path, default=Path("out_embedded"))
    parser.add_argument("--no-hexes", action="store_true",
                        help="Disable the voxel-hex overlay; show only the "
                             "embedded surface.")
    args = parser.parse_args()

    order = HEX_ORDERS[args.order]
    world, body, _V, _F = build_world(
        backend=args.backend,
        mesh_path=args.mesh,
        voxel_factor=args.voxel_factor,
        gamma=args.gamma,
        youngs=args.youngs,
        rescale_to=args.rescale_to,
        order=order,
    )

    # Quadratic embedded bodies have no linear voxel-hex mesh to read back;
    # only the prolongation surface renders.
    show_hexes = not args.no_hexes
    if show_hexes and order != ORDER.Linear:
        print("[viewer] hex overlay unavailable for quadratic elements; "
              "showing embedded surface only.")
        show_hexes = False

    if args.no_viewer:
        run_screenshots(world, body, args.steps, args.out,
                        show_hexes=show_hexes)
    else:
        run_polyscope(world, body, args.steps,
                      show_hexes=show_hexes)


if __name__ == "__main__":
    main()

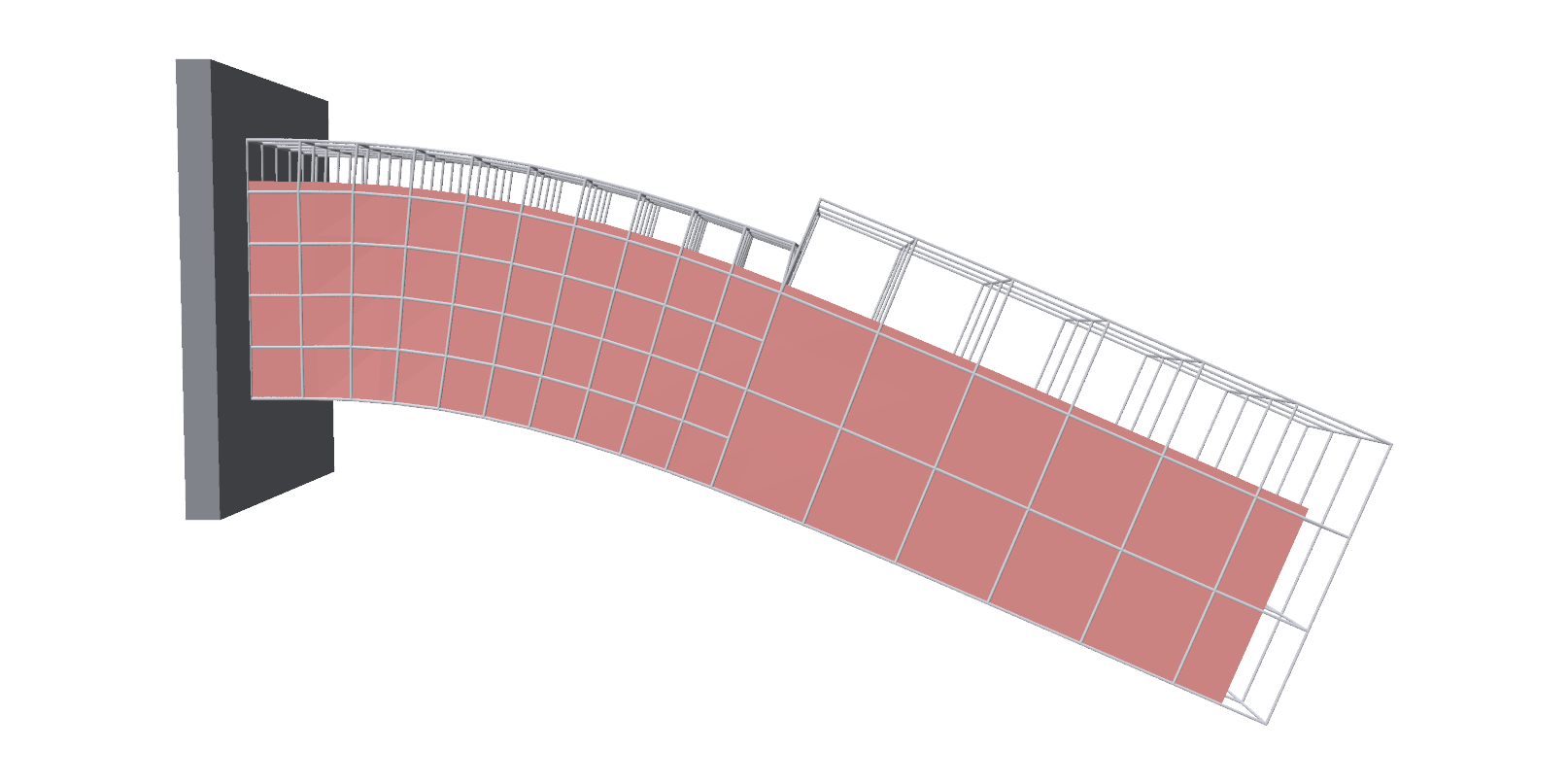

"""Adaptively-voxelized cantilever sagging under gravity.

Same setup as `embedded_cantilever.py`, but the hex grid is refined near the
clamped root -- where a cantilever's bending stress concentrates -- via a
sizing field. `--voxel-factor` sets the *coarsest* cell; the tip stays coarse.
Refinement introduces T-junction hanging nodes, which the solver constrains
to follow their coarser neighbours.

The Nitsche weak pin is a surface energy (not a hard hex-node pin), so hanging
nodes near the root are fine.

Usage:
    python examples/embedded/adaptive_embedded_cantilever.py
    python examples/embedded/adaptive_embedded_cantilever.py --max-level 2
    python examples/embedded/adaptive_embedded_cantilever.py --no-viewer
"""

from __future__ import annotations

import argparse
import sys
from pathlib import Path

import numpy as np

import trusty

sys.path.insert(0, str(Path(__file__).resolve().parent.parent))
from utils import (  # noqa: E402
    load_mesh,
    make_bar_trimesh,
    mean_edge_length,
    rescale_mesh,
)

# Reuse the geometry constants, pin selection, and viewer/screenshot drivers.
from embedded_cantilever import (  # noqa: E402
    BAR_FACE_RES,
    BAR_SIZE,
    VOXEL_FACTOR,
    pinned_face_indices,
    run_polyscope,
    run_screenshots,
)

# Fraction of the x-extent (from the clamped root) refined to the finest level.
REFINE_BAND_FRAC = 0.4


def build_world(
    backend: str = "auto",
    *,
    mesh_path: Path | None = None,
    voxel_factor: float = VOXEL_FACTOR,
    max_level: int = 1,
    gamma: float = 20.0,
    youngs: float = 2e6,
    rescale_to: float | None = None,
):
    trusty.check_capabilities("embedded")

    if mesh_path is not None:
        V, F = load_mesh(mesh_path)
        V = rescale_mesh(V, rescale_to) if rescale_to is not None else V - V.min(axis=0)
        print(f"[mesh] {mesh_path.name}  verts={len(V)}  tris={len(F)}")
    else:
        V, F = make_bar_trimesh(BAR_SIZE, BAR_FACE_RES)

    pin_faces = pinned_face_indices(V, F)
    if not pin_faces:
        raise SystemExit("No pinned faces found near x_min; bump PIN_BAND_FRAC.")

    coarse = voxel_factor * mean_edge_length(V, F)
    fine   = coarse / (2 ** max_level)

    # Refine the band nearest the clamped root; coarse elsewhere.
    x_min = float(V[:, 0].min())
    x_ext = float(V[:, 0].max()) - x_min

    # Target hex edge length at world point p: fine near the root.
    def sizing(p, x_min=x_min, x_ext=x_ext, fine=fine, coarse=coarse):
        return fine if (p[0] - x_min) < REFINE_BAND_FRAC * x_ext else coarse

    material = trusty.StableNeoHookean(youngs_modulus=youngs, poisson_ratio=0.4)
    world    = trusty.World(backend=backend,
                            timestep=1.0 / 60.0,
                            newton=trusty.NewtonConfig(max_iters=60, tolerance=1e-4),
                            time_stepping="bdf2")
    body     = trusty.embedded.add_embedded_solid(
        world, V, F, voxel_size=coarse, material=material, density=1000.0,
        sizing_field=sizing, max_level=max_level)

    n_nodes = np.asarray(trusty.fem.read_mesh(world, body).vertices).shape[0]
    print(f"[voxelize] coarse={coarse:.4f}  finest={fine:.4f} "
          f"(max_level={max_level})  {n_nodes} hex nodes")

    trusty.embedded.attach_weak_pin(
        world, body, pin_faces=pin_faces, initial_targets=V.copy(), gamma=gamma)


    return world, body, V, F


def main():
    parser = argparse.ArgumentParser(description=__doc__.split("\n")[0])
    parser.add_argument("--backend",
                        choices=["auto", "cpu", "cuda", "accelerate"], default="auto")
    parser.add_argument("--steps", type=int, default=120)
    parser.add_argument("--no-viewer", action="store_true")
    parser.add_argument("--mesh", type=Path, default=None)
    parser.add_argument("--voxel-factor", type=float, default=VOXEL_FACTOR,
                        help="Coarsest hex edge as a multiple of the mesh's "
                             "mean surface-edge length.")
    parser.add_argument("--max-level", type=int, default=1,
                        help="Refinement depth near the root (finest = "
                             "coarsest / 2^max_level).")
    parser.add_argument("--gamma", type=float, default=20.0)
    parser.add_argument("--youngs", type=float, default=2e6)
    parser.add_argument("--rescale-to", type=float, default=None)
    parser.add_argument("--out", type=Path, default=Path("out_adaptive_embedded"))
    parser.add_argument("--no-hexes", action="store_true")
    args = parser.parse_args()

    world, body, _V, _F = build_world(
        backend=args.backend,
        mesh_path=args.mesh,
        voxel_factor=args.voxel_factor,
        max_level=args.max_level,
        gamma=args.gamma,
        youngs=args.youngs,
        rescale_to=args.rescale_to,
    )

    if args.no_viewer:
        run_screenshots(world, body, args.steps, args.out,
                        show_hexes=not args.no_hexes)
    else:
        run_polyscope(world, body, args.steps, show_hexes=not args.no_hexes)


if __name__ == "__main__":
    main()

"""Cantilever beam with a moving Nitsche pin at the free end.

A high-res rectangular bar is voxelized, the left face Nitsche-pinned
at rest, and the right face Nitsche-pinned to a target that follows a
vertical sinusoid. The beam bends elastically as the right end is
driven up and down.

Defaults open a polyscope viewer; ``--no-viewer`` writes PNG frames
instead.

Usage:
    python examples/embedded/moving_nitsche.py
    python examples/embedded/moving_nitsche.py --steps 360
    python examples/embedded/moving_nitsche.py --no-viewer
"""

from __future__ import annotations

import argparse
import sys
from pathlib import Path

import numpy as np

import trusty

sys.path.insert(0, str(Path(__file__).resolve().parent.parent))
from utils import init_polyscope, make_bar_trimesh, mean_edge_length  # noqa: E402


# --- Geometry & drive --------------------------------------------------
BAR_SIZE     = (1.0, 0.2, 0.2)
BAR_FACE_RES = (16, 4, 4)        # surface triangulation per dimension
VOXEL_FACTOR = 1.5               # hex edge ≈ VOXEL_FACTOR * mean tri edge

GAMMA            = 50.0
DRIVE_AMP        = 0.30
DRIVE_PERIOD_STEPS = 60

# Centroid x-band (fraction of x-extent) within which a triangle is
# considered to lie on the corresponding end face.
PIN_BAND_FRAC = 5e-2


def _end_face_indices(V: np.ndarray, F: np.ndarray):
    """Return (left_face_tris, right_face_tris) — triangle indices into
    F whose centroid sits in the leftmost/rightmost band of x-extent."""
    x_min = float(V[:, 0].min())
    x_max = float(V[:, 0].max())
    band  = PIN_BAND_FRAC * (x_max - x_min)
    cx    = V[F, 0].mean(axis=1)
    left  = np.flatnonzero(cx - x_min < band).astype(int).tolist()
    right = np.flatnonzero(x_max - cx < band).astype(int).tolist()
    return left, right


def _right_face_verts(V: np.ndarray, F: np.ndarray, right_faces):
    """Indices into V that participate in any right-face triangle."""
    return sorted({int(v) for f in right_faces for v in F[f]})


def build_world(backend: str):
    trusty.check_capabilities("embedded")

    V, F = make_bar_trimesh(BAR_SIZE, BAR_FACE_RES)
    left_faces, right_faces = _end_face_indices(V, F)
    right_verts = _right_face_verts(V, F, right_faces)
    if not left_faces or not right_faces:
        raise SystemExit(
            "moving_nitsche: failed to identify both end-face triangle "
            "groups — bump PIN_BAND_FRAC or increase BAR_FACE_RES.")

    avg_edge   = mean_edge_length(V, F)
    voxel_size = VOXEL_FACTOR * avg_edge

    world = trusty.World(backend=backend,
                         timestep=1.0 / 60.0,
                         gravity=(0.0, 0.0, 0.0),
                         newton=trusty.NewtonConfig(max_iters=80, tolerance=1e-6))
    mat   = trusty.StableNeoHookean(youngs_modulus=2e6, poisson_ratio=0.4)
    body  = trusty.embedded.add_embedded_solid(
        world, V, F, voxel_size=voxel_size, material=mat, density=1000.0)

    trusty.embedded.attach_weak_pin(
        world, body,
        pin_faces=left_faces + right_faces,
        initial_targets=V.copy(),
        gamma=GAMMA)


    print(f"[moving_nitsche] bar={BAR_SIZE}  surface_verts={len(V)}  "
          f"surface_tris={len(F)}  voxel_size={voxel_size:.4f}  "
          f"left_pinned={len(left_faces)} tris  "
          f"right_pinned={len(right_faces)} tris")

    return world, body, V, F, right_verts


def prescribed_targets(step: int, V_rest: np.ndarray, right_verts):
    """Hold all surface verts at rest, except the right-face verts —
    those get pulled up/down along z by a sinusoid."""
    phase = (2 * np.pi * step) / DRIVE_PERIOD_STEPS
    dz    = DRIVE_AMP * np.sin(phase)
    targets = V_rest.copy()             # one row per surface vertex
    targets[right_verts, 2] += dz
    return targets, dz


def _register_visuals(ps, world, body, F, V, right_verts):
    surf = np.asarray(trusty.embedded.read_embedded_surface(world, body)).copy()
    ps_mesh = ps.register_surface_mesh("beam", surf, F, smooth_shade=False)
    ps_mesh.set_color((0.85, 0.55, 0.25))
    ps_mesh.set_edge_width(1.0)
    ps_target = ps.register_point_cloud(
        "right_targets", V[right_verts].copy(), radius=0.018,
        color=(1.0, 0.4, 0.2))
    return ps_mesh, ps_target


def run_polyscope(backend: str, n_steps: int):
    ps = init_polyscope(headless=False)
    world, body, V, F, right_verts = build_world(backend)
    ps_mesh, ps_target = _register_visuals(ps, world, body, F, V, right_verts)

    state = {"i": 0, "playing": True}

    def callback():
        import polyscope.imgui as psim
        _, state["playing"] = psim.Checkbox("play", state["playing"])
        psim.SameLine()
        if psim.Button("step") or state["playing"]:
            if state["i"] < n_steps:
                targets, _dz = prescribed_targets(state["i"], V, right_verts)
                trusty.embedded.set_pin_targets(world, body, targets)
                world.step()
                state["i"] += 1
                ps_mesh.update_vertex_positions(np.asarray(
                    trusty.embedded.read_embedded_surface(world, body)))
                ps_target.update_point_positions(targets[right_verts])
        psim.Text(f"step {state['i']} / {n_steps}")
        rep = world.last_report()
        psim.Text(
            f"last solve: iters={rep.iterations}  "
            f"residual={rep.final_residual:.3e}  "
            f"{'converged' if rep.converged else 'DIVERGED'}")

    ps.set_user_callback(callback)
    ps.show()


def run_screenshots(backend: str, n_steps: int, out_dir: Path):
    ps = init_polyscope(headless=True)
    out_dir.mkdir(parents=True, exist_ok=True)

    world, body, V, F, right_verts = build_world(backend)
    ps_mesh, ps_target = _register_visuals(ps, world, body, F, V, right_verts)

    Lx = BAR_SIZE[0]
    ps.reset_camera_to_home_view()
    ps.look_at(camera_location=(0.5 * Lx, -2.0, 0.5),
               target=(0.5 * Lx, 0.0, 0.0))

    def snapshot(idx: int):
        ps.screenshot(str(out_dir / f"moving_nitsche_{idx:04d}.png"),
                      transparent_bg=False)

    snapshot(0)
    last_residual = float("nan")
    for i in range(n_steps):
        targets, _dz = prescribed_targets(i, V, right_verts)
        trusty.embedded.set_pin_targets(world, body, targets)
        world.step()
        last_residual = world.last_report().final_residual
        ps_mesh.update_vertex_positions(np.asarray(
            trusty.embedded.read_embedded_surface(world, body)))
        ps_target.update_point_positions(targets[right_verts])
        snapshot(i + 1)

    print(f"Wrote {n_steps + 1} screenshots to {out_dir}/")
    print(f"Last residual: {last_residual:.3e}")


def main():
    ap = argparse.ArgumentParser(description=__doc__.split("\n")[0])
    ap.add_argument("--backend",
                    choices=["auto", "cpu", "cuda", "accelerate"], default="auto")
    ap.add_argument("--steps", type=int, default=180)
    ap.add_argument("--no-viewer", action="store_true")
    ap.add_argument("--out", type=Path, default=Path("out_moving_nitsche"),
                    help="Directory to write PNG frames in --no-viewer mode.")
    args = ap.parse_args()

    if args.no_viewer:
        run_screenshots(args.backend, args.steps, args.out)
    else:
        run_polyscope(args.backend, args.steps)


if __name__ == "__main__":
    main()

"""Press-fit: a stiff sleeve relaxing onto an undersized soft core.

Two embedded solids in contact. The sleeve's bore is *smaller* than the
core, so seating it directly would start interpenetrating, and contact needs
a start without overlap. Instead the sleeve is inflated off its rest
shape with `fem.apply_affine_transform(...)`: current
positions scale up, rest does not. It therefore begins contact-free but
strained, and quasi-static relaxation pulls it back toward its unchanged rest,
gripping the core through contact and friction.

That inflate-then-relax trick is the general way to set up an interference fit
without ever authoring a penetrating state.

The core's top cap is held by a weak pin that acts on the smooth input
surface rather than on the hex nodes. `--release-at` detaches it
mid-run via `embedded.detach_weak_pin`, leaving a free boundary from that step
on, so you can watch the assembly settle unconstrained.

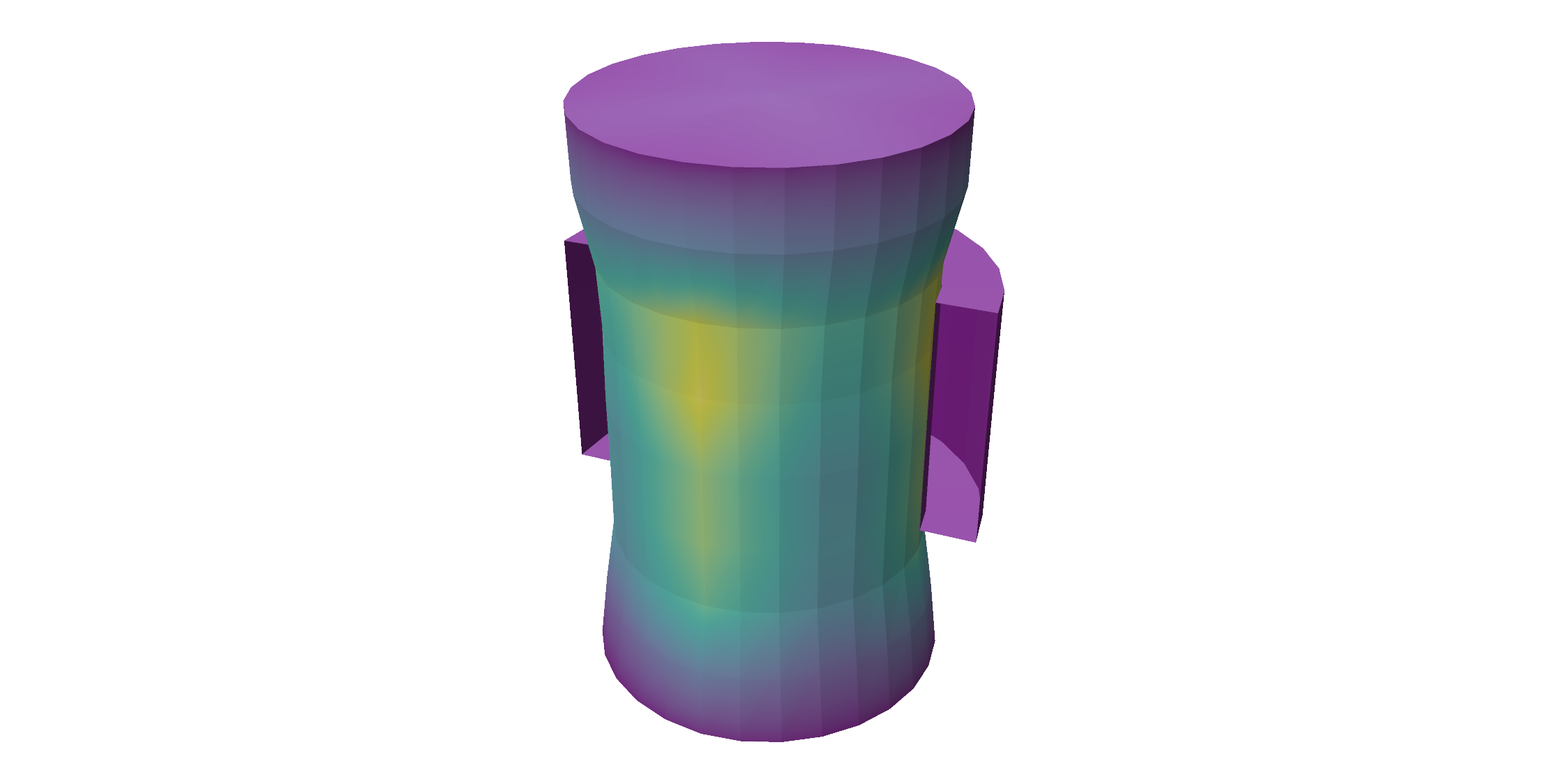

Readouts come back on the *input* surface, not the hex grid: strain energy
density is computed per node and mapped onto the input surface with
`embedded.prolong_nodal_field`.

Usage:
    python examples/embedded/interference_fit.py
    python examples/embedded/interference_fit.py --no-viewer --steps 120
    python examples/embedded/interference_fit.py --interference 0.15
    python examples/embedded/interference_fit.py --release-at 60
    python examples/embedded/interference_fit.py --backend accelerate
"""

from __future__ import annotations

import argparse
import sys
from pathlib import Path

import numpy as np

import trusty

sys.path.insert(0, str(Path(__file__).resolve().parent.parent))
from utils import init_polyscope  # noqa: E402

# Geometry (meters). The core is a capsule-ish cylinder; the sleeve is an
# open-ended tube whose bore is `interference` smaller than the core radius.
CORE_RADIUS   = 0.05
CORE_HEIGHT   = 0.16
SLEEVE_LENGTH = 0.07
SLEEVE_WALL   = 0.016

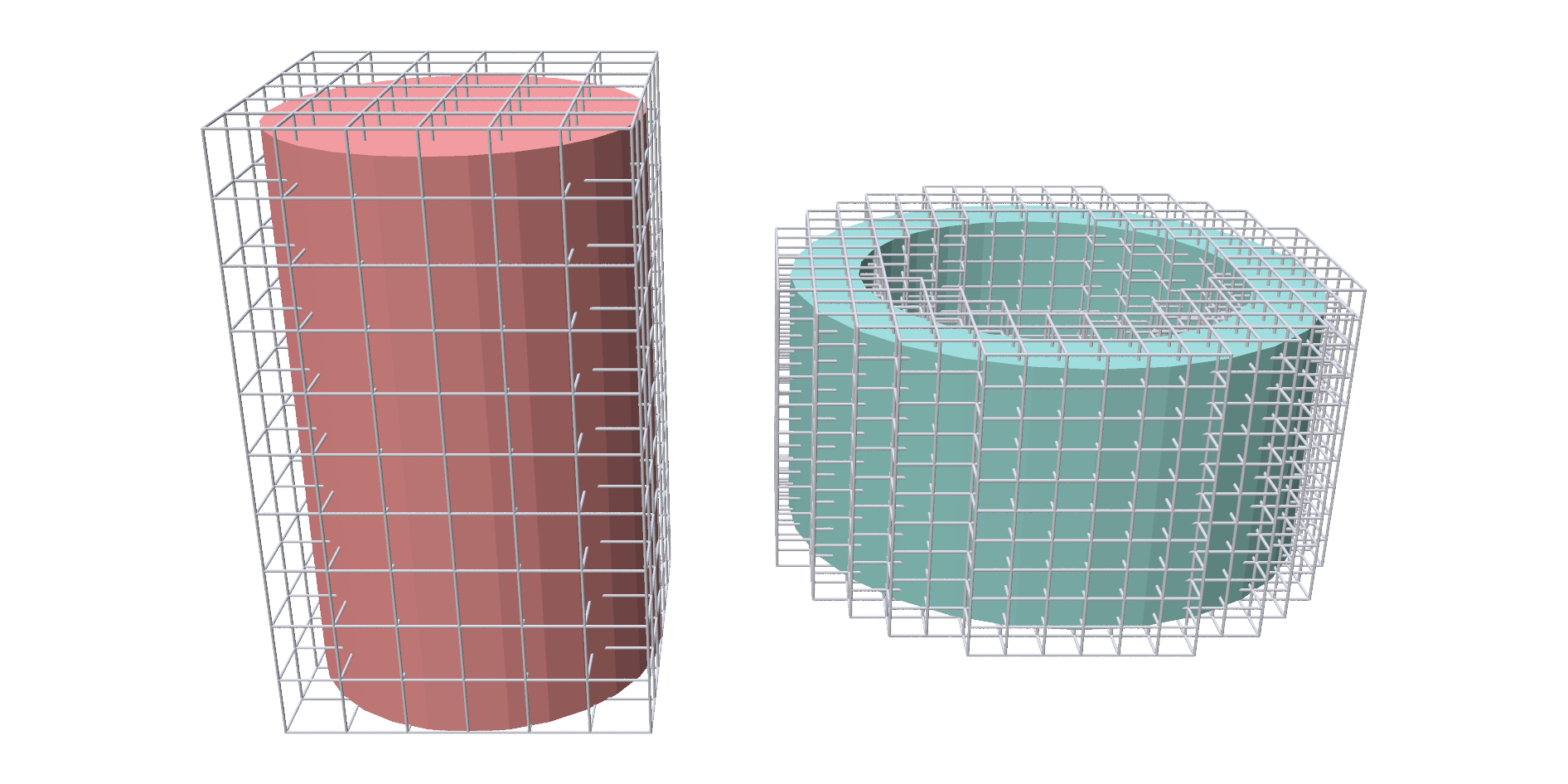

# Voxel edges are set in absolute terms, not from the input triangle size.
# `add_embedded_solid` fills the inside of the surface with hexes, so a
# thin-walled tube needs at least ~2 cells THROUGH the wall; coarser, and it
# voxelizes into a solid blob spanning the bore.
VOXEL_CORE   = CORE_RADIUS / 3.0
VOXEL_SLEEVE = SLEEVE_WALL / 2.0

# Soft core, stiff sleeve -- the sleeve should behave near-rigidly against it
# while staying well conditioned for the solver.
CORE_E,   CORE_NU,   CORE_RHO   = 3.0e5, 0.35, 1.0e3
SLEEVE_E, SLEEVE_NU, SLEEVE_RHO = 8.0e7, 0.30, 9.0e2

# Both bodies are sampled on the same angular stations, so their radii can be
# compared station by station (see `fit_radii`).
N_THETA = 28

PIN_TOP_FRAC = 0.15    # fraction of the core's height held by the weak pin
PIN_GAMMA    = 40.0

DHAT  = 2.0e-4
KAPPA = 1.0e6
MU    = 0.2


def cylinder_trimesh(radius, height, n_theta=N_THETA, n_z=8, z0=0.0):
    """Closed cylinder (side + both caps) as a triangle soup, axis = +z."""
    th = np.linspace(0.0, 2.0 * np.pi, n_theta, endpoint=False)
    zs = np.linspace(z0, z0 + height, n_z + 1)
    ring = np.stack([radius * np.cos(th), radius * np.sin(th)], axis=1)

    V = [np.column_stack([np.tile(ring, (len(zs), 1)),
                          np.repeat(zs, n_theta)])]
    V.append(np.array([[0.0, 0.0, zs[0]], [0.0, 0.0, zs[-1]]]))
    V = np.vstack(V)
    bot_c, top_c = len(V) - 2, len(V) - 1

    F = []
    for k in range(len(zs) - 1):          # side quads -> 2 tris
        a, b = k * n_theta, (k + 1) * n_theta
        for i in range(n_theta):
            j = (i + 1) % n_theta
            F.append([a + i, a + j, b + j])
            F.append([a + i, b + j, b + i])
    for i in range(n_theta):              # caps (outward winding)
        j = (i + 1) % n_theta
        F.append([bot_c, j, i])
        F.append([top_c, (len(zs) - 1) * n_theta + i,
                  (len(zs) - 1) * n_theta + j])
    return V, np.asarray(F, dtype=np.int32)


def tube_trimesh(r_inner, wall, length, n_theta=N_THETA, n_z=4, z0=0.0):
    """Open-ended tube (inner + outer walls, annular end caps), axis = +z."""
    th = np.linspace(0.0, 2.0 * np.pi, n_theta, endpoint=False)
    zs = np.linspace(z0, z0 + length, n_z + 1)
    c, s = np.cos(th), np.sin(th)

    def shell(radius):
        ring = np.stack([radius * c, radius * s], axis=1)
        return np.column_stack([np.tile(ring, (len(zs), 1)),
                                np.repeat(zs, n_theta)])

    n_shell = len(zs) * n_theta
    V = np.vstack([shell(r_inner), shell(r_inner + wall)])

    F = []
    for k in range(len(zs) - 1):
        a, b = k * n_theta, (k + 1) * n_theta
        for i in range(n_theta):
            j = (i + 1) % n_theta
            # Inner wall faces inward (reversed), outer faces outward.
            F.append([a + i, b + j, a + j])
            F.append([a + i, b + i, b + j])
            oa, ob = a + n_shell, b + n_shell
            F.append([oa + i, oa + j, ob + j])
            F.append([oa + i, ob + j, ob + i])
    for i in range(n_theta):              # annular caps
        j = (i + 1) % n_theta
        lo_i, lo_j = i, j
        F.append([lo_i, lo_j, lo_j + n_shell])
        F.append([lo_i, lo_j + n_shell, lo_i + n_shell])
        hi = (len(zs) - 1) * n_theta
        F.append([hi + i, hi + j + n_shell, hi + j])
        F.append([hi + i, hi + i + n_shell, hi + j + n_shell])
    return V, np.asarray(F, dtype=np.int32)


def build_world(args):
    trusty.check_capabilities("embedded", "contact")

    V_core, F_core = cylinder_trimesh(CORE_RADIUS, CORE_HEIGHT)
    # Bore is undersized by `interference` (a fraction of the core radius), so
    # at rest the sleeve cannot be placed around the core without overlap.
    r_bore = CORE_RADIUS * (1.0 - args.interference)
    z_sleeve = 0.5 * (CORE_HEIGHT - SLEEVE_LENGTH)
    V_slv, F_slv = tube_trimesh(r_bore, SLEEVE_WALL, SLEEVE_LENGTH, z0=z_sleeve)

    world = trusty.World(backend=args.backend,
                         timestep=1.0 / 100.0,
                         gravity=(0.0, 0.0, 0.0),
                         time_stepping="quasi_static",
                         newton=trusty.NewtonConfig(max_iters=args.newton_iters, tolerance=1e-4))
    trusty.contact.enable(world, trusty.contact.Config(dhat=DHAT, kappa=KAPPA))
    core_mat = trusty.StableNeoHookean(youngs_modulus=CORE_E, poisson_ratio=CORE_NU)
    slv_mat = trusty.StableNeoHookean(youngs_modulus=SLEEVE_E, poisson_ratio=SLEEVE_NU)

    core = trusty.embedded.add_embedded_solid(
        world, V_core, F_core, voxel_size=VOXEL_CORE,
        material=core_mat, density=CORE_RHO, friction_mu=MU)
    sleeve = trusty.embedded.add_embedded_solid(
        world, V_slv, F_slv, voxel_size=VOXEL_SLEEVE,
        material=slv_mat, density=SLEEVE_RHO, friction_mu=MU)

    # Hold the core's top cap so the assembly has something to react against.
    z_hi = V_core[:, 2].max() - PIN_TOP_FRAC * CORE_HEIGHT
    pin_faces = [int(f) for f in range(len(F_core))
                 if V_core[F_core[f]][:, 2].min() >= z_hi]
    trusty.embedded.attach_weak_pin(
        world, core, pin_faces=pin_faces, initial_targets=V_core.copy(),
        gamma=PIN_GAMMA)

    # Inflate the sleeve off its rest shape so it starts clear of the core:
    # current positions scale radially, rest positions do not. The relaxation
    # then drives it back onto that (unchanged) undersized rest.
    clearance = (CORE_RADIUS + 2.0 * args.clearance_margin) / r_bore
    A = np.diag([clearance, clearance, 1.0])
    trusty.fem.apply_affine_transform(world, sleeve, A, (0.0, 0.0, 0.0))


    print(f"[setup] core {len(V_core)} verts / sleeve {len(V_slv)} verts  "
          f"interference={args.interference:.0%}  inflate={clearance:.3f}x  "
          f"pinned {len(pin_faces)} core faces")
    return world, core, sleeve


def surface_energy(world, body):
    """Strain energy density (unit material) on the body's input surface."""
    # One value per hex node ...
    nodal = trusty.fem.read_strain_energy_density(world, body,
                                                  unit_material=True)
    # ... interpolated to one value per vertex of the input surface.
    return trusty.embedded.prolong_nodal_field(world, body, nodal)


def fit_radii(world, core, sleeve):
    """(core radius, sleeve-bore radius) at the tightest angular station.

    Their difference is the live contact gap: it must stay >= 0, since contact
    never lets the two surfaces cross.

    Compared station by station rather than globally. Both bodies are faceted
    surfaces of revolution, so a global max core radius against a global min
    bore radius differences one polygon's circumradius against another's
    inradius. That bias is R * (1 - cos(pi / N_THETA)) per body -- several
    millimetres here, an order of magnitude more than the clearance being
    measured, and it reports a crossing when the surfaces are still millimetres
    apart.
    """
    Vc = np.asarray(trusty.embedded.read_embedded_surface(world, core))
    Vs = np.asarray(trusty.embedded.read_embedded_surface(world, sleeve))
    band = (Vc[:, 2] > Vs[:, 2].min()) & (Vc[:, 2] < Vs[:, 2].max())
    if not band.any():
        return float("nan"), float("nan")

    def station(V):
        return np.rint(np.arctan2(V[:, 1], V[:, 0])
                       / (2.0 * np.pi / N_THETA)).astype(int) % N_THETA

    r_core = np.linalg.norm(Vc[band, :2], axis=1)
    r_bore = np.linalg.norm(Vs[:, :2], axis=1)
    s_core, s_bore = station(Vc[band]), station(Vs)

    tightest = (float("nan"), float("nan"))
    worst = -np.inf
    for k in range(N_THETA):
        c, b = r_core[s_core == k], r_bore[s_bore == k]
        if not c.size or not b.size:
            continue
        if c.max() - b.min() > worst:
            worst = c.max() - b.min()
            tightest = (float(c.max()), float(b.min()))
    return tightest


def step_once(world, core, sleeve, state, args):
    """Advance one step, detaching the pin on the scheduled step."""
    if state["i"] == args.release_at and not trusty.embedded.pin_detached(world, core):
        trusty.embedded.detach_weak_pin(world, core)  # free from the next step
        print(f"[step {state['i']:4d}] weak pin detached -- free boundary")

    world.step()
    rep = world.last_report()
    if state["i"] % 10 == 0:
        r_core, r_bore = fit_radii(world, core, sleeve)
        print(f"[step {state['i']:4d}] iters={rep.iterations:3d} "
              f"res={rep.final_residual:.2e}  "
              f"core r={r_core * 1e3:6.2f} mm  "
              f"gap={(r_bore - r_core) * 1e3:+5.2f} mm  "
              f"core psi_max={surface_energy(world, core).max():.4g}")
    state["i"] += 1


def report_grip(world, core, sleeve):
    """With a sleeve this much stiffer than the core, the sleeve returns nearly
    to its rest bore and the interference is taken up almost entirely by the
    core compressing -- so the interesting number is how far the core was
    squeezed, not where the sleeve ended up."""
    r_core, r_bore = fit_radii(world, core, sleeve)
    squeeze = (CORE_RADIUS - r_core) / CORE_RADIUS
    print(f"[done] core radius {CORE_RADIUS * 1e3:.2f} -> {r_core * 1e3:.2f} mm "
          f"({squeeze:.1%} compression), sleeve bore {r_bore * 1e3:.2f} mm, "
          f"gap {(r_bore - r_core) * 1e3:+.2f} mm")
    if r_bore < r_core - 1e-9:
        raise SystemExit("surfaces crossed -- contact was not enforced")


def run_polyscope(world, core, sleeve, args):
    ps = init_polyscope(headless=False)
    read_V = trusty.embedded.read_embedded_surface
    read_F = trusty.embedded.surface_triangles
    m_core = ps.register_surface_mesh(
        "core", np.asarray(read_V(world, core)), np.asarray(read_F(world, core)))
    m_slv = ps.register_surface_mesh(
        "sleeve", np.asarray(read_V(world, sleeve)), np.asarray(read_F(world, sleeve)))

    def refresh():
        m_core.update_vertex_positions(np.asarray(read_V(world, core)))
        m_slv.update_vertex_positions(np.asarray(read_V(world, sleeve)))
        m_core.add_scalar_quantity("strain energy", surface_energy(world, core),
                                   enabled=True, cmap="turbo")
        m_slv.add_scalar_quantity("strain energy", surface_energy(world, sleeve),
                                  enabled=True, cmap="turbo")

    state = {"i": 0, "playing": False}   # play starts OFF
    refresh()

    def advance_one():
        if state["i"] < args.steps:
            step_once(world, core, sleeve, state, args)
            refresh()
            if state["i"] == args.steps:
                report_grip(world, core, sleeve)

    def callback():
        import polyscope.imgui as psim
        _, state["playing"] = psim.Checkbox("play", state["playing"])
        psim.SameLine()
        if psim.Button("step"):
            advance_one()
        elif state["playing"]:
            advance_one()
        psim.Text(f"step {state['i']} / {args.steps}")
        r_core, r_bore = fit_radii(world, core, sleeve)
        psim.Text(f"core radius {r_core * 1e3:6.2f} mm   "
                  f"gap {(r_bore - r_core) * 1e3:+5.2f} mm")
        detached = trusty.embedded.pin_detached(world, core)
        psim.Text("pin: " + ("detached" if detached else "attached"))
        rep = world.last_report()
        psim.Text(f"iters={rep.iterations}  res={rep.final_residual:.2e}")

    ps.set_user_callback(callback)
    ps.show()


def parse_args(argv=None):
    ap = argparse.ArgumentParser(description=__doc__.split("\n")[0])
    ap.add_argument("--steps", type=int, default=150)
    ap.add_argument("--newton-iters", type=int, default=8)
    ap.add_argument("--interference", type=float, default=0.10,
                    help="bore undersize as a fraction of core radius")
    ap.add_argument("--clearance-margin", type=float, default=1.5e-3,
                    help="extra radial gap (m) the inflated start leaves")
    ap.add_argument("--release-at", type=int, default=-1,
                    help="step at which to detach the core's weak pin "
                         "(-1 = never)")
    ap.add_argument("--backend", default="auto",
                    choices=["auto", "cpu", "accelerate", "cuda"])
    ap.add_argument("--no-viewer", action="store_true")
    return ap.parse_args(argv)


def main():
    args = parse_args()
    world, core, sleeve = build_world(args)

    if args.no_viewer:
        state = {"i": 0}
        for _ in range(args.steps):
            step_once(world, core, sleeve, state, args)
        report_grip(world, core, sleeve)
        return

    run_polyscope(world, core, sleeve, args)


if __name__ == "__main__":
    main()
