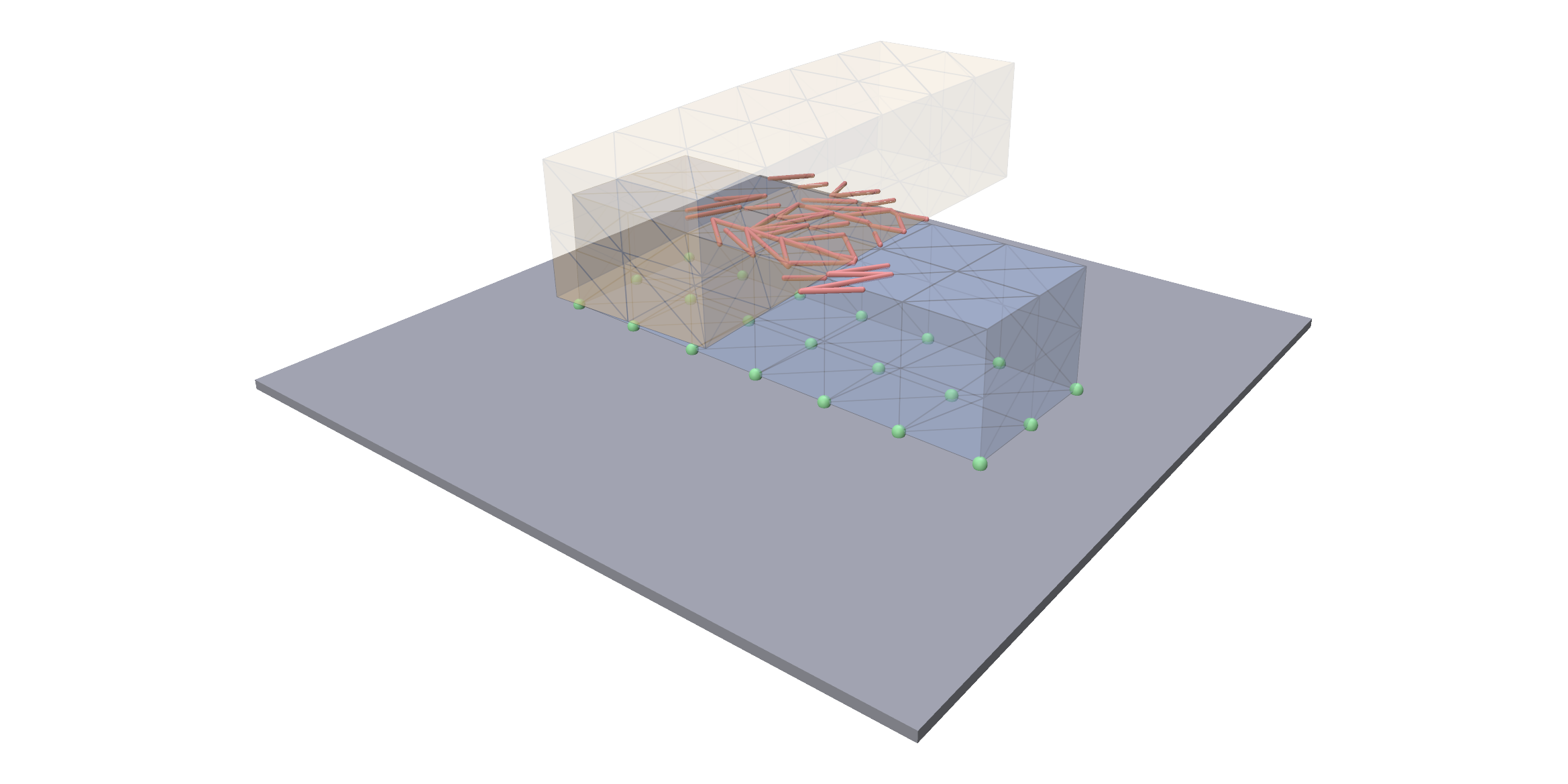

Contact¶

"""A soft beam dropped at an angle onto a floor.

It lands on one end, tips over, and comes to rest lying flat. Contact keeps
it on the floor.

Usage:
    python examples/contact/beam_drop.py                  # polyscope
    python examples/contact/beam_drop.py --no-viewer      # headless
    python examples/contact/beam_drop.py --steps 240
    python examples/contact/beam_drop.py --element tet    # tet mesh
    python examples/contact/beam_drop.py --order quadratic
    python examples/contact/beam_drop.py --mesh foo.vtu   # your own hex mesh
"""

from __future__ import annotations

import argparse
import sys
from pathlib import Path

import numpy as np

import trusty

sys.path.insert(0, str(Path(__file__).resolve().parent.parent))
from utils import init_polyscope, load_hex_mesh, load_tet_mesh  # noqa: E402

ORDER = trusty.fem.ElementOrder
ORDERS = {
    "linear":      ORDER.Linear,
    "quadratic":   ORDER.Quadratic,
    "serendipity": ORDER.QuadraticSerendipity,   # hex only
}

BEAM_SIZE = (0.6, 0.2, 0.2)
BEAM_RES = (12, 4, 4)
TILT_DEG = 30.0      # about the y axis, so one end hits the floor first
DROP_HEIGHT = 0.3    # of the beam's lowest corner above the floor


def beam_vertices(V):
    """Tilt the beam about y, then lift its lowest corner to DROP_HEIGHT."""
    a = np.radians(TILT_DEG)
    R = np.array([[np.cos(a), 0.0, -np.sin(a)],
                  [0.0, 1.0, 0.0],
                  [np.sin(a), 0.0, np.cos(a)]])
    V = (V - V.mean(axis=0)) @ R.T
    V[:, 2] += DROP_HEIGHT - V[:, 2].min()
    return V


def make_mesh(element: str, mesh_path: Path | None):
    if element == "hex":
        m = (load_hex_mesh(mesh_path, target_extent=max(BEAM_SIZE)) if mesh_path
             else trusty.make_beam_hex_mesh(size=BEAM_SIZE, res=BEAM_RES))
        return trusty.make_hex_mesh(beam_vertices(np.asarray(m.vertices)),
                                    np.asarray(m.hexes))
    m = (load_tet_mesh(mesh_path, target_extent=max(BEAM_SIZE)) if mesh_path
         else trusty.make_beam_tet_mesh(size=BEAM_SIZE, res=BEAM_RES))
    return trusty.make_tet_mesh(beam_vertices(np.asarray(m.vertices)),
                                np.asarray(m.tets))


def build_world(backend: str = "auto", element: str = "hex",
                order=ORDER.Linear, mesh_path: Path | None = None):
    trusty.check_capabilities("contact")
    mesh = make_mesh(element, mesh_path)
    material = trusty.StableNeoHookean(youngs_modulus=1e5, poisson_ratio=0.3)

    world = trusty.World(backend=backend,
                         timestep=1.0 / 60.0,
                         # an impact can take more than the default 20 iterations
                         newton=trusty.NewtonConfig(max_iters=50))
    # Turn contact on; dhat is the contact distance, in m.
    trusty.contact.enable(world, trusty.contact.Config(dhat=1e-3))

    add = trusty.fem.add_hex_solid if element == "hex" else trusty.fem.add_tet_solid
    beam = add(world, mesh, material, density=1000.0, order=order)
    trusty.add_floor_plane(world, z=0.0)
    return world, beam


def surface(world, beam):
    return (np.asarray(trusty.fem.read_positions(world, beam)),
            np.asarray(trusty.fem.read_surface_triangles(world, beam)))


def run_headless(world, beam, steps: int):
    print(f"Beam drop: {steps} steps")
    lowest, unconverged = np.inf, 0
    for i in range(steps):
        world.step()
        r = world.last_report()
        unconverged += not r.converged
        z = float(np.asarray(trusty.fem.read_positions(world, beam))[:, 2].min())
        lowest = min(lowest, z)
        if (i + 1) % 20 == 0:
            print(f"  step {i + 1:4d}  lowest point z={z:+.5f}  "
                  f"iters={r.iterations}  converged={r.converged}")
    x = np.asarray(trusty.fem.read_positions(world, beam))
    print(f"Done. lowest point over the run {lowest:+.5f} m, "
          f"final height of the top {x[:, 2].max():.3f} m, "
          f"{unconverged} unconverged steps.")


def run_polyscope(world, beam, steps: int):
    ps = init_polyscope(headless=False)
    floor = np.array([[-1, -1, 0], [1, -1, 0], [1, 1, 0], [-1, 1, 0]], float)
    ps.register_surface_mesh("floor", floor, np.array([[0, 1, 2], [0, 2, 3]]),
                             color=(0.6, 0.6, 0.6))
    ps_mesh = ps.register_surface_mesh("beam", *surface(world, beam))
    ps_mesh.set_edge_width(1.0)
    state = {"i": 0, "playing": False}   # opens paused

    def callback():
        import polyscope.imgui as psim
        _, state["playing"] = psim.Checkbox("play", state["playing"])
        psim.SameLine()
        if (psim.Button("step") or state["playing"]) and state["i"] < steps:
            world.step()
            state["i"] += 1
            ps_mesh.update_vertex_positions(surface(world, beam)[0])
        psim.Text(f"step {state['i']} / {steps}")
        r = world.last_report()
        psim.Text(f"iters={r.iterations}  residual={r.final_residual:.2e}  "
                  f"{'converged' if r.converged else 'NOT converged'}")

    ps.set_user_callback(callback)
    ps.show()


def main():
    p = argparse.ArgumentParser(description=__doc__.split("\n")[0])
    p.add_argument("--backend", choices=["auto", "cpu", "accelerate", "cuda"], default="auto")
    p.add_argument("--element", choices=["hex", "tet"], default="hex")
    p.add_argument("--order", choices=list(ORDERS), default="linear",
                   help="element order; serendipity is for hexes only")
    p.add_argument("--steps", type=int, default=120)
    p.add_argument("--mesh", type=Path, default=None,
                   help="a hex (or, with --element tet, tet) mesh file, read with meshio")
    p.add_argument("--no-viewer", action="store_true")
    args = p.parse_args()
    if args.element == "tet" and args.order == "serendipity":
        p.error("--order serendipity needs --element hex")

    world, beam = build_world(args.backend, args.element, ORDERS[args.order], args.mesh)
    if args.no_viewer:
        run_headless(world, beam, args.steps)
    else:
        run_polyscope(world, beam, args.steps)


if __name__ == "__main__":
    main()

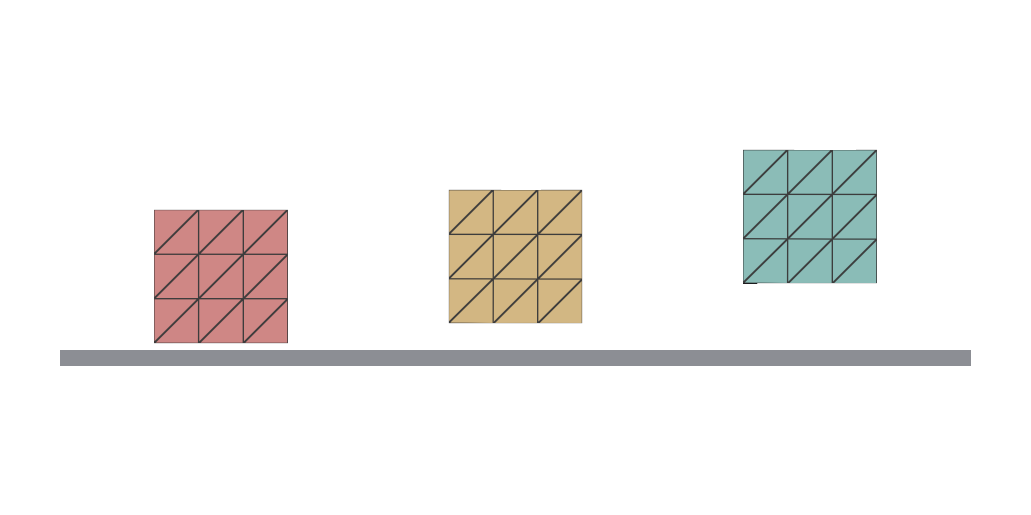

"""How far apart bodies rest, for a few contact distances and stiffnesses.

Each setting gets its own world: a cube dropped onto a floor (a wall mesh),
stepped until it rests. The script prints the gap under the cube as a
fraction of the contact distance `dhat`. With the default stiffness the gap is
close to `dhat`; a low stiffness lets a heavy body sink further into it.

Usage:
    python examples/contact/resting_gap.py                 # polyscope
    python examples/contact/resting_gap.py --no-viewer     # print the table
    python examples/contact/resting_gap.py --density 8000  # a heavier cube
"""

from __future__ import annotations

import argparse
import sys
from pathlib import Path

import numpy as np

import trusty

sys.path.insert(0, str(Path(__file__).resolve().parent.parent))
from utils import init_polyscope  # noqa: E402

CUBE = 0.1
DHATS = (0.005, 0.02, 0.05)        # the viewer shows these side by side
KAPPAS = (1e3, 1e4, 1e5)           # 1e5 is the default


def build_world(dhat: float, kappa: float = 1e5, density: float = 2000.0,
                x: float = 0.0, backend: str = "auto"):
    trusty.check_capabilities("contact")
    world = trusty.World(backend=backend, timestep=0.01)
    trusty.contact.enable(world, trusty.contact.Config(
        dhat=dhat,      # contact distance (m): bodies rest about this far apart
        kappa=kappa))   # contact stiffness: how hard it pushes back

    m = trusty.make_beam_hex_mesh(size=(CUBE,) * 3, res=(3, 3, 3))
    V = np.asarray(m.vertices, dtype=np.float64)
    V = V - V.min(axis=0) + np.array([x - CUBE / 2, -CUBE / 2, 1.5 * dhat])
    cube = trusty.fem.add_hex_solid(
        world, trusty.make_hex_mesh(V, np.asarray(m.hexes)),
        trusty.StableNeoHookean(youngs_modulus=1e6, poisson_ratio=0.3), density)
    floor = np.array([[x - 0.3, -0.3, 0], [x + 0.3, -0.3, 0],
                      [x + 0.3, 0.3, 0], [x - 0.3, 0.3, 0]], dtype=np.float64)
    trusty.contact.add_wall(world, "floor", floor,
                            np.array([[0, 1, 2], [0, 2, 3]], dtype=np.int32))
    return world, cube


def settle(world, steps: int = 100):
    for _ in range(steps):
        world.step()


def gap(world, cube) -> float:
    return float(np.asarray(trusty.fem.read_positions(world, cube))[:, 2].min())


def run_headless(density: float, backend: str):
    print(f"Resting gap / dhat, for a {CUBE} m cube of density {density:g} kg/m^3")
    print("  dhat (m)  " + "".join(f"kappa={k:<8g}" for k in KAPPAS))
    for dhat in DHATS:
        row = []
        for kappa in KAPPAS:
            world, cube = build_world(dhat, kappa, density, backend=backend)
            settle(world)
            row.append(gap(world, cube) / dhat)
        print(f"  {dhat:<8g}  " + "".join(f"{g:<14.2f}" for g in row))


def run_polyscope(density: float, backend: str):
    ps = init_polyscope(headless=False)
    for k, dhat in enumerate(DHATS):
        world, cube = build_world(dhat, density=density, x=0.25 * k, backend=backend)
        settle(world)
        ps.register_surface_mesh(
            f"dhat={dhat}", np.asarray(trusty.fem.read_positions(world, cube)),
            np.asarray(trusty.fem.read_surface_triangles(world, cube)))
    floor = np.array([[-0.15, -0.15, 0], [0.65, -0.15, 0], [0.65, 0.15, 0],
                      [-0.15, 0.15, 0]], dtype=np.float64)
    ps.register_surface_mesh("floor", floor, np.array([[0, 1, 2], [0, 2, 3]]),
                             color=(0.6, 0.6, 0.6))
    ps.show()


def main():
    p = argparse.ArgumentParser(description=__doc__.split("\n")[0])
    p.add_argument("--backend", choices=["auto", "cpu", "accelerate"], default="auto")
    p.add_argument("--density", type=float, default=2000.0)
    p.add_argument("--no-viewer", action="store_true")
    args = p.parse_args()
    if args.no_viewer:
        run_headless(args.density, args.backend)
    else:
        run_polyscope(args.density, args.backend)


if __name__ == "__main__":
    main()

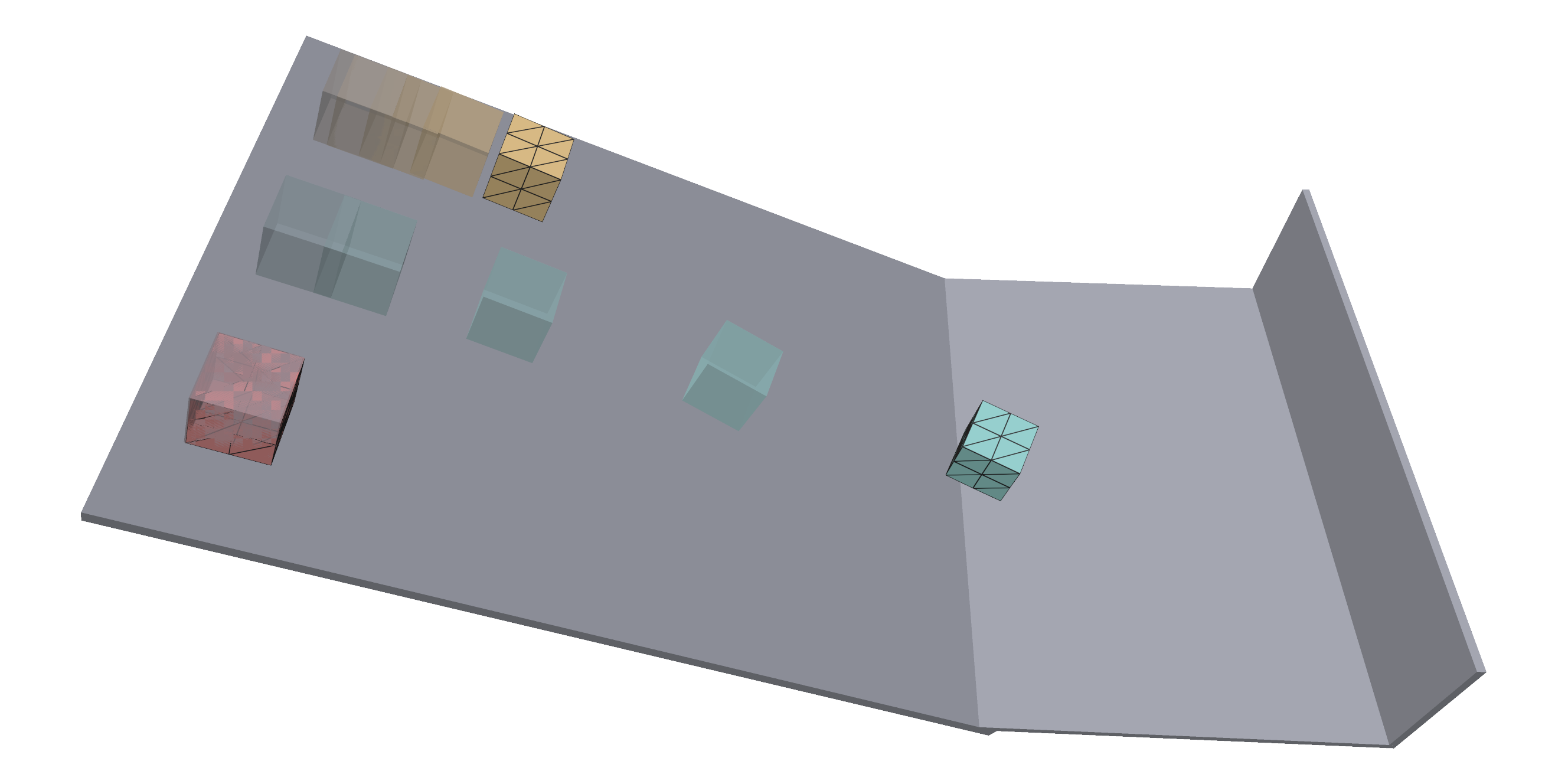

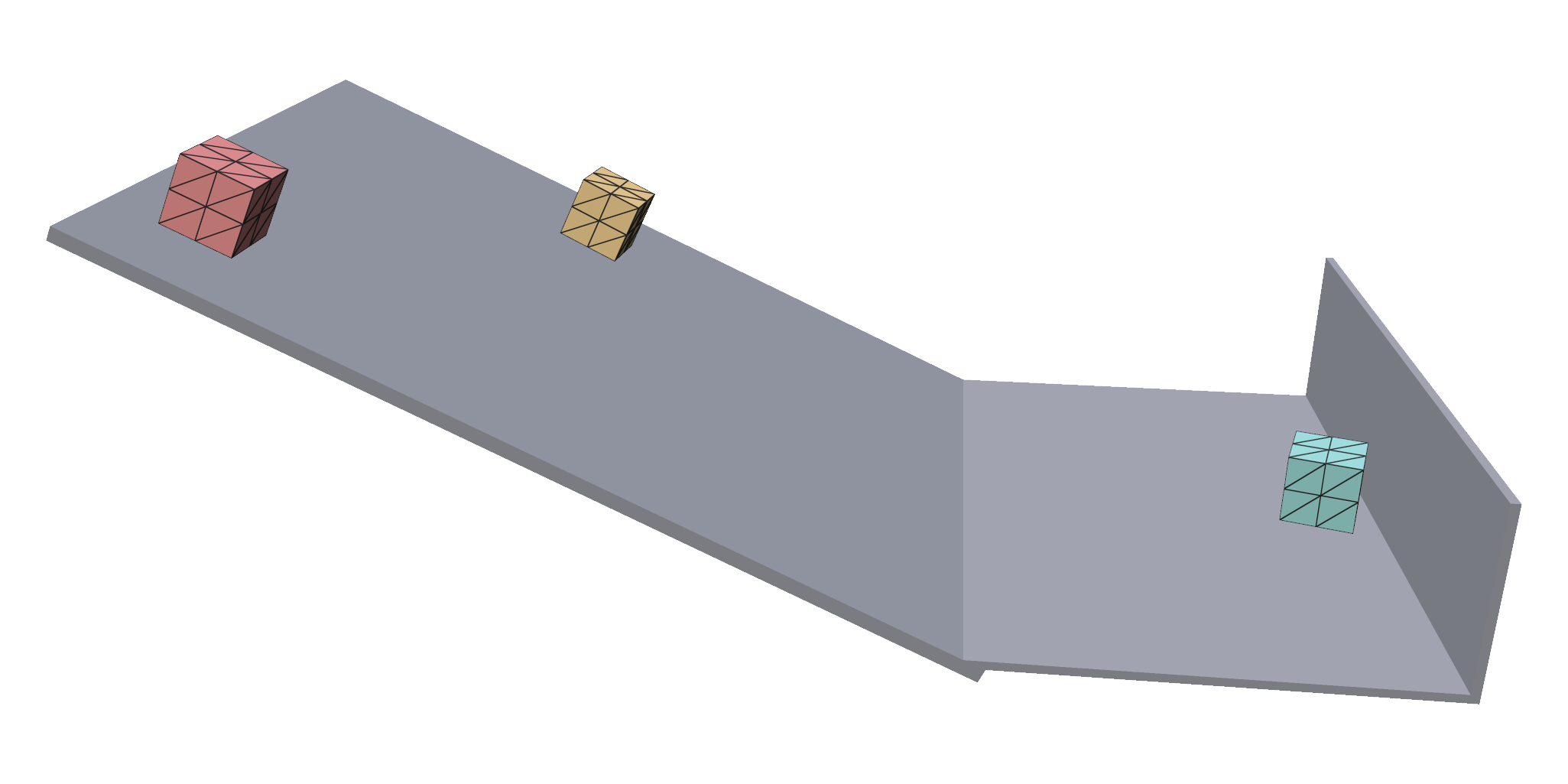

"""Three blocks on a ramp, each with its own friction.

The ramp is a static wall mesh, the run-out is a floor plane, and a second
plane stands at its far end as a backstop. Friction is per body: the ramp and
the middle block share `--mu`, and a contact uses the average of its two
sides' coefficients. The slippery block slides down
and across the floor into the backstop, the middle one creeps, and the grippy
one stays put.

Usage:
    python examples/contact/ramp.py                # polyscope
    python examples/contact/ramp.py --no-viewer    # headless
    python examples/contact/ramp.py --steps 300
    python examples/contact/ramp.py --mu 0.6       # ramp and middle block friction
"""

from __future__ import annotations

import argparse
import sys
from pathlib import Path

import numpy as np

import trusty

sys.path.insert(0, str(Path(__file__).resolve().parent.parent))
from utils import init_polyscope  # noqa: E402

SLOPE_DEG = 25.0
RAMP_LENGTH = 1.2          # along the slope, m
RAMP_WIDTH = 0.9
BACKSTOP_X = 0.6           # the backstop plane, past the foot of the ramp
BLOCK = 0.1                # block edge, m
# Each block's lane across the ramp (y).
LANES = {"slippery": 0.0, "default": 0.28, "grippy": -0.28}
COLORS = {"slippery": (0.35, 0.75, 0.70), "default": (0.98, 0.70, 0.30),
          "grippy": (0.937, 0.325, 0.314)}


def slope_frame():
    """Rotation taking ramp coordinates (x down the slope, z out of it) to the
    world. The foot of the ramp is at the world origin."""
    a = np.radians(SLOPE_DEG)
    return np.array([[np.cos(a), 0.0, np.sin(a)],
                     [0.0, 1.0, 0.0],
                     [-np.sin(a), 0.0, np.cos(a)]])


def ramp_mesh():
    """The ramp's top face: one quad, from the top edge to just below the
    floor. The ramp must not touch the floor exactly, so its foot goes through."""
    R = slope_frame()
    w, foot = RAMP_WIDTH / 2, 0.03
    corners = np.array([[-RAMP_LENGTH, -w, 0.0], [foot, -w, 0.0],
                        [foot, w, 0.0], [-RAMP_LENGTH, w, 0.0]])
    return corners @ R.T, np.array([[0, 1, 2], [0, 2, 3]], dtype=np.int32)


def block_mesh(y):
    """A hex block resting near the top of the ramp, in lane `y`."""
    m = trusty.make_beam_hex_mesh(size=(BLOCK,) * 3, res=(2, 2, 2))
    V = np.asarray(m.vertices, dtype=np.float64)
    V = V - V.mean(axis=0) + np.array([-RAMP_LENGTH + 0.12, y, BLOCK / 2 + 2e-3])
    return trusty.make_hex_mesh(V @ slope_frame().T, np.asarray(m.hexes))


def build_world(backend: str = "auto", mu: float = 0.4):
    trusty.check_capabilities("contact")
    world = trusty.World(backend=backend, timestep=0.01,
                         newton=trusty.NewtonConfig(max_iters=50))
    trusty.contact.enable(world, trusty.contact.Config(
        epsv=1e-5))     # below this sliding speed (m/s), contacts stick

    material = trusty.StableNeoHookean(youngs_modulus=1e6, poisson_ratio=0.3)
    blocks = {}
    for name, y in LANES.items():
        blocks[name] = trusty.fem.add_hex_solid(world, block_mesh(y), material,
                                                density=1000.0, friction_mu=mu)
    trusty.contact.set_body_friction(world, blocks["slippery"], 0.0)
    trusty.contact.set_body_friction(world, blocks["grippy"], 0.8)

    V, F = ramp_mesh()
    trusty.contact.add_wall(world, "ramp", V, F,   # a static triangle mesh
                            friction_mu=mu)
    trusty.add_floor_plane(world, z=0.0)           # the floor, normal +z
    trusty.contact.add_plane(world,                # a backstop, facing -x
                             origin=np.array([BACKSTOP_X, 0.0, 0.0]),
                             normal=np.array([-1.0, 0.0, 0.0]))
    return world, blocks


def centre(world, body):
    return np.asarray(trusty.fem.read_positions(world, body)).mean(axis=0)


def run_headless(world, blocks, steps: int):
    print(f"Ramp: {steps} steps")
    start = {n: centre(world, b) for n, b in blocks.items()}
    for i in range(steps):
        world.step()
        if (i + 1) % 50 == 0:
            moved = "  ".join(f"{n} {np.linalg.norm(centre(world, b) - start[n]):.3f}"
                              for n, b in blocks.items())
            r = world.last_report()
            print(f"  step {i + 1:4d}  distance moved (m): {moved}  "
                  f"converged={r.converged}")
    for n, b in blocks.items():
        x = np.asarray(trusty.fem.read_positions(world, b))
        print(f"Done. {n}: centre x={x[:, 0].mean():+.3f} m, lowest z={x[:, 2].min():+.4f} m")


def run_polyscope(world, blocks, steps: int):
    ps = init_polyscope(headless=False)
    V, F = ramp_mesh()
    ps.register_surface_mesh("ramp", V, F, color=(0.6, 0.6, 0.6))
    floor = np.array([[0, -0.6, 0], [BACKSTOP_X, -0.6, 0],
                      [BACKSTOP_X, 0.6, 0], [0, 0.6, 0]], float)
    ps.register_surface_mesh("floor", floor, np.array([[0, 1, 2], [0, 2, 3]]),
                             color=(0.6, 0.6, 0.6))
    meshes = {}
    for n, b in blocks.items():
        meshes[n] = ps.register_surface_mesh(
            n, np.asarray(trusty.fem.read_positions(world, b)),
            np.asarray(trusty.fem.read_surface_triangles(world, b)), color=COLORS[n])
    state = {"i": 0, "playing": False}   # opens paused

    def callback():
        import polyscope.imgui as psim
        _, state["playing"] = psim.Checkbox("play", state["playing"])
        psim.SameLine()
        if (psim.Button("step") or state["playing"]) and state["i"] < steps:
            world.step()
            state["i"] += 1
            for n, b in blocks.items():
                meshes[n].update_vertex_positions(
                    np.asarray(trusty.fem.read_positions(world, b)))
        psim.Text(f"step {state['i']} / {steps}")

    ps.set_user_callback(callback)
    ps.show()


def main():
    p = argparse.ArgumentParser(description=__doc__.split("\n")[0])
    p.add_argument("--backend", choices=["auto", "cpu", "accelerate"], default="auto")
    p.add_argument("--steps", type=int, default=200)
    p.add_argument("--mu", type=float, default=0.4,
                   help="friction coefficient of the ramp and the middle block")
    p.add_argument("--no-viewer", action="store_true")
    args = p.parse_args()
    world, blocks = build_world(args.backend, args.mu)
    if args.no_viewer:
        run_headless(world, blocks, args.steps)
    else:
        run_polyscope(world, blocks, args.steps)


if __name__ == "__main__":
    main()

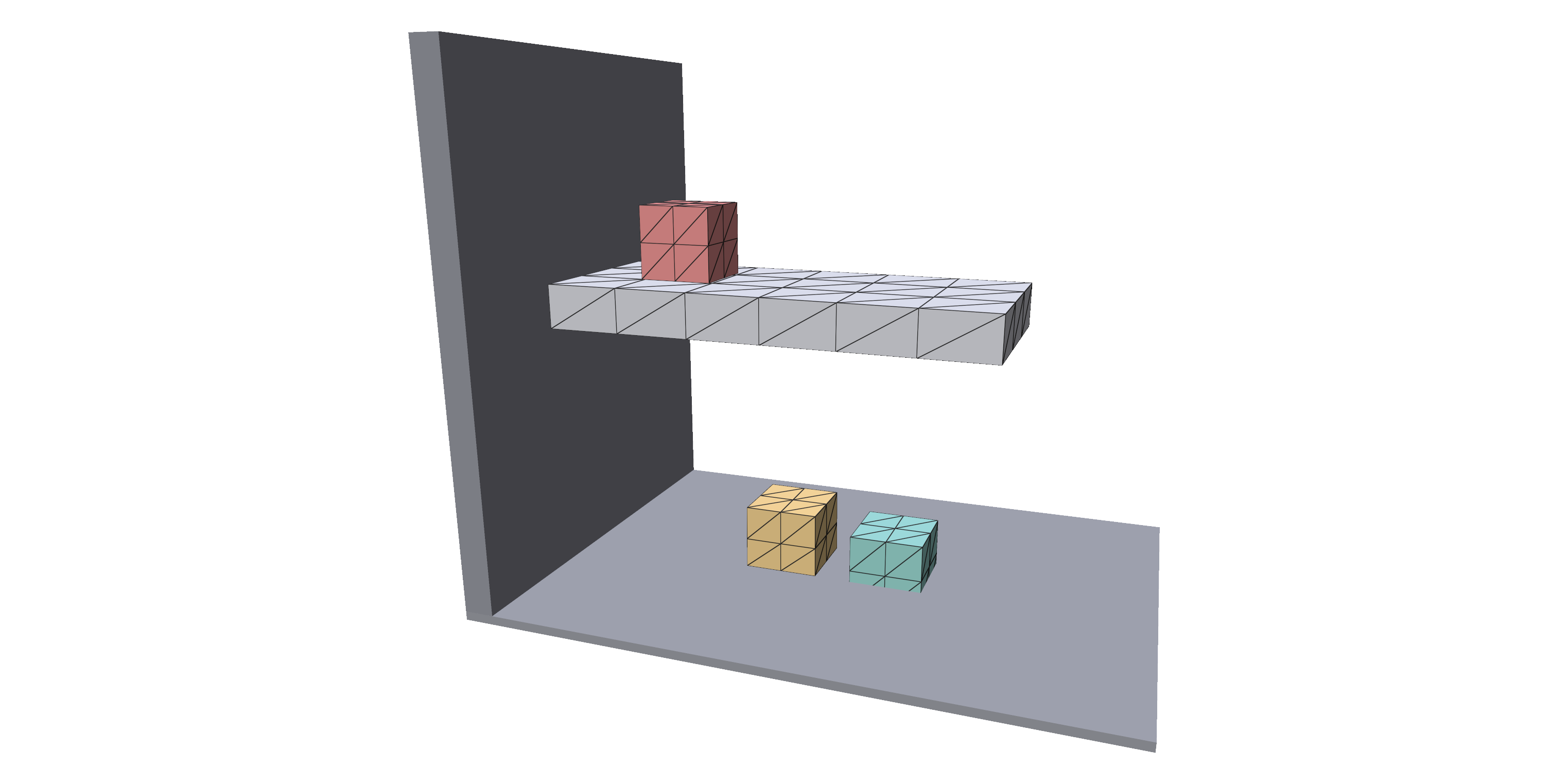

"""Three cubes dropped onto a shelf, with contact switched off selectively.

The first cube lands on the shelf. The second is excluded from contact with
the shelf only, so it falls through it and lands on the floor. The third is
excluded from contact entirely and falls through everything.

Usage:
    python examples/contact/exclude.py                # polyscope
    python examples/contact/exclude.py --no-viewer    # headless
    python examples/contact/exclude.py --steps 60
"""

from __future__ import annotations

import argparse
import sys
from pathlib import Path

import numpy as np

import trusty

sys.path.insert(0, str(Path(__file__).resolve().parent.parent))
from utils import init_polyscope  # noqa: E402

SHELF = 0.6                # shelf length along x, clamped to a wall at x = 0
DECK = (0.34, 0.40)        # shelf bottom and top, z
CUBE = 0.1
DROP_Z = 0.55              # cube bottoms start here
CUBE_X = {"lands": 0.15, "passes the shelf": 0.3, "passes everything": 0.45}


def offset_hex_mesh(size, res, lo):
    m = trusty.make_beam_hex_mesh(size=size, res=res)
    V = np.asarray(m.vertices, dtype=np.float64)
    return trusty.make_hex_mesh(V - V.min(axis=0) + np.asarray(lo), np.asarray(m.hexes))


def build_world(backend: str = "auto"):
    trusty.check_capabilities("contact")
    world = trusty.World(backend=backend, timestep=0.01,
                         newton=trusty.NewtonConfig(max_iters=50))
    trusty.contact.enable(world)

    shelf = trusty.fem.add_hex_solid(
        world, offset_hex_mesh((SHELF, 0.25, DECK[1] - DECK[0]), (6, 3, 1),
                               (0.0, -0.125, DECK[0])),
        trusty.StableNeoHookean(youngs_modulus=1e8, poisson_ratio=0.3), density=1000.0)
    trusty.fem.pin_face(world, shelf, axis=0, coord=0.0)

    soft = trusty.StableNeoHookean(youngs_modulus=1e5, poisson_ratio=0.3)
    cubes = {name: trusty.fem.add_hex_solid(
                 world, offset_hex_mesh((CUBE,) * 3, (2, 2, 2),
                                        (x - CUBE / 2, -CUBE / 2, DROP_Z)),
                 soft, density=1000.0)
             for name, x in CUBE_X.items()}
    trusty.add_floor_plane(world, z=0.0)

    trusty.contact.exclude_body_pair(world, cubes["passes the shelf"], shelf)
    trusty.contact.exclude_body_from_contact(world, cubes["passes everything"])
    return world, shelf, cubes


def lowest(world, body):
    return float(np.asarray(trusty.fem.read_positions(world, body))[:, 2].min())


def run_headless(world, cubes, steps: int):
    print(f"Exclusions: {steps} steps")
    for i in range(steps):
        world.step()
        if (i + 1) % 10 == 0:
            zs = "  ".join(f"{n}: {lowest(world, b):+.3f}" for n, b in cubes.items())
            print(f"  step {i + 1:3d}  lowest z  {zs}  "
                  f"converged={world.last_report().converged}")


def run_polyscope(world, shelf, cubes, steps: int):
    ps = init_polyscope(headless=False)
    floor = np.array([[-0.2, -0.4, 0], [1.0, -0.4, 0], [1.0, 0.4, 0], [-0.2, 0.4, 0]], float)
    ps.register_surface_mesh("floor", floor, np.array([[0, 1, 2], [0, 2, 3]]),
                             color=(0.6, 0.6, 0.6))
    bodies = {"shelf": shelf, **cubes}
    meshes = {n: ps.register_surface_mesh(
                  n, np.asarray(trusty.fem.read_positions(world, b)),
                  np.asarray(trusty.fem.read_surface_triangles(world, b)))
              for n, b in bodies.items()}
    state = {"i": 0, "playing": False}   # opens paused

    def callback():
        import polyscope.imgui as psim
        _, state["playing"] = psim.Checkbox("play", state["playing"])
        psim.SameLine()
        if (psim.Button("step") or state["playing"]) and state["i"] < steps:
            world.step()
            state["i"] += 1
            for n, b in bodies.items():
                meshes[n].update_vertex_positions(
                    np.asarray(trusty.fem.read_positions(world, b)))
        psim.Text(f"step {state['i']} / {steps}")

    ps.set_user_callback(callback)
    ps.show()


def main():
    p = argparse.ArgumentParser(description=__doc__.split("\n")[0])
    p.add_argument("--backend", choices=["auto", "cpu", "accelerate"], default="auto")
    p.add_argument("--steps", type=int, default=60)
    p.add_argument("--no-viewer", action="store_true")
    args = p.parse_args()
    world, shelf, cubes = build_world(args.backend)
    if args.no_viewer:
        run_headless(world, cubes, args.steps)
    else:
        run_polyscope(world, shelf, cubes, args.steps)


if __name__ == "__main__":
    main()

"""All five body types coupled in ONE simulation.

affine (near-rigid) + fem (deformable hex) + embedded (voxelized) + shell +
subspace (reduced) -- all in one world, stacked into a single centered tower on
a shared floor with contact on, so every layer presses on the one
below. Every pair of body types interacts through the same contact model, in
one implicit solve.

The soft solids (fem / embedded / subspace) share E = 1e5 and at least 100
degrees of freedom each; the affine cube stays stiff (1e9) as the base of the stack.


Usage:
    python examples/coupling/all_bodies.py                       # viewer (opens paused)
    python examples/coupling/all_bodies.py --no-viewer           # headless
    python examples/coupling/all_bodies.py --backend accelerate  # Apple solver
"""

from __future__ import annotations

import argparse
import tempfile
from pathlib import Path

import numpy as np

import trusty

FRICTION_MU = 0.5   # Coulomb coefficient of every body and the floor


def box_tris(center, half, n=1):
    """Axis-aligned cube surface, each face split into n x n quads with welded
    shared edges/corners and outward winding. n=1 is the plain 8-vertex /
    12-triangle box; larger n gives more surface samples so an embedded body's
    coupled surface can follow the hex deformation instead of staying faceted.
    """
    h = float(half)
    verts: list = []
    index: dict = {}

    def vid(i, j, k):
        key = (i, j, k)
        if key not in index:
            index[key] = len(verts)
            verts.append([-h + 2.0 * h * i / n,
                          -h + 2.0 * h * j / n,
                          -h + 2.0 * h * k / n])
        return index[key]

    tris: list = []

    def cell(p0, p1, p2, p3, outward):
        a, b, d = np.asarray(verts[p0]), np.asarray(verts[p1]), np.asarray(verts[p2])
        if np.dot(np.cross(b - a, d - a), outward) < 0.0:
            p1, p3 = p3, p1            # flip winding so the normal points out
        tris.append((p0, p1, p2))
        tris.append((p0, p2, p3))

    for axis in range(3):
        for side in (0, n):
            outward = np.zeros(3)
            outward[axis] = 1.0 if side == n else -1.0
            u, v = (a for a in range(3) if a != axis)
            for s in range(n):
                for t in range(n):
                    def g(su, sv, _a=axis, _s=side, _u=u, _v=v):
                        c = [0, 0, 0]
                        c[_a] = _s
                        c[_u] = su
                        c[_v] = sv
                        return vid(*c)
                    cell(g(s, t), g(s + 1, t), g(s + 1, t + 1), g(s, t + 1), outward)

    V = np.asarray(verts, dtype=np.float64) + np.asarray(center, dtype=np.float64)
    F = np.asarray(tris, dtype=np.int32)
    return V, F


def shifted_hex(size, res, translate):
    m = trusty.make_beam_hex_mesh(size=size, res=res)
    V = np.asarray(m.vertices).copy()
    V = V - V.min(axis=0) + np.asarray(translate, dtype=np.float64)
    return trusty.make_hex_mesh(V, np.asarray(m.hexes))


def square_sheet(side, res, center):
    cx, cy, cz = center
    xs = np.linspace(-side / 2, side / 2, res)
    V  = np.array([[x + cx, y + cy, cz] for y in xs for x in xs], dtype=np.float64)
    F  = []
    for j in range(res - 1):
        for i in range(res - 1):
            a = j * res + i
            F.append((a, a + 1, a + res + 1))
            F.append((a, a + res + 1, a + res))
    return V, np.asarray(F, dtype=np.int32)


def build_subspace_basis(tmp: Path, size, res, num_handles):
    from trusty.subspace.precompute import build_basis as bb, pack
    mesh  = trusty.make_beam_hex_mesh(size=size, res=res)
    mat   = trusty.StableNeoHookean(youngs_modulus=1e5, poisson_ratio=0.40)
    world = trusty.World()
    trusty.fem.add_hex_solid(world, mesh, mat, density=1000.0)
    rv    = np.asarray(mesh.vertices, dtype=np.float64)
    hexes = np.asarray(mesh.hexes)
    basis = bb.build_skinning_eigenmodes(
        world=world, num_nodes=rv.shape[0], rest_positions=rv,
        num_handles=num_handles, mesh_hash=bb.mesh_hash_sha256(rv, hexes))
    path = tmp / "sub.basis"
    pack.save(path, basis)
    return trusty.subspace.load(str(path))


def build_world(tmp: Path, backend: str = "auto"):
    trusty.check_capabilities("contact", "affine", "embedded", "subspace", "shells")
    soft  = trusty.StableNeoHookean(youngs_modulus=1e5, poisson_ratio=0.40)
    world = trusty.World(backend=backend,
                         timestep=0.01,
                         newton=trusty.NewtonConfig(max_iters=80))
    trusty.contact.enable(world, trusty.contact.Config(dhat=2e-3, kappa=1e6))
    bodies = {}

    half      = 0.08      # half-extent of each stacked box (0.16 m footprint)
    gap       = 0.006     # rest gap between layers (and above the floor)
    n_handles = 3         # subspace: 12 reduced degrees of freedom per handle

    # Everything stacks into one centered tower, bottom -> top, so each layer
    # presses on the one below. The stiff affine cube anchors the base; the
    # three soft solids sit on it; the shell drapes over the top.
    z = gap

    # affine cube (stiff base)
    cz = z + half
    Vc, Fc = box_tris((0.0, 0.0, cz), half)
    bodies["affine"] = trusty.affine.add_affine_body(
        world, Vc, Fc, density=1000.0, stiffness=1e9)
    z = cz + half + gap

    # fem box (E=1e5, res 3 -> 4*4*4 = 64 nodes)
    fem_mesh = shifted_hex((2 * half, 2 * half, 2 * half), (3, 3, 3), (-half, -half, z))
    bodies["fem"] = trusty.fem.add_hex_solid(world, fem_mesh, soft, density=1000.0)
    z += 2 * half + gap

    # embedded box (E=1e5). The hex grid (voxel_size) carries the deformation;
    # the subdivided box surface (n=4) samples that field so the coupled
    # surface bulges instead of staying faceted between 8 corners.
    ez = z + half
    Ve, Fe = box_tris((0.0, 0.0, ez), half, n=4)
    bodies["embedded"] = trusty.embedded.add_embedded_solid(
        world, Ve, Fe, voxel_size=0.05, material=soft, density=1000.0)
    z = ez + half + gap

    # subspace (reduced) box (E=1e5, 3 handles)
    sub_size = (2 * half, 2 * half, 0.12)
    sub_res  = (4, 4, 3)            # 5*5*4 = 100 nodes
    basis    = build_subspace_basis(tmp, sub_size, sub_res, n_handles)
    sub_mesh = shifted_hex(sub_size, sub_res, (-half, -half, z))
    bodies["subspace"] = trusty.subspace.add_hex_body(
        world, sub_mesh, soft, density=1000.0, basis=basis)
    z += 0.12 + gap

    # Shell bodies: a closed thin-shell CUBE sitting on the stack, plus the
    # flat cloth sheet draped over it, given as ONE shell body (one shared
    # ShellConfig) with two disconnected components
    # (cube + sheet) -- cross-component contact lets the cloth drape over the
    # cube, and each component relaxes toward its own rest shape (the cube's
    # 90-degree edge dihedrals keep it boxy).
    Vcube, Fcube   = box_tris((0.0, 0.0, z + half), half, n=4)   # ~98 boundary verts
    z += 2 * half + gap
    Vsheet, Fsheet = square_sheet(4 * half, 7, (0.0, 0.0, z + 0.01))
    Vshell = np.vstack([Vcube, Vsheet])
    Fshell = np.vstack([Fcube, Fsheet + Vcube.shape[0]]).astype(np.int32)
    sh_cfg = trusty.shells.ShellConfig()
    sh_cfg.youngs_modulus = 5.0e5
    sh_cfg.poisson_ratio  = 0.3
    sh_cfg.thickness      = 1.5e-3
    sh_cfg.density        = 1.0e3
    bodies["shell"] = trusty.shells.add_shell(world, Vshell, Fshell, sh_cfg)

    # Friction keeps the stack standing. It is set per body (a contact uses
    # the average of the two sides' coefficients), and the floor carries its own.
    for body in bodies.values():
        trusty.contact.set_body_friction(world, body, FRICTION_MU)
    trusty.add_floor_plane(world, 0.0, friction_mu=FRICTION_MU)

    n_fem = np.asarray(fem_mesh.vertices).shape[0]
    n_emb = np.asarray(trusty.fem.read_mesh(world, bodies["embedded"]).vertices).shape[0]
    print(f"degrees of freedom per body: affine=12  fem={3 * n_fem}  embedded={3 * n_emb}  "
          f"subspace={12 * n_handles} (reduced)  shell={3 * Vshell.shape[0]} "
          f"(cube+cloth)")


    return world, bodies, sub_mesh


def run_headless(world, bodies, steps: int):
    print("All five body types in one simulation "
          "(affine + fem + embedded + shell + subspace).")
    diverged = 0
    for i in range(steps):
        world.step()
        r = world.last_report()
        diverged += (not r.converged)
        if (i + 1) % 20 == 0:
            print(f"  step {i + 1:4d}  iters={r.iterations}  "
                  f"res={r.final_residual:.2e}  converged={r.converged}")
    print(f"Done. {diverged} non-converged steps over {steps}.")
    assert diverged == 0, f"{diverged} steps did not converge"
    centres = {
        "affine": np.asarray(trusty.affine.surface(world, bodies["affine"])[0]),
        "fem": np.asarray(trusty.fem.read_positions(world, bodies["fem"])),
        "embedded": np.asarray(trusty.embedded.read_embedded_surface(world, bodies["embedded"])),
        "subspace": np.asarray(trusty.subspace.deformed_positions(world, body=bodies["subspace"])),
    }
    off = {n: float(np.linalg.norm(x[:, :2].mean(axis=0))) for n, x in centres.items()}
    print("sideways offset of each layer (m): "
          + "  ".join(f"{n}={d:.3f}" for n, d in off.items()))
    assert max(off.values()) < 0.02, "the tower did not stay stacked"
    print("OK: affine + fem + embedded + shell + subspace coupled in one solve.")


def run_polyscope(world, bodies, sub_mesh, steps: int):
    try:
        import polyscope as ps
    except ImportError:
        print("polyscope not installed; running headless.")
        run_headless(world, bodies, steps)
        return

    ps.init()
    ps.set_up_dir("z_up")
    ps.set_ground_plane_mode("shadow_only")

    # Floor at z = 0 (matches trusty.add_floor_plane).
    fx, fy = 1.2, 0.6
    floor_v = np.array(
        [[-fx, -fy, 0.0], [fx, -fy, 0.0], [fx, fy, 0.0], [-fx, fy, 0.0]],
        dtype=np.float64)
    floor_f = np.array([[0, 1, 2], [0, 2, 3]], dtype=np.int32)
    ps.register_surface_mesh("floor", floor_v, floor_f, color=(0.85, 0.85, 0.85))

    # One renderable per body type, each read back through its own surface/mesh API.
    Va, Fa = trusty.affine.surface(world, bodies["affine"])
    ps_aff = ps.register_surface_mesh(
        "affine", np.asarray(Va), np.asarray(Fa), color=(0.85, 0.35, 0.30))

    fem_mesh = trusty.fem.read_mesh(world, bodies["fem"])
    ps_fem = ps.register_volume_mesh(
        "fem", np.asarray(fem_mesh.vertices).copy(),
        hexes=np.asarray(fem_mesh.hexes), color=(0.30, 0.55, 0.85))

    emb = bodies["embedded"]
    ps_emb = ps.register_surface_mesh(
        "embedded", np.asarray(trusty.embedded.read_embedded_surface(world, emb)),
        np.asarray(trusty.embedded.surface_triangles(world, emb)),
        color=(0.40, 0.75, 0.45), smooth_shade=False)
    # The hex grid behind the embedded surface (what deforms), shown by
    # default like the other embedded examples.
    emb_hex = trusty.fem.read_mesh(world, emb)
    ps_emb_hex = ps.register_volume_mesh(
        "embedded hex", np.asarray(emb_hex.vertices).copy(),
        hexes=np.asarray(emb_hex.hexes), color=(0.20, 0.50, 0.30))

    shell = bodies["shell"]
    ps_shell = ps.register_surface_mesh(
        "shell", np.asarray(trusty.shells.read_positions(world, shell)),
        np.asarray(trusty.shells.read_triangles(world, shell)),
        color=(0.90, 0.75, 0.25), smooth_shade=False)

    ps_sub = ps.register_volume_mesh(
        "subspace", np.asarray(sub_mesh.vertices).copy(),
        hexes=np.asarray(sub_mesh.hexes), color=(0.60, 0.45, 0.80))

    state = {"i": 0, "playing": False}  # opens paused -- step/play to advance

    def cb():
        import polyscope.imgui as psim
        _, state["playing"] = psim.Checkbox("play", state["playing"])
        if (psim.Button("step") or state["playing"]) and state["i"] < steps:
            world.step()
            state["i"] += 1
            ps_aff.update_vertex_positions(np.asarray(trusty.affine.surface(world, bodies["affine"])[0]))
            ps_fem.update_vertex_positions(
                np.asarray(trusty.fem.read_mesh(world, bodies["fem"]).vertices))
            ps_emb.update_vertex_positions(
                np.asarray(trusty.embedded.read_embedded_surface(world, emb)))
            ps_emb_hex.update_vertex_positions(
                np.asarray(trusty.fem.read_mesh(world, emb).vertices))
            ps_shell.update_vertex_positions(
                np.asarray(trusty.shells.read_positions(world, shell)))
            ps_sub.update_vertex_positions(
                np.asarray(trusty.subspace.deformed_positions(world, body=bodies["subspace"])))
        psim.Text(f"step {state['i']} / {steps}")

    ps.set_user_callback(cb)
    ps.show()


def main():
    p = argparse.ArgumentParser(description=__doc__.split("\n")[0])
    p.add_argument("--steps", type=int, default=150)
    p.add_argument("--backend", choices=["auto", "cpu", "accelerate", "cuda"],
                   default="auto")
    p.add_argument("--no-viewer", action="store_true",
                   help="run headless instead of launching the polyscope viewer")
    args = p.parse_args()
    with tempfile.TemporaryDirectory() as td:
        world, bodies, sub_mesh = build_world(Path(td), args.backend)
        if args.no_viewer:
            run_headless(world, bodies, args.steps)
        else:
            run_polyscope(world, bodies, sub_mesh, args.steps)


if __name__ == "__main__":
    main()
