Solids¶

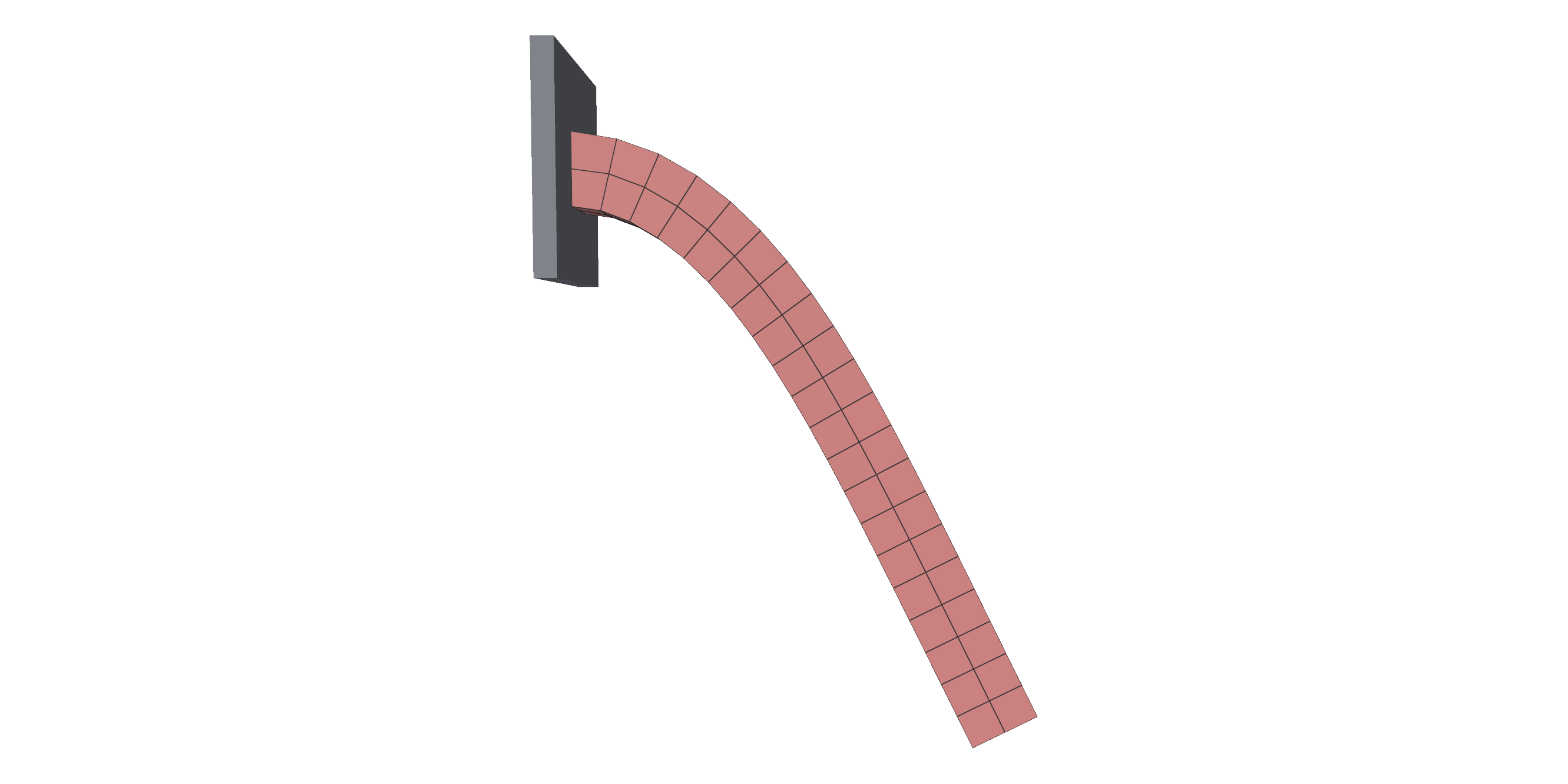

"""Cantilevered hex beam with Stable Neo-Hookean elasticity and gravity.

Steps the simulator and, unless
``--no-viewer`` is passed, shows the deforming beam in polyscope.

Usage:
    python examples/cantilever_beam.py                # live polyscope
    python examples/cantilever_beam.py --no-viewer    # write PNG sequence
    python examples/cantilever_beam.py --steps 240    # run longer
    python examples/cantilever_beam.py --order q2     # quadratic (Q2) elements

Install polyscope with ``pip install polyscope``.
"""

from __future__ import annotations

import argparse
from pathlib import Path

import numpy as np

import trusty
from utils import init_polyscope

ORDER = trusty.fem.ElementOrder
# CLI order name -> hex element order (Q1/Q2 Lagrange/Q2 serendipity).
HEX_ORDERS = {
    "linear": ORDER.Linear,
    "q2":     ORDER.Quadratic,
    "q2s":    ORDER.QuadraticSerendipity,
}


def build_world(backend: str = "auto", order=ORDER.Linear):
    mesh = trusty.make_beam_hex_mesh(size=(1.0, 0.1, 0.1), res=(20, 2, 2))
    material = trusty.StableNeoHookean(youngs_modulus=1e6, poisson_ratio=0.3)

    world = trusty.World(backend=backend, timestep=1.0 / 60.0)
    beam = trusty.fem.add_hex_solid(world, mesh, material, density=1000.0, order=order)
    trusty.fem.pin_face(world, beam, axis=0, coord=0.0)  # clamp the x = 0 end

    return world, beam


def _register_visuals(ps, world, beam, order):
    # Linear elements render as a hex volume mesh; quadratic elements render
    # via the linear sub-triangle tessellation of their curved surface.
    if order == ORDER.Linear:
        mesh = trusty.fem.read_mesh(world, beam)
        ps_mesh = ps.register_volume_mesh(
            "beam", np.asarray(mesh.vertices).copy(), hexes=np.asarray(mesh.hexes))
        ps_mesh.set_edge_width(1.0)
        read = lambda: np.asarray(trusty.fem.read_mesh(world, beam).vertices)
    else:
        V = np.asarray(trusty.fem.read_positions(world, beam)).copy()
        F = np.asarray(trusty.fem.read_surface_triangles(world, beam))
        ps_mesh = ps.register_surface_mesh("beam", V, F)
        read = lambda: np.asarray(trusty.fem.read_positions(world, beam))
    return ps_mesh, read


def run_polyscope(world, beam, steps: int, order):
    ps = init_polyscope(headless=False)
    ps_mesh, read_verts = _register_visuals(ps, world, beam, order)

    state = {"i": 0, "playing": True}

    def callback():
        import polyscope.imgui as psim
        _, state["playing"] = psim.Checkbox("play", state["playing"])
        psim.SameLine()
        if psim.Button("step") or state["playing"]:
            if state["i"] < steps:
                world.step()
                state["i"] += 1
                ps_mesh.update_vertex_positions(read_verts())
        psim.Text(f"step {state['i']} / {steps}")
        report = world.last_report()
        psim.Text(
            f"last solve: iters={report.iterations}  "
            f"residual={report.final_residual:.3e}  "
            f"{'converged' if report.converged else 'DIVERGED'}"
        )

    ps.set_user_callback(callback)
    ps.show()


def run_screenshots(world, beam, steps: int, out_dir: Path, order):
    ps = init_polyscope(headless=True)
    out_dir.mkdir(parents=True, exist_ok=True)
    ps_mesh, read_verts = _register_visuals(ps, world, beam, order)
    ps.reset_camera_to_home_view()

    def snapshot(idx: int):
        ps.screenshot(str(out_dir / f"beam_{idx:04d}.png"), transparent_bg=False)

    snapshot(0)
    for i in range(1, steps + 1):
        world.step()
        ps_mesh.update_vertex_positions(read_verts())
        snapshot(i)

    report = world.last_report()
    print(f"Wrote {steps + 1} screenshots to {out_dir}/")
    print(f"Last solve: iters={report.iterations}  "
          f"residual={report.final_residual:.3e}  "
          f"{'converged' if report.converged else 'DIVERGED'}")


def main():
    parser = argparse.ArgumentParser(description=__doc__.split("\n")[0])
    parser.add_argument("--backend",
                        choices=["auto", "cpu", "cuda", "accelerate"], default="auto")
    parser.add_argument("--order", choices=list(HEX_ORDERS), default="linear",
                        help="element order: q1 linear (default), q2 Lagrange, q2s serendipity")
    parser.add_argument("--steps", type=int, default=120,
                        help="total simulation steps (default: 120 = 2 s at 1/60)")
    parser.add_argument("--no-viewer", action="store_true",
                        help="headless: write PNG screenshots instead of showing polyscope")
    parser.add_argument("--out", type=Path, default=Path("out"),
                        help="output directory for --no-viewer mode")
    args = parser.parse_args()

    order = HEX_ORDERS[args.order]
    world, beam = build_world(backend=args.backend, order=order)

    if args.no_viewer:
        run_screenshots(world, beam, args.steps, args.out, order)
    else:
        run_polyscope(world, beam, args.steps, order)


if __name__ == "__main__":
    main()

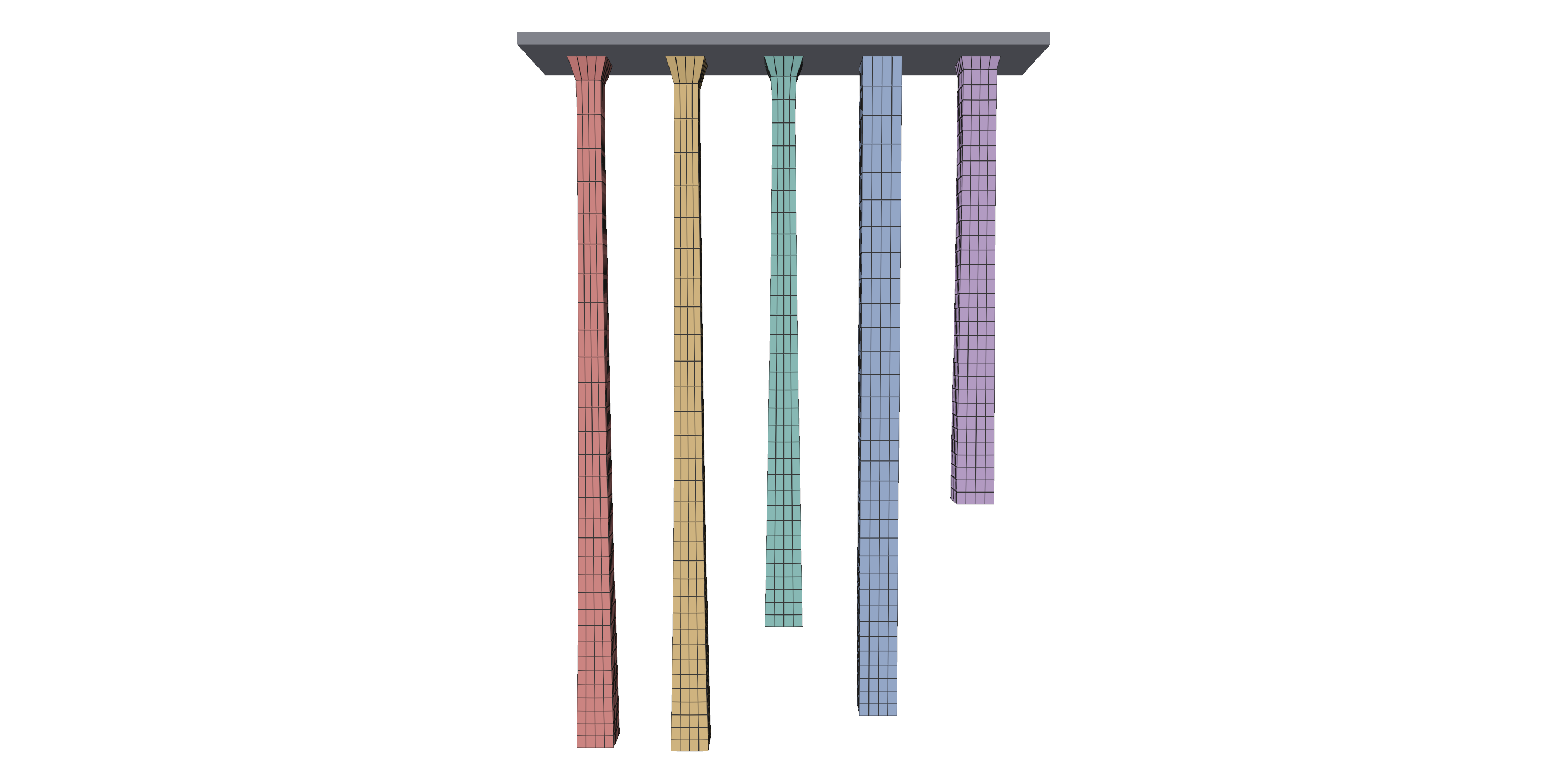

"""One hanging column per material model, stretching under its own weight.

Five soft columns (E = 10 kPa, nu = 0.45) share a mesh and density and hang
from their top faces. At these large strains the models part ways:
``StableFung`` stiffens as it stretches and stays shortest, ``Corotational``
is next, and the neo-Hookean family (``StableNeoHookean``, ``NeohookeanBW``)
and ``ARAP`` stretch furthest. A timestep of 1 s with the velocity zeroed after
every step moves each column straight to its hanging equilibrium, so
``--steps 10`` is already settled.

Usage:
    python examples/fem/hanging_materials.py              # live polyscope
    python examples/fem/hanging_materials.py --no-viewer  # print lengths
"""

from __future__ import annotations

import argparse
import sys
from pathlib import Path

import numpy as np

import trusty

sys.path.insert(0, str(Path(__file__).resolve().parent.parent))
from utils import init_polyscope  # noqa: E402

E, NU = 1e4, 0.45       # soft, so the columns stretch visibly
LENGTH = 1.0            # rest length (m); the columns hang from z = LENGTH
SPACING = 0.25          # x offset between columns (m)
COLORS = [(0.94, 0.33, 0.31), (0.98, 0.70, 0.30), (0.35, 0.75, 0.70),
          (0.45, 0.60, 0.90), (0.70, 0.50, 0.85)]


def make_materials():
    return {
        "StableNeoHookean": trusty.StableNeoHookean(youngs_modulus=E, poisson_ratio=NU),
        "NeohookeanBW":     trusty.NeohookeanBW(youngs_modulus=E, poisson_ratio=NU),
        "Corotational":     trusty.Corotational(youngs_modulus=E, poisson_ratio=NU),
        "ARAP":             trusty.ARAP(youngs_modulus=E, poisson_ratio=NU),
        "StableFung":       trusty.StableFung(youngs_modulus=E, poisson_ratio=NU,
                                              mu1=2e3, gamma=4.0),
    }


def build_world(backend: str = "auto"):
    world = trusty.World(backend=backend,
                         timestep=1.0,                  # large steps with no carried-over
                         time_stepping="quasi_static")  # velocity: each one heads for equilibrium

    columns = {}
    for k, (name, material) in enumerate(make_materials().items()):
        mesh = trusty.make_beam_hex_mesh(size=(0.1, 0.1, LENGTH), res=(4, 4, 32))
        mesh = trusty.transform_mesh(mesh, t=(SPACING * k, 0.0, 0.0))
        body = trusty.fem.add_hex_solid(world, mesh, material, density=1000.0)
        trusty.fem.pin_face(world, body, axis=2, coord=LENGTH)  # hang from the top
        columns[name] = body
    return world, columns


def hanging_length(world, body) -> float:
    z = np.asarray(trusty.fem.read_positions(world, body))[:, 2]
    return float(LENGTH - z.min())


def run_viewer(world, columns, steps: int):
    ps = init_polyscope(headless=False)
    meshes = {}
    for k, (name, body) in enumerate(columns.items()):
        m = ps.register_surface_mesh(name, trusty.fem.read_positions(world, body),
                                     trusty.fem.read_surface_triangles(world, body))
        m.set_color(COLORS[k])
        meshes[name] = (m, body)
    ps.reset_camera_to_home_view()

    state = {"i": 0, "playing": False}

    def callback():
        import polyscope.imgui as psim
        _, state["playing"] = psim.Checkbox("play", state["playing"])
        psim.SameLine()
        if (psim.Button("step") or state["playing"]) and state["i"] < steps:
            world.step()
            state["i"] += 1
            for m, body in meshes.values():
                m.update_vertex_positions(trusty.fem.read_positions(world, body))
        psim.Text(f"step {state['i']} / {steps}")
        for name, (_, body) in meshes.items():
            psim.Text(f"{name:<17} {hanging_length(world, body):.3f} m")

    ps.set_user_callback(callback)
    ps.show()


def main():
    ap = argparse.ArgumentParser(description=__doc__.split("\n")[0])
    ap.add_argument("--steps", type=int, default=10)
    ap.add_argument("--backend", default="auto", choices=["auto", "cpu", "accelerate", "cuda"])
    ap.add_argument("--no-viewer", action="store_true",
                    help="headless: print each column's hanging length")
    args = ap.parse_args()

    world, columns = build_world(args.backend)
    if args.no_viewer:
        for _ in range(args.steps):
            world.step()
        print(f"hanging length after {args.steps} steps (rest length {LENGTH} m)")
        for name, body in columns.items():
            print(f"  {name:<17} {hanging_length(world, body):.3f} m")
        return
    run_viewer(world, columns, args.steps)


if __name__ == "__main__":
    main()

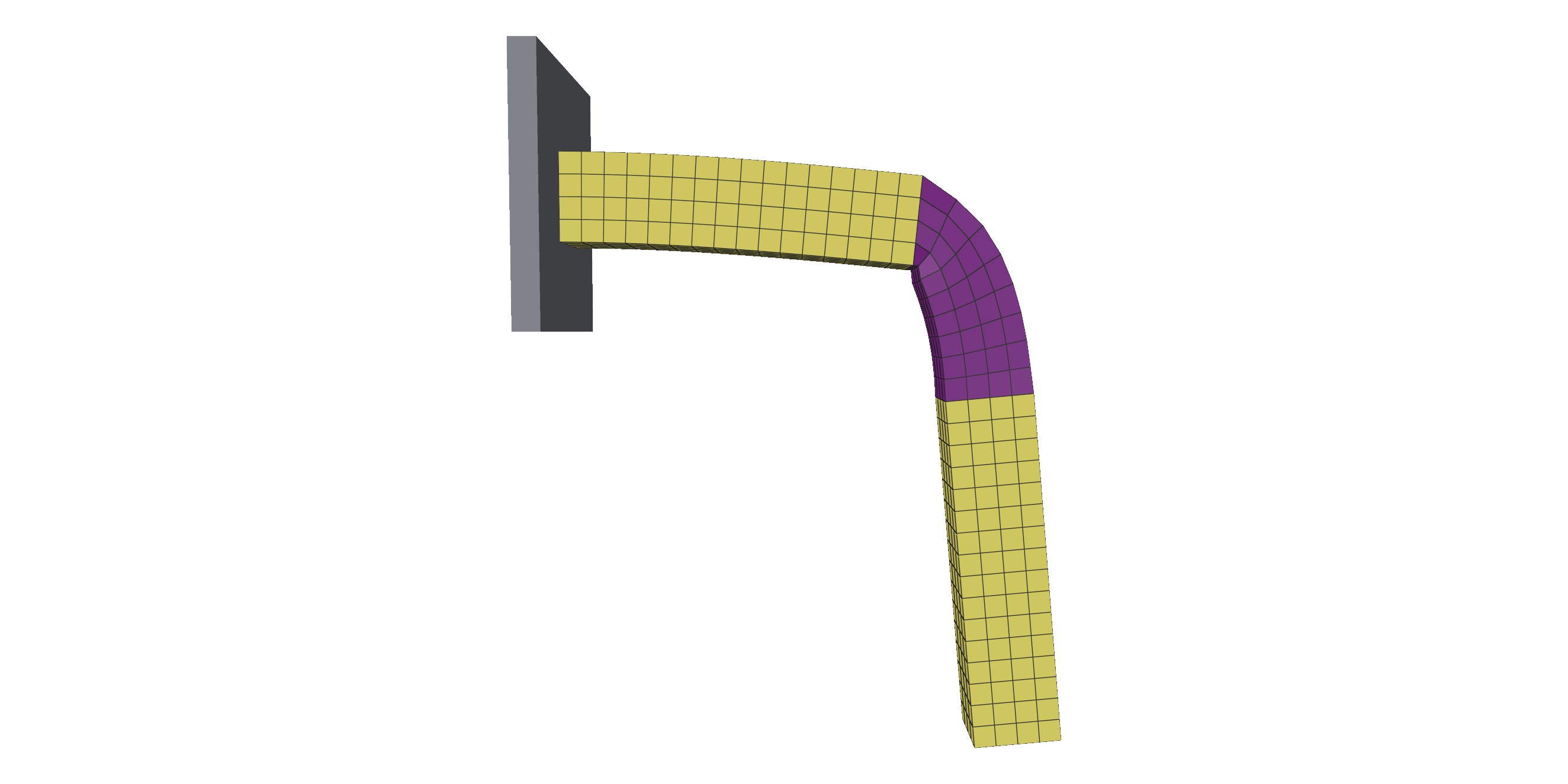

"""One beam whose stiffness varies along its length: a soft band as a hinge.

A cantilever is stiff (E = 10 MPa) everywhere except a soft band (E = 50 kPa)
in the middle, authored as a ``LameParamsGrid`` over the beam's rest space
rather than as two bodies. Under gravity the stiff halves stay straight and the
beam folds at the band. The viewer colours each element by the Young's modulus
it was given. ``graded_material.py`` compares several grids side by side,
including what happens when the grid does not cover the body.

Usage:
    python examples/fem/graded_beam.py              # live polyscope
    python examples/fem/graded_beam.py --no-viewer  # print the sag
"""

from __future__ import annotations

import argparse
import sys
from pathlib import Path

import numpy as np

import trusty

sys.path.insert(0, str(Path(__file__).resolve().parent.parent))
from utils import init_polyscope  # noqa: E402

LENGTH = 1.0
NU = 0.3
VOXELS = 20             # grid cells along the beam


def youngs_along_beam():
    """Young's modulus per grid cell: stiff, with a soft band in the middle."""
    E = np.full(VOXELS, 1e7)
    E[8:12] = 5e4
    return E


def graded_material():
    E = youngs_along_beam()                     # one value per cell along x
    pairs = [trusty.LameParams.from_young_poisson(e, NU) for e in E]
    grid = trusty.LameParamsGrid(
        origin=(0.0, 0.0, 0.0),                 # the beam's rest-space corner
        spacing=(LENGTH / VOXELS, 1.0, 1.0),    # VOXELS cells along x, 1 across
        interpolation=trusty.GridInterpolation.Nearest,
        mu=np.array([p.mu for p in pairs]).reshape(VOXELS, 1, 1),
        lam=np.array([p.lam for p in pairs]).reshape(VOXELS, 1, 1),
    )
    material = trusty.StableNeoHookean(field=grid)
    return material


def build_world(backend: str = "auto"):
    world = trusty.World(backend=backend,
                         time_stepping="static",   # solve equilibrium each step
                         newton=trusty.NewtonConfig(max_iters=60))

    mesh = trusty.make_beam_hex_mesh(size=(LENGTH, 0.1, 0.1), res=(40, 4, 4))
    beam = trusty.fem.add_hex_solid(world, mesh, graded_material(), density=1000.0)
    trusty.fem.pin_face(world, beam, axis=0, coord=0.0)
    return world, beam, mesh


def element_youngs(mesh):
    """The modulus each hex runs: the grid cell (nearest) under its centre."""
    centres_x = np.asarray(mesh.vertices)[np.asarray(mesh.hexes), 0].mean(axis=1)
    cell = np.clip((centres_x / (LENGTH / VOXELS)).astype(int), 0, VOXELS - 1)
    return youngs_along_beam()[cell]


def tip_sag(world, beam) -> float:
    return float(-np.asarray(trusty.fem.read_positions(world, beam))[:, 2].min())


def run_viewer(world, beam, mesh, steps: int):
    ps = init_polyscope(headless=False)
    m = ps.register_volume_mesh("beam", trusty.fem.read_positions(world, beam),
                                hexes=np.asarray(mesh.hexes))
    m.set_edge_width(1.0)
    m.add_scalar_quantity("log10 Young's modulus", np.log10(element_youngs(mesh)),
                          defined_on="cells", cmap="viridis", enabled=True)
    ps.reset_camera_to_home_view()

    state = {"i": 0, "playing": False}

    def callback():
        import polyscope.imgui as psim
        _, state["playing"] = psim.Checkbox("play", state["playing"])
        psim.SameLine()
        if (psim.Button("step") or state["playing"]) and state["i"] < steps:
            world.step()
            state["i"] += 1
            m.update_vertex_positions(trusty.fem.read_positions(world, beam))
        psim.Text(f"step {state['i']} / {steps}   tip sag {tip_sag(world, beam):.3f} m")

    ps.set_user_callback(callback)
    ps.show()


def main():
    ap = argparse.ArgumentParser(description=__doc__.split("\n")[0])
    ap.add_argument("--steps", type=int, default=5)
    ap.add_argument("--backend", default="auto", choices=["auto", "cpu", "accelerate", "cuda"])
    ap.add_argument("--no-viewer", action="store_true", help="headless: print the sag")
    args = ap.parse_args()

    world, beam, mesh = build_world(args.backend)
    if args.no_viewer:
        for _ in range(args.steps):
            world.step()
        report = world.last_report()
        print(f"tip sag after {args.steps} steps: {tip_sag(world, beam):.3f} m "
              f"({'converged' if report.converged else 'NOT converged'})")
        return
    run_viewer(world, beam, mesh, args.steps)


if __name__ == "__main__":
    main()

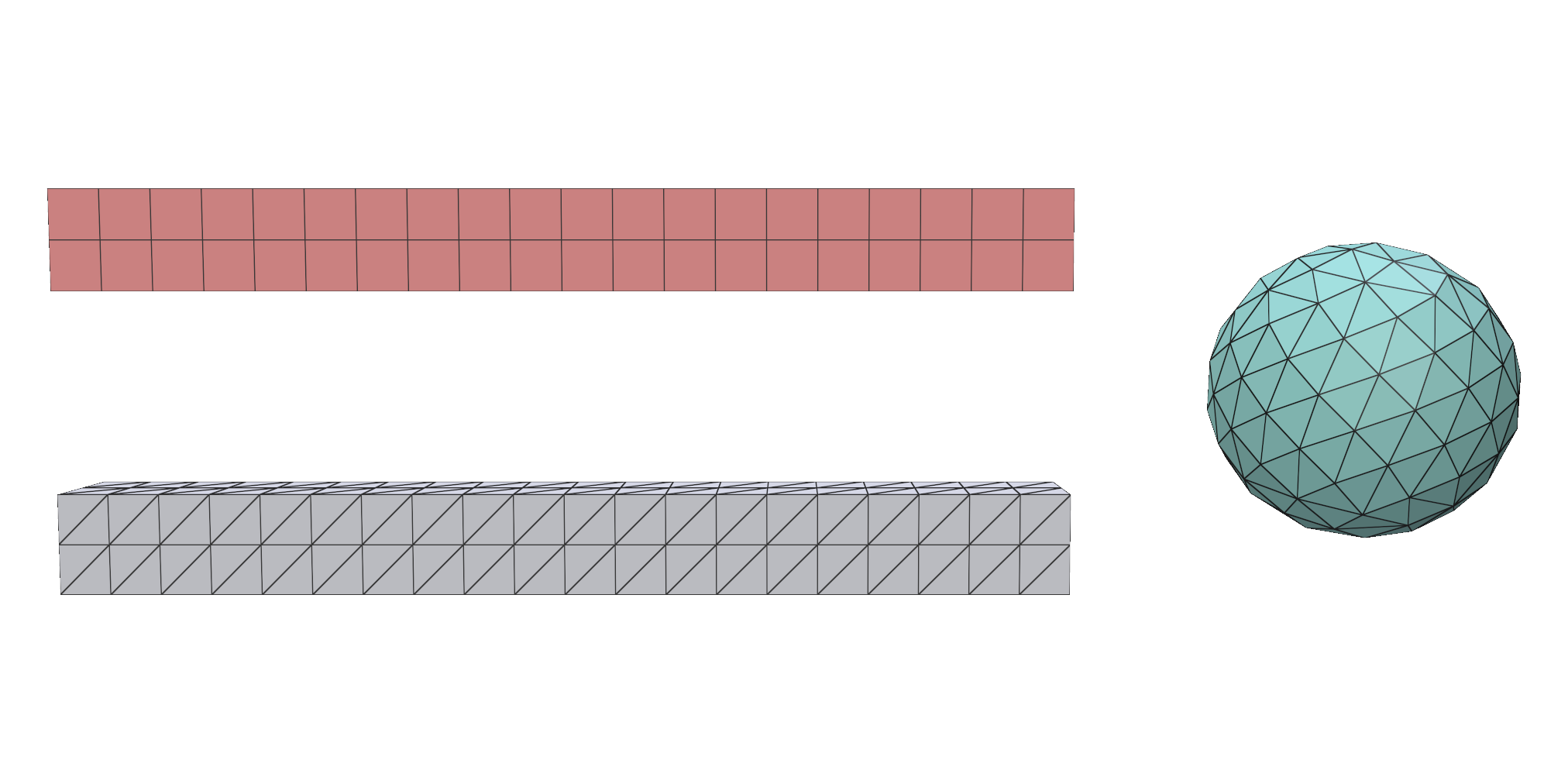

"""Hex and tet meshes: built-in beams, and a tet mesh loaded from a file.

Builds one world with a structured hex beam, a structured tet beam and a tet
ball read from ``data/ball.msh`` (Gmsh format 2.2), the way you would load your
own tetrahedralized geometry. Nothing is pinned, so stepping
lets all three fall under gravity.

Usage:
    python examples/fem/mesh_types.py                   # live polyscope
    python examples/fem/mesh_types.py --no-viewer       # print mesh sizes
    python examples/fem/mesh_types.py --mesh my.msh     # your own tet mesh
"""

from __future__ import annotations

import argparse
import sys
from pathlib import Path

import numpy as np

import trusty

sys.path.insert(0, str(Path(__file__).resolve().parent.parent))
from utils import init_polyscope  # noqa: E402

DATA = Path(__file__).resolve().parent.parent / "data"
COLORS = {"hex beam": (0.94, 0.33, 0.31), "tet beam": (0.78, 0.79, 0.84),
          "loaded mesh": (0.35, 0.75, 0.70)}


def build_world(mesh_path: Path = DATA / "ball.msh", backend: str = "auto"):
    # Structured beams, built in: (Lx, Ly, Lz) and elements per axis.
    hex_mesh = trusty.make_beam_hex_mesh(size=(1.0, 0.1, 0.1), res=(20, 2, 2))
    tet_mesh = trusty.make_beam_tet_mesh(size=(1.0, 0.1, 0.1), res=(20, 2, 2))

    # Your own tet mesh, from a Gmsh .msh file (format 2.2) ...
    loaded = trusty.read_tet_msh(str(mesh_path))
    # ... or from NumPy arrays, e.g. produced by TetGen, fTetWild or meshio.
    loaded = trusty.make_tet_mesh(loaded.vertices, loaded.tets)

    # Place each mesh before adding it: rotate with A, translate with t.
    tet_mesh = trusty.transform_mesh(tet_mesh, t=(0.0, 0.0, -0.3))
    loaded = trusty.transform_mesh(loaded, t=(1.3, 0.05, -0.1))

    world = trusty.World(backend=backend)
    material = trusty.StableNeoHookean(youngs_modulus=1e6, poisson_ratio=0.3)
    bodies = {
        "hex beam":    trusty.fem.add_hex_solid(world, hex_mesh, material, density=1000.0),
        "tet beam":    trusty.fem.add_tet_solid(world, tet_mesh, material, density=1000.0),
        "loaded mesh": trusty.fem.add_tet_solid(world, loaded, material, density=1000.0),
    }
    return world, bodies, {"hex beam": hex_mesh, "tet beam": tet_mesh,
                           "loaded mesh": loaded}


def run_viewer(world, bodies, meshes, steps: int):
    ps = init_polyscope(headless=False)
    shown = {}
    for name, body in bodies.items():
        mesh = meshes[name]
        cells = {"hexes": np.asarray(mesh.hexes)} if hasattr(mesh, "hexes") \
            else {"tets": np.asarray(mesh.tets)}
        m = ps.register_volume_mesh(name, trusty.fem.read_positions(world, body), **cells)
        m.set_color(COLORS[name])
        m.set_edge_width(1.0)
        shown[name] = (m, body)
    ps.reset_camera_to_home_view()

    state = {"i": 0, "playing": False}

    def callback():
        import polyscope.imgui as psim
        _, state["playing"] = psim.Checkbox("play (fall under gravity)", state["playing"])
        psim.SameLine()
        if (psim.Button("step") or state["playing"]) and state["i"] < steps:
            world.step()
            state["i"] += 1
            for m, body in shown.values():
                m.update_vertex_positions(trusty.fem.read_positions(world, body))
        psim.Text(f"step {state['i']} / {steps}")

    ps.set_user_callback(callback)
    ps.show()


def main():
    ap = argparse.ArgumentParser(description=__doc__.split("\n")[0])
    ap.add_argument("--mesh", type=Path, default=DATA / "ball.msh",
                    help="tet mesh to load (Gmsh .msh, format 2.2)")
    ap.add_argument("--steps", type=int, default=60)
    ap.add_argument("--backend", default="auto", choices=["auto", "cpu", "accelerate", "cuda"])
    ap.add_argument("--no-viewer", action="store_true",
                    help="headless: print each mesh's size")
    args = ap.parse_args()

    world, bodies, meshes = build_world(args.mesh, args.backend)
    if args.no_viewer:
        for name, mesh in meshes.items():
            print(f"{name:<12} {mesh.num_nodes:5d} nodes  {mesh.num_elems:5d} elements")
        return
    run_viewer(world, bodies, meshes, args.steps)


if __name__ == "__main__":
    main()

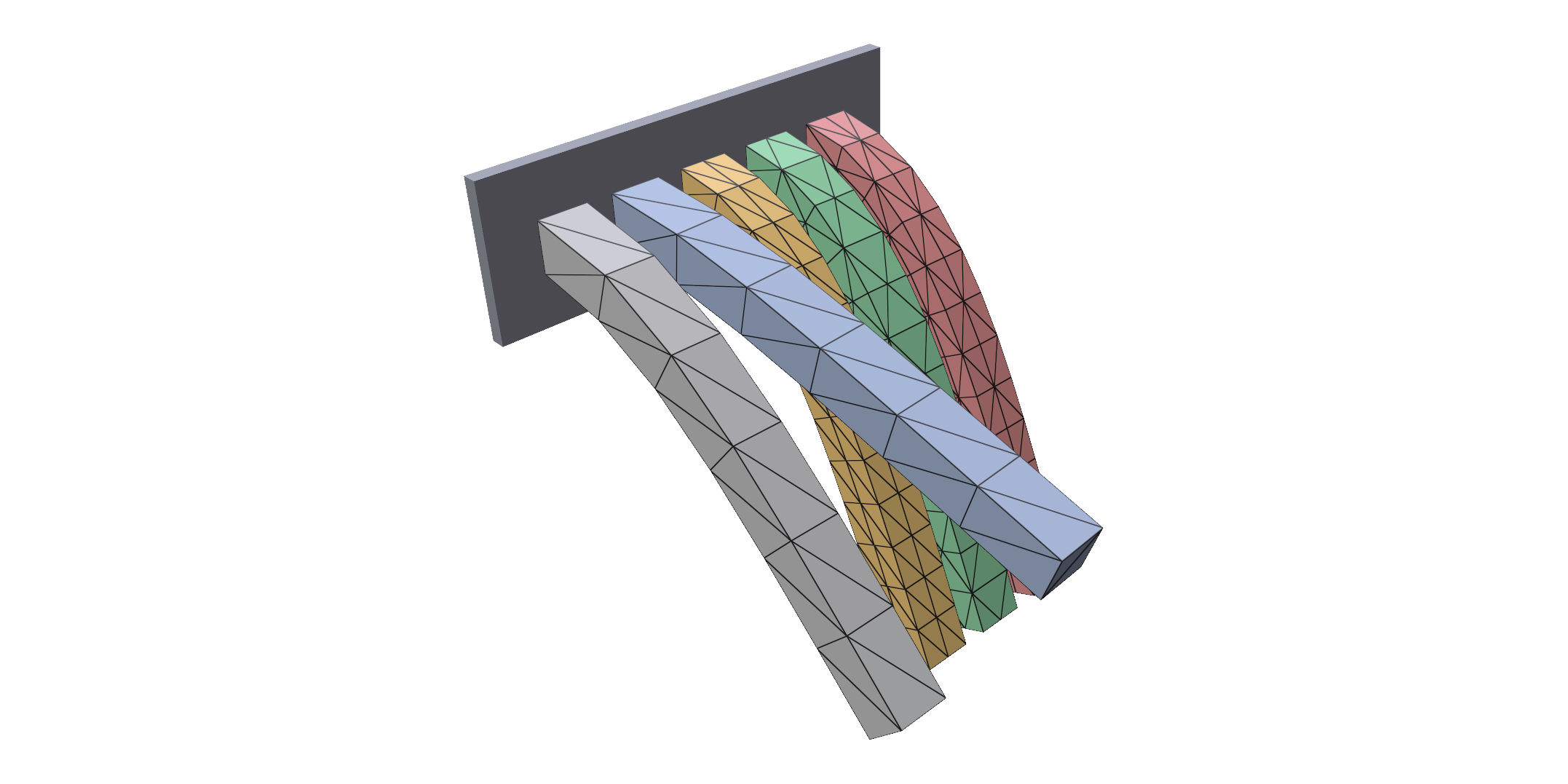

"""Higher-order (P2/Q2) FEM demo: quadratic elements resist bending locking.

Builds one world with a cantilever beam per element family, laid out side by
side, all pinned at x=0 and sagging under gravity. Linear Q1/P1 elements lock
(under-deflect) on a coarse mesh; the quadratic P2 tet and Q2 hexes bend much
more freely. Quadratic bodies are rendered via the same linear sub-triangle
tessellation of their curved surface that contact uses
(`fem.read_surface_triangles`).

Usage:
    python examples/bending_locking.py                # live polyscope
    python examples/bending_locking.py --no-viewer    # print comparison
    python examples/bending_locking.py --res 8 1 1    # finer corner mesh
"""

from __future__ import annotations

import argparse

import numpy as np

import trusty
from utils import init_polyscope

ORDER = trusty.fem.ElementOrder

# label -> (mesh kind, element order, color)
FAMILIES = {
    "hex_q1":             ("hex", ORDER.Linear,               (0.6, 0.6, 0.6)),
    "tet_p1":             ("tet", ORDER.Linear,               (0.4, 0.5, 0.7)),
    "tet_p2":             ("tet", ORDER.Quadratic,            (0.9, 0.6, 0.2)),
    "hex_q2_serendipity": ("hex", ORDER.QuadraticSerendipity, (0.3, 0.7, 0.4)),
    "hex_q2":             ("hex", ORDER.Quadratic,            (0.8, 0.3, 0.3)),
}


def add_body(world, kind, order, mesh, material, density):
    if kind == "hex":
        return trusty.fem.add_hex_solid(world, mesh, material, density, order=order)
    return trusty.fem.add_tet_solid(world, mesh, material, density, order=order)


def build_world(size, res, backend="auto"):
    material = trusty.StableNeoHookean(youngs_modulus=1e6, poisson_ratio=0.3)
    spacing = 1.5 * size[1]

    world = trusty.World(backend=backend,
                         timestep=1.0 / 30.0,
                         time_stepping="quasi_static",
                         newton=trusty.NewtonConfig(tolerance=1e-5))
    bodies = {}
    for k, (family, (kind, order, _)) in enumerate(FAMILIES.items()):
        mesh = (trusty.make_beam_hex_mesh(size=size, res=res) if kind == "hex"
                else trusty.make_beam_tet_mesh(size=size, res=res))
        # Shift in +y only, so the x=0 pin still lands on the fixed face.
        mesh = trusty.transform_mesh(mesh, t=(0.0, k * spacing, 0.0))
        body = add_body(world, kind, order, mesh, material, 1000.0)
        trusty.fem.pin_face(world, body, axis=0, coord=0.0)
        bodies[family] = body

    return world, bodies


def tip_deflection(world, body):
    verts = np.asarray(trusty.fem.read_positions(world, body))
    tip = verts[:, 0] > verts[:, 0].max() - 1e-3
    return float(-verts[tip, 2].max())  # downward deflection (+ = down)


def main():
    parser = argparse.ArgumentParser(description=__doc__.split("\n")[0])
    parser.add_argument("--res", type=int, nargs=3, default=[6, 1, 1])
    parser.add_argument("--steps", type=int, default=200)
    parser.add_argument("--backend", choices=["auto", "cpu", "accelerate", "cuda"], default="auto")
    parser.add_argument("--no-viewer", action="store_true",
                        help="headless: print the tip-deflection comparison instead of polyscope")
    args = parser.parse_args()

    size = (1.0, 0.1, 0.1)
    world, bodies = build_world(size, tuple(args.res), args.backend)

    if args.no_viewer:
        for _ in range(args.steps):
            world.step()
        print(f"Cantilever {size} at corner res {tuple(args.res)}, {args.steps} steps")
        print(f"{'family':<20} {'nodes':>7} {'tip deflection (m)':>20}")
        for family, body in bodies.items():
            n = np.asarray(trusty.fem.read_positions(world, body)).shape[0]
            print(f"{family:<20} {n:>7} {tip_deflection(world, body):>20.5e}")
        return

    run_viewer(world, bodies, args.steps)


def run_viewer(world, bodies, steps):
    ps = init_polyscope(headless=False)
    meshes = {}
    for family, body in bodies.items():
        V = np.asarray(trusty.fem.read_positions(world, body)).copy()
        F = np.asarray(trusty.fem.read_surface_triangles(world, body))
        m = ps.register_surface_mesh(family, V, F)
        m.set_color(FAMILIES[family][2])
        meshes[family] = (m, body)
    ps.reset_camera_to_home_view()

    state = {"i": 0, "playing": False}

    def callback():
        import polyscope.imgui as psim
        _, state["playing"] = psim.Checkbox("play", state["playing"])
        psim.SameLine()
        if (psim.Button("step") or state["playing"]) and state["i"] < steps:
            world.step()
            state["i"] += 1
            for _family, (m, body) in meshes.items():
                m.update_vertex_positions(np.asarray(trusty.fem.read_positions(world, body)))
        psim.Text(f"step {state['i']} / {steps}")
        report = world.last_report()
        psim.Text(f"last solve: iters={report.iterations}  "
                  f"residual={report.final_residual:.3e}  "
                  f"{'converged' if report.converged else 'DIVERGED'}")

    ps.set_user_callback(callback)
    ps.show()


if __name__ == "__main__":
    main()

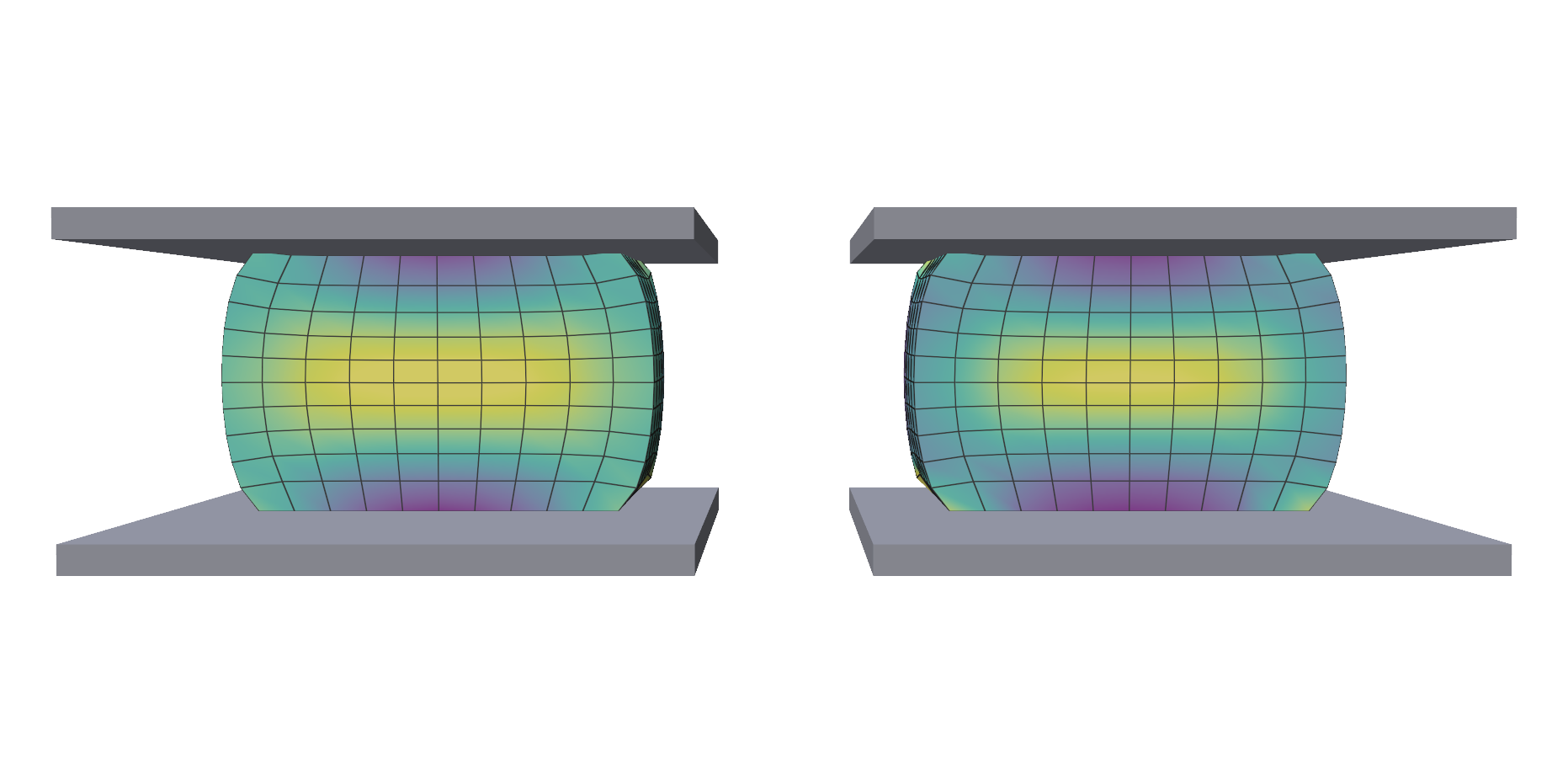

"""Von Mises vs strain energy density on a block squeezed between two plates.

A soft, nearly incompressible block (E = 500 kPa, nu = 0.45) is clamped at its
bottom face and its top face is pushed down 30% by a moving pin. The clamped
faces cannot spread sideways, so the block bulges at mid-height and the stress
varies through it: highest in the bulging middle band, lowest under the plate
centres, where the material is squeezed almost equally from every side. The
two readouts measure different things:

  * **von Mises** is *deviatoric*: it discards the hydrostatic (pressure) part
    of the stress. It is the measure for yielding and failure.
  * **strain energy density** includes the volumetric term, so it also counts
    how hard the material is being squeezed.

Both take `nodal=` (True: a smooth per-node field; False: raw per-element
values) and `unit_material=` (evaluate at mu = lam = 1, a stiffness-independent
strain measure, so soft and stiff regions are directly comparable).

Usage:
    python examples/fem/visualize_stress.py              # live polyscope
    python examples/fem/visualize_stress.py --no-viewer  # print ranges
    python examples/fem/visualize_stress.py --squeeze 0.4
"""

from __future__ import annotations

import argparse
import sys
from pathlib import Path

import numpy as np

import trusty

sys.path.insert(0, str(Path(__file__).resolve().parent.parent))
from utils import init_polyscope  # noqa: E402

SIZE = 0.2                      # block edge (m)
RES = 10                        # hexes per edge
E, NU = 5.0e5, 0.45             # soft and nearly incompressible
PLATE_STIFFNESS = 1e10          # Pa; stiff enough to act as a rigid plate

FIELDS = ("von Mises (Pa)", "strain energy (J/m^3)",
          "von Mises (unit material)", "strain energy (unit material)")


def read_fields(world, body):
    """Every combination the two readouts offer, for one body."""
    vm, psi = trusty.fem.read_von_mises, trusty.fem.read_strain_energy_density
    return {
        FIELDS[0]: np.asarray(vm(world, body, nodal=True)),
        FIELDS[1]: np.asarray(psi(world, body, nodal=True)),
        FIELDS[2]: np.asarray(vm(world, body, nodal=True, unit_material=True)),
        FIELDS[3]: np.asarray(psi(world, body, nodal=True, unit_material=True)),
    }


class Press:
    """The block and the moving top plate that squeezes it."""

    def __init__(self, backend: str = "auto"):
        self.world = trusty.World(backend=backend,
                                  time_stepping="static",   # solve equilibrium each step
                                  gravity=(0.0, 0.0, 0.0),  # the plates are the only load
                                  newton=trusty.NewtonConfig(max_iters=60))

        mesh = trusty.make_beam_hex_mesh(size=(SIZE, SIZE, SIZE), res=(RES, RES, RES))
        self.mesh = mesh
        material = trusty.StableNeoHookean(youngs_modulus=E, poisson_ratio=NU)
        self.body = trusty.fem.add_hex_solid(self.world, mesh, material, density=1000.0)

        # Bottom face clamped; top face held by a pin whose targets move down.
        trusty.fem.pin_face(self.world, self.body, axis=2, coord=0.0)
        rest = np.asarray(mesh.vertices)
        self.top = np.flatnonzero(np.abs(rest[:, 2] - SIZE) < 1e-9)
        self.top_rest = rest[self.top].copy()
        self.pin = trusty.boundary_conditions.pin_to_target(
            self.world, self.body, self.top.tolist(), self.top_rest, PLATE_STIFFNESS)

    def squeeze_to(self, fraction: float):
        """Move the top plate down to `fraction` of the height and solve."""
        targets = self.top_rest.copy()
        targets[:, 2] -= fraction * SIZE
        trusty.boundary_conditions.set_pin_targets(self.world, self.pin, targets)
        self.world.step()

    def squeeze(self, fraction: float, steps: int):
        """Reach `fraction` in `steps` equal increments."""
        for k in range(1, steps + 1):
            self.squeeze_to(fraction * k / steps)


def report(press):
    width = max(len(f) for f in FIELDS)
    x = np.asarray(trusty.fem.read_positions(press.world, press.body))
    print(f"height {x[press.top, 2].mean():.3f} m (rest {SIZE} m), "
          f"width {x[:, 0].max() - x[:, 0].min():.3f} m (rest {SIZE} m)")
    for name, values in read_fields(press.world, press.body).items():
        print(f"  {name:<{width}}  min={values.min():10.4g}  max={values.max():10.4g}")


def run_viewer(press, fraction: float, steps: int):
    ps = init_polyscope(headless=False)
    m = ps.register_volume_mesh(
        "block", trusty.fem.read_positions(press.world, press.body),
        hexes=np.asarray(press.mesh.hexes))
    m.set_edge_width(1.0)

    def refresh():
        m.update_vertex_positions(trusty.fem.read_positions(press.world, press.body))
        for name, values in read_fields(press.world, press.body).items():
            m.add_scalar_quantity(name, values, defined_on="vertices",
                                  cmap="viridis", enabled=(name == FIELDS[0]))

    state = {"i": 0, "playing": False}
    refresh()
    ps.reset_camera_to_home_view()

    def callback():
        import polyscope.imgui as psim
        _, state["playing"] = psim.Checkbox("play (squeeze)", state["playing"])
        psim.SameLine()
        if (psim.Button("step") or state["playing"]) and state["i"] < steps:
            state["i"] += 1
            press.squeeze_to(fraction * state["i"] / steps)
            refresh()
        psim.Text(f"squeeze {100 * fraction * state['i'] / steps:.0f}% "
                  f"(step {state['i']} / {steps})")
        psim.Text("Switch fields under the block's Scalar Quantities.")

    ps.set_user_callback(callback)
    ps.show()


def main():
    ap = argparse.ArgumentParser(description=__doc__.split("\n")[0])
    ap.add_argument("--squeeze", type=float, default=0.3,
                    help="fraction of the height the top plate moves down")
    ap.add_argument("--steps", type=int, default=10,
                    help="load increments to reach the full squeeze")
    ap.add_argument("--backend", default="auto", choices=["auto", "cpu", "accelerate", "cuda"])
    ap.add_argument("--no-viewer", action="store_true",
                    help="headless: squeeze fully, then print the field ranges")
    args = ap.parse_args()

    press = Press(args.backend)
    if args.no_viewer:
        press.squeeze(args.squeeze, args.steps)
        report(press)
        return
    run_viewer(press, args.squeeze, args.steps)


if __name__ == "__main__":
    main()
